安沃驰单向阀5340981100，德国安沃驰AVENTICS单向阀、止回阀。上海韦米机电设备有限公司供应产品，原厂原装，价格优惠，长期供应，值得信赖；
安沃驰AVENTICS单向阀, 系列 NR01-5340981100
结构形式 线路安装
阀门结构形式 提动阀
外壳 黄铜
密封件材料 丙烯树胶
Qn 1-2 1050 l/min
压缩空气连接 G 1/4
压缩空气接口 2 G 1/4
压缩空气接口 2 型号 内螺纹
压缩空气接口型号 内螺纹
结构特点 提动阀
工作压力范围 0.5 ... 15 bar
低 / 高环境温度 -10 ... 60 °C
介质温度范围 -10 ... 60 °C
介质 压缩空气
重量 0.168kg
流量控制阀
在气动系统中，经常要求控制气动执行元件的运动速度，这要靠调节压缩空气的流量来实现。用来控制气体流量的阀，称为流量控制阀。流量控阀是通过改变阀的通流截面积来实现流量控制的元件，它包括节流阀、单向节流阀、排气节流阀等。
1.节流阀
节流阀是将空气的流通截面缩小以增加气体的流通阻力，而降低气体的压力和流量。阀体上有一个调整螺丝，可以调节流阀的开口度（无级调节），并可保持其开口度不变，此类阀称为可调节开口截流阀。流通截面固定的节流阀，称为固定开口节流阀。
可调节流阀常用于调节气缸活塞运动速度，若有可能，应直接安装在气缸上。这种节流阀有双向节流作用。使用节流阀时，节流面积不宜太小，因空气中的冷凝水、尘埃等塞满阻流口通路会引起节流量的变化。
1.节流阀
节流阀常用的孔口结构：平板阀、针阀、球阀
2.单向节流阀：单向节流阀是由单向阀和节流阀组合而成，常用于控制气缸的运动速度，也称为速度控制阀。
当气流从1口进入，单向阀被顶在阀座上，空气只能从节流口流向出口2，流量被节流阀节流口的大小所限制，调节螺钉可以调节节流面积。当空气从2口进入时，推开单向阀自由流到1口，不受节流阀限制。
2.单向节流阀：
利用单向节流阀控制气缸的速度方式有进气节流和排气节流两种方式。
进气节流控制，它是控制进入气缸的流量以调节活塞的运动速度。采用这种控制方式，如活塞杆上的负荷有轻微变化，将导致气缸速度的明显变化。因此速度稳定性差，仅用于单作用气缸、小型气缸或短行程气缸的速度控制。
排气节流控制，它是控制气缸排气量的大小，而进气是满流的。这种控制方式能为气缸提供背压来限制速度，故速度稳定性好，常用于双作用气缸的速度控制。单向节流阀用于气动执行元件的速度调节时应尽可能直接安装在气缸上。
一般情况下，单向节流阀的流量调节范围为管道流量的20%～30%。对于要求能在较宽范围里进行速度控制的场合，可采用单向阀开度可调的速度控制阀。
3.排气节流阀
排气节流阀的节流原理和节流阀一样，也是靠调节通流面积来调节阀的流量的。它们的区别是，节流阀通常是安装在系统中调节气流的流量，而排气节流阀只能安装在排气口处，调节排入大气的流量，以此来调节执行机构的运动速度。排气节流阀的工作原理图，气流从A口进入阀内，由节流口1节流后经消声套2排出。因而它不仅能调节执行元件的运动速度，还能起到降低排气噪声的作用。
排气节流阀通常安装在换向阀的排气口处，与换向阀联用，起单向节流阀的作用。它实际上只不过是节流阀的一种特殊形式。由于其结构简单，安装方便，能简化回路，

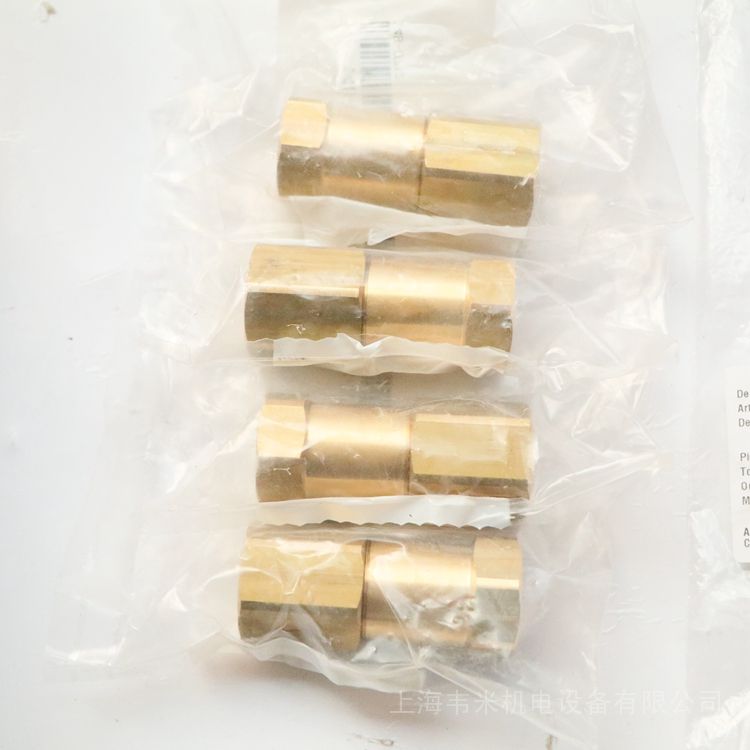

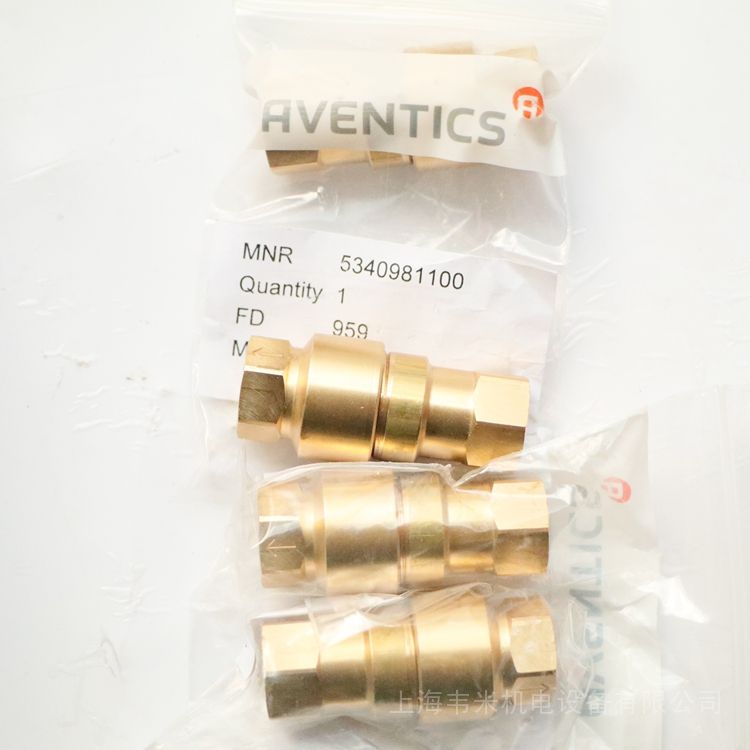

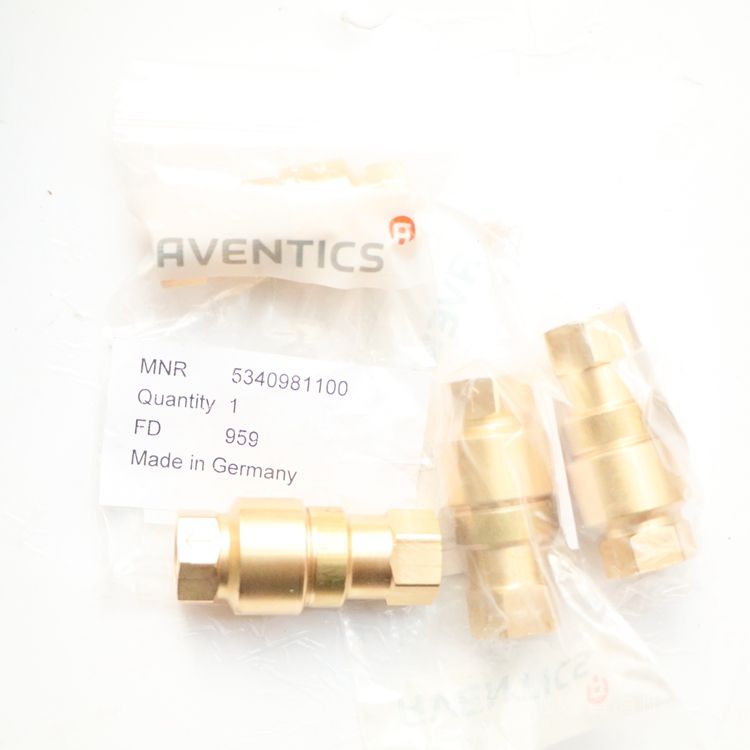

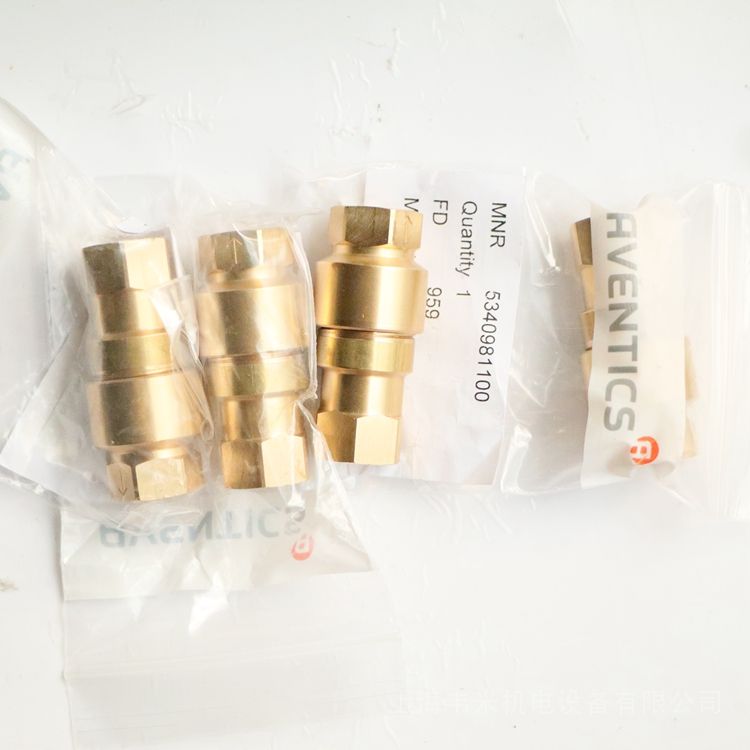

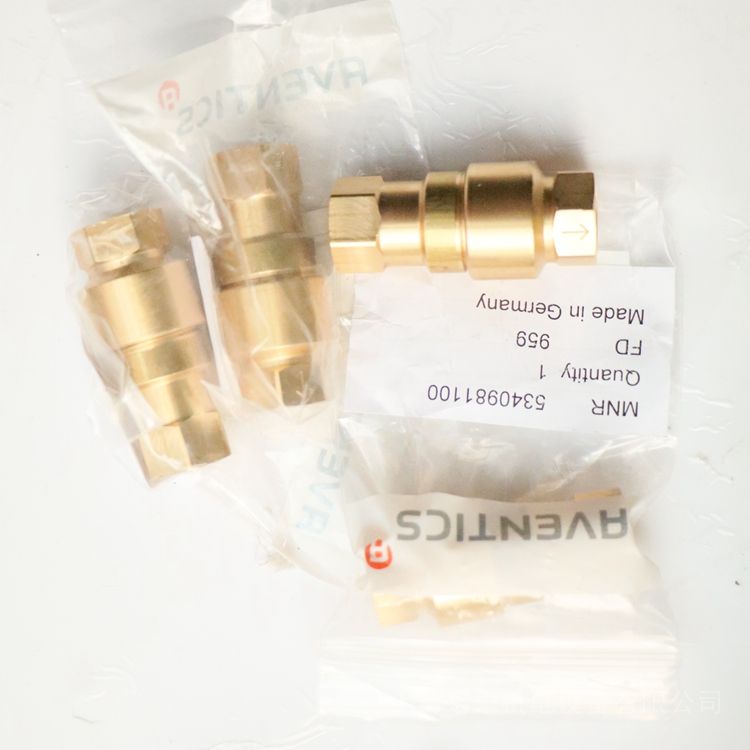

安沃驰单向阀5340981100
安沃驰AVENTICS单向阀订货号和型号：
5340050002 ERSATZTEILP??CKCHEN
5340050010 NON-RETURN VALVE ZZ99-G018-G018
5340051000 NON-RETURN VALVE ZZ99-G014-G014
5340051010 NON-RETURN VALVE ZZ99-G014-G014
5340053000 NON-RETURN VALVE ZZ99-G012-G012
5340170000 SELECTEUR-DE-CIRCUIT-M14X1.5-CHELLES
5340170090 SELECTEUR-DE-CIRCUIT-SANS-LAMAGE-CHELLES
5340170100 SELECTEUR-DE-CIRCUIT-1/4"-CHELLES
5340970300 CLAPET ANTI-RETOUR .
5340970400 NON-RETURN VALVE ZZ99-G114-G114
5340970500 NON-RETURN VALVE ZZ99-G112-G112
5340970600 NON-RETURN VALVE ZZ99-G200-G200
5340981000 NON-RETURN VALVE ZZ99-G018-G018
5340981100 NON-RETURN VALVE ZZ99-G014-G014
5340981200 NON-RETURN VALVE ZZ99-G038-G038
5340981300 NON-RETURN VALVE ZZ99-G012-G012
5340981400 NON-RETURN VALVE ZZ99-G034-G034
5341050000 FLOW-CONTROL VALVE ZZ99-M005-M005
5341060000 FLOW-CONTROL VALVE ZZ99-M010-M010
5341060002 SPARE PART KIT .
5341061000 FLOW-CONTROL VALVE ZZ99-G018-G018
5341080000 THROTTLE CHECK VLV NW7-M14X1,5
5341081000 FLOW-CONTROL VALVE ZZ99-G014-G014
5341120000 THROTTLE VALVE ZZ99-M005-M005
5341121100 THROTTLE VALVE ZZ99-G018-G018
5341122100 THROTTLE VALVE ZZ99-G014-G014
5341123100 THROTTLE VALVE ZZ99-G038-G038
5341124100 THROTTLE VALVE ZZ99-G012-G012
5341200000 ZZ99-G018-DI04
5341200100 THROTTLE CHECK VLV ZZ99-G014-DI04
5341200200 ZZ99-DI04-G018
5341200600 ZZ99-DI04-DI04
5341210000 ZZ99-DI06-DI06
5341210300 ZZ99-G014-DI06
5341300000 THROTTLE CHECK VLV NW4-PLUG
5342000000 SHUTTLE VALVE NW2 M5
5342010100 FLOW-CONTROL VALVE NW4 G1/8
5342010200 SHUTTLE VALVE NW4 Q6X1
5342100000 SHUTTLE VALVE NW2 FUER ROHR 5X1
5342100010 SHUTTLE VALVE NW2-PUSH-IN-4X1
5342101000 SHUTTLE VALVE NW2 (100 STUECK)
5349000000 MEDIUMSPERRE
5349000002 SPARE PART KIT .
5351002312 VERTEILER C4I 2CONNECTORS
5351006022 FLANSCH (PAARWEISE) C4I, G3/8
5351026002 CLAMPING-FLANGE C15 G1/4 (PAIRS)
5351286000 FIL. D48 1"
5351840010 MAINTENANCE UNIT NL2, G1/4
5351840170 MAINTENANCE UNIT NL2, G1/4
5351840440 MAINTENANCE UNIT NL2, G1/4
5352600000 KUGELHAHN C4I, O.GEW.FLANSCHE
5420309220 SOLENOID-OPERATED .
5420309420 MAGNET .
5420457904 OPERATION .
5420500002 SPARE PART KIT .
5420500020 PILOT VALVE 24VDC
5420500220 PILOT VALVE 24VDC
5420507012 CO1-FORM_A-012DC-2,1W-30MM
5420507022 CO1-FORM_A-024DC-2,1W-30MM
5420507032 CO1-FORM_A-048DC-2,2W-30
5420507072 SOLENOID COIL 110VDC
5420507082 SPULE 220V=
5420507152 SPULE 75 VDC
5420523422 COIL 24VDC FORM A -CSA-UL
5420527022 COIL 24VDC
5420607222 COIL 24VDC
5420607722 SPULE
5420647022 CO1-024DC-4,8W-30MM
5420700220 PILOT VALVE 24V= ..
5420707022 CO1-FORM_A-024DC-4,5W-30MM
5420707062 SOLENOID COIL SPULE 125V=
5420707072 CO1-FORM_A-110DC-4,1W-30MM
5420770220 SOLENOID-OPERATED 3/2-24VDC-6W
5420775280 3/2 SOLENOID PILOT VALVE 220VAC 50/60H
5420800390 PILOT VALVE 24VDC/42V-50HZ-CNOMO
5420817392 SOLENOID COIL 24VDC/42V-50HZ
5420850020 PILOT VALVE 24VDC
5420890010 VALVE SOLENOID .
5420890020 SOLENOID-OPERATED 3/2 NW1,5 24V DC
5420890030 PILOT VALVE 48V=
5420890070 PILOT VALVE 110VDC
5420890080 VORSTEUERVENTIL CNOMO 220V-DC
5420895312 PILOT VALVE BASIC-CNOMO-NO COIL
5420897022 CO1-FORM_A-024DC-2,7W-30MM
5420900002 ASSEMBLY KIT CD07
5420900220 PILOT VALVE 24VDC-NO SPE. CONTROL
5420905202 PILOT VALVE CD07
5420930210 MAGNET SYSTEM 3/2NC-012DC-1,6W-SC
5420930220 MAGNET SYSTEM 3/2NC-024DC-1,6W-SC
5420935220 MAGNET SYSTEM 3/2NC-024AC-1,6W-SC
5420935240 MAGNET SYSTEM 3/2NC-048AC-1,6W-SC
5420935270 MAGNET SYSTEM 3/2NC-110AC-1,6W-SC
5420935280 MAGNET SYSTEM 3/2NC-230AC-1,6W-SC
5420940620 MAGNET SYSTEM 3/2NC-024DC-1,6W-SC
5420945670 MAGNET SYSTEM 3/2NC-110AC-1,6W-SC
5420945680 MAGNET SYSTEM 3/2NC-230AC-1,6W-SC
5421300220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC
5421310210 MAGNET SYSTEM 3/2NC-012DC-2,0W-SC-&
5421310220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC-&
5421315270 MAGNET SYSTEM 3/2NC-110AC-2,0W-SC-&
5421315280 MAGNET SYSTEM 3/2NC-230AC-2,0W-SC-&
5421320220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC
5421330220 MAGNET SYSTEM 3/2NC-024DC-2,0W-SC-&
5421480220 2-FACH VORSTEUERVENTIL 24V-DC
5421500220 PILOT VALVE NW1,1 24VDC
5428110020 PILOT VALVE 24V-50/60HZ
5428110040 EVP CN 1,3/1,5 48V50/60HZ SC
5428110070 SOLENOID COIL 110/115V-50/60HZ
5428110080 PILOT VALVE 220V-50/60 HZ
5428117022 CO1-FORM_A-024AC-5,2VA-30
5428117072 CO1-FORM_A-110AC-4,8VA-30
5428117082 CO1-FORM_A-230AC-5,6VA-30MM
5428150080 PILOT VALVE 220V-50/60HZ
5428200370 PILOT VALVE 110VAC-CNOMO
5428200380 PILOT VALVE 220V-50/60 HZ
5428307082 COIL 220V-50HZ
5428407282 COIL 220V-50/60HZ
5428450020 VORSTEUERVENTIL 24V-50/60HZ ..
5428450080 VORSTEUERVENTIL 220V-50/60HZ
5428450270 PILOT VALVE 110/115V-50/60HZ
5428450280 PILOT VALVE 220V-50/60HZ
5428457022 CO1-FORM_A-024AC-4,2VA-30MM
5428457032 SPULE 42V-50/60HZ
5428457042 CO1-FORM_A-048AC-4,3VA-30MM
5428457072 CO1-FORM_A-110AC-4,2VA-30MM
5428457082 CO1-FORM_A-230AC-4,9VA-30MM
5428457112 CO1-FORM_A-240AC-4,2VA-30
5428477082 SPULE 220V 50/60HZ
5428477772 COIL 110VAC FORM A -CSA-UL
5432020020 BANK MOUNT.KIT 543-2
5432020050 BANK MOUNT.KIT 543-5
5432020060 MOUNTING KIT 543-6
5432020070 MOUNTING KIT 543-7
5432020100 BANK MOUNT.KIT 543-10
5452210800 BLOCKING G 1/4 QUICK D.8
5453219300 VALVE 545-G3/8-M5
5454219400 VALVE BLOCKING G 1/2 THREAD
5460076812 REGULATOR .
5460190000 CONTROL ELECTRONIC F. POS.-ZYL.2KANAL
5460190020 POSITIONIERREGLER
5460196722 POSITIONIERREGLER (EURO-UNI) SMD
5460424342 CONNECTING CABLE VDS L=1000MM
5460463602 DATENSTECKER PROFIBUS DP 12MBAUD
5460464252 KONFEKTIONIERTES KABEL
5460464322 KONFEKTIONIERTES KABEL
5500020000 550-002 MOD. 3 3/2 VALVE NORM. C
5500024020 BALL BEARING KIT-MEC550
5500050000 550-005 MOD. 3 3/2 VALVE NORM. C
5500070000 550-007 MOD3 3/2 NORM. C
5500090000 550-009 MOD. 3 3/2 VALVE NORM. C
5500280000 550-028 MOD. 3 3/2 VALVE NORM. C
5500510000 550-051 MOD. 3 3/2 VALVE NORM. C
5500520000 550-052 MOD. 3 3/2 VALVE NORM. C
5500530000 550-053 MOD. 3 3/2 VALVE NORM. C
5500540000 550-054 MOD. 3 3/2 VALVE NORM. C
5500560000 SERVO VALVE 550-056
5500590000 550-059 MOD. 3 3/2 VALVE NORM.C
5501020000 550-102 MOD. 3 3/2 VALVE NORM. O
5501050000 550-105 MOD3 3/2 NORM. O
5501070000 550-107 MOD. 3 3/2 VALVE NORM. O
5501090000 550-109 MOD. 3 3/2 VALVE NORM. O
5501280000 550-128 MOD. 3 3/2 VALVE NORM. O
5501510000 550-151 MOD3, 3/2 NORM. O
5501520000 550-152 MOD3 3/2 NORM. O
5501530000 550-153 MOD. 3 3/2 VALVE NORM. O
5501540000 550-154 MOD3 3/2 NORM. O
5501560000 550-156 MOD. 3 3/2 VALVE NORM. O
5501590000 550-159 MOD. 3 3/2 VALVE NO
5504410000 BEARING PEDESTAL 550-441
5510030000 CONTAINER AIR-551/003
5510100000 VALVE 551-010
5510120000 VALVE .
5510120100 VALVE 551-012 010
5510121100 VALVE 551-012 110
5510130000 VALVE 551-013
5510140000 VALVE 551-014
5510150000 VALVE 551-015
5510160000 VALVE 551-016
5510160100 VALVE 551-016 010
5510161100 SHUTTLE VALVE 551-016-110
5510200000 VALVE 551-020
5510240000 VALVE 551-024
5510250000 VALVE 551-025
5510250100 VALVE 551-025 010
5510251100 VALVE 551-025 110
5510260000 VALVE 551-026 F.F
5510260100 VALVE 551-026 010
5510261100 VALVE .
5510310000 SOLENOID-OPERATED 551-031
5510311340 SOLENOID-OPERATED 551-031 24V=
5510700000 FLOW-CONTROL VALVE 551-070
5511100000 VALVE 551-110
5512200000 VALVE 551-220 MOD. B
5512205000 VALVE 551-220
5512210000 DIR.-CONTROL VALVE 551-221-5/2-G1/8
5514250000 GASKET 551/425
5514400020 ACCESSORY(VALVES) 551-440-2
5514400030 ACCESSORY(VALVES) 551-440-3
5514400040 ACCESSORY(VALVES) 551-440-4
5514400050 ACCESSORY(VALVES) 551-440-5
5514400060 ACCESSORY(VALVES) 551-440-6
5514400070 ACCESSORY(VALVES) 551-440-7
5514400080 ACCESSORY(VALVES) 551-440-8
5514400090 ACCESSORY(VALVES) 551-440-9
5514400100 ACCESSORY(VALVES) 551-440-10
5514410000 FASTENING 551-441
5514500040 ACCESSORY(VALVES) 551-450-4
5514610000 FASTENING 551/461
5515410000 FASTENING 551-541
5515610000 MOUNTING KIT 551/561
5520011004 BEFESTIGUNG FUER HANDSCHIEBEVENTIL NW12
5520031004 FASTENING NW7-MANUAL SLIDE
5520050100 3/2 WEGE HANDSCHIEBERVENTIL NW4, G1/8
5520060100 3/2 WEGE HANDSCHIEBERVENTIL NW7, G1/4
5520070100 3/2 WEGE HANDSCHIEBERVENTIL NW12, G1/2
5530010522 MOUNTING PLATE ED07
5530011000 LUFTMENGENSENSOR 0...250L/MIN
5530011100 LUFTMENGENSENSOR I
5530011200 LUFTMENGENSENSOR I
5531210000 3/2 EL.CONTR.VALVE 22 MM NC
5531210100 3/2 EL.CONTR.VALVE 22MM 24V CD
5531210400 3/2 EL.CONTR.VALVE NC 230V AC
5531250000 3/2 EL.CONTR.VALVE 22 MM NC
5531250100 3/2 EL.CONTR.VALVE NC 24V DC
5531310000 3/2 EL.CONTR.VALVE 22 MM NO
5531310100 3/2 EL.CONTR.VALVE NO 24V DC
5531310400 3/2 EL.CONTR.VALVE NO 230V AC
5531350100 3/2 EL.CONTR.VALVE NO 24V DC
5531410000 3/2 EL.CONTR.VALVE 22 MM NC
5531410100 3/2 EL.CONTR.VALVR NC 24V DC
5531510000 3/2 EL.CONTR.VALVE 22 MM NO
5531510100 3/2 EL.CONTR.VALVE NO 24V DC
5540210100 DO16-3/2NC-IS15-024DC
5551210000 EL.CONTROL.VALVE 3/2NC-30MM-NO_COIL
5610102050 EV07-001-060-020-2DIAA
5610102060 EV07-001-060-020-2DIAA
5610102070 EV07-001-060-010-2DIAN
5610102150 EV07-001-060-420-2DIAA
5610102170 EV07-001-100-420-2DIAA
5610110900 ELEKTRO PNEUM. DRUCKREGELVENTIL NW4
5610111000 EV04-001-060-020-2DICA
5610111010 EV04-001-060-420-2DICA
5610111020 EV04-001-100-020-2DICA
5610111042 SCHNELLBEFESTIGUNG
5610111100 EV04-001-060-010-2DICN
5610111110 EV04-001-060-010-2DICA
5610111120 EV04-001-100-010-2DICN
5610113102 CONTROL PART .
5610115902 INSERT .
5610120020 ELEKTRO PNEUM. DRUCKREGELVENTIL NW4
5610120110 EP-DRUCKREGELVENTIL NW4, G1/8, 0-10BAR
5610120120 E/P DRUCKREGELVENTIL NW4,G1/8, 0-10BAR
5610120130 E/P-DRUCKREGELVENTIL 0-7BAR,0-10V E/A
5610120500 DRUCKREGELVENTIL NW4,PROPORTIONAL-MAGNET
5610120510 EP-REGULATOR NW4-PROP.MAGNET
5610120512 WINKELBLECH
5610120600 DRUCKREGELVENTIL NW4,PROPORTIONAL-MAGNET
5610120620 DRUCKREGELVENTIL NW4,PROPORTIONAL-MAGNET
5610120660 EP-REGULATOR (0-4,2)BAR
5610125902 VENTILEINSATZ
5610140302 ASSEMBLY KIT ED05-IND-XXX-ASS-1-F&
5610140312 ASSEMBLY KIT ED05-IND-XXX-ASS-1-F&
5610141002 BASE PLATE ED05-IND-XXX-ASS-1-F&
5610141012 BASE PLATE ED05-IND-XXX-ASS-2-F&
5610141022 BASE PLATE ED05-IND-XXX-ASS-3-F&
5610141052 BASE PLATE ED05-IND-XXX-ASS-6-F&
5610141072 BASE PLATE ED05-IND-XXX-ASS-8-F&
5610141092 BASE PLATE ED05-IND-XXX-ASS-10-&
5610141300 ED05-000-060-020-2DICA
5610141310 ED05-000-060-420-2DICA
5610141320 ED05-000-060-010-2DICN
5610141330 ED05-000-060-010-2DICA
5610141500 ED05-000-100-020-2DICA
5610141510 ED05-000-100-420-2DICA
5610141520 ED05-000-100-010-2DICN
5610141530 ED05-000-100-010-2DICA
5610141540 ED05-000-100-VDS-3M12X
5610141550 ED05-000-100-DDL-3M12X
5610149000 ED05-000-100-420-2DICA
5610149010 ED05-000-070-010-2DICA
5610149310 ED05-000-060-420-2DICA
5610210042 ASSEMBLY KIT .
5610211052 CONNECTION PLATE ED07-G3/8
5610214400 ED07-V10-010-020-2DIAA
5610214410 ED07-000-010-010-2DIAA
5610214500 ED07-000-100-020-2DIAA
5610214510 ED07-000-100-420-2DIAA
5610214520 ED07-000-100-010-2DIAN
5610214530 ED07-000-100-010-2DIAA
5610214840 E/P DRUCKREGELVENTIL 0-4BAR
5610214890 E/P DRUCKREGELVENTIL
5610214910 EP-REGULATOR (0-7)BAR-(0-10)V-E/A
5610214930 E/P DRUCKREGELVENT.0,2-3,5BAR,4-20MA E/A
5610214940 E/P DRUCKREGELVENTIL 0-20MA,0-50MBAR
5610219000 ED07-000-100-VDS-3XXXX
5610219010 E/P DRUCKREGELVENTIL NW7, 0-20BAR
5610219100 ED07-000-100-PDP-2XXXX
5610219200 ED07-000-100-IBS-3XXXX
5610219300
5610220092 ASSEMBLY KIT BEFESTIGUNGSSATZ ED12
5610221012 CONNECTION PLATE ED12C-SINGLE
5610224010 E/P-DRUCKREGELVENTIL 4-20MA, EXT.SENSOR
5610224510 ED12-000-100-420-2DIAA
5610224520 ED12-000-100-010-2DIAN
5610224530 ED12-000-100-010-2DIAA
5610231002 CONNECTION PLATE ARC
5610264200 ED07-000-200-020-2M12S
5610264210 ED07-000-200-420-2M12S
5610264220 ED07-000-200-010-2M12X
5610264230 ED07-000-200-010-2M12S
5610264500 ED07-000-100-020-2M12B
5610264510 ED07-000-100-420-2M12B
5610264520 ED07-000-100-010-2M12C
5610264530 ED07-000-100-010-2M12B
5610264800 ED07-000-060-020-2M12S
5610264810 ED07-000-060-420-2M12S
5610264820 ED07-000-060-010-2M12X
5610264830 ED07-000-060-010-2M12S
5619021072 ENDPLATTENBAUSATZ FUER E/P
5619030012 ERSATZTEIL-PAECKCHEN
5630100002 SPARE PART KIT .
5630180002 SPARE PART KIT .
5630180100 VR04-4/2DM-LEV
5630180130 VR04-4/2EC-LEV
5630180424 CAP .
5630181030 VR04-4/3EC-LEV
5630181100 VR04-4/3EC-LEV
5630182100 VR04-4/3CC-LEV
5630200000 ZZ99-3/2NC-PLU-ND4-POPPET
5630200002 SPARE PART KIT .
5630200080 ZZ99-3/2NC-ND4-POPPET
5630200100 ZZ99-3/2NC-ND4-POPPET
5630201000 3/2-WEGEVENTIL NW4, G1/8, BASISVENTIL
5630201010 V563-3/2NC-SR-BALL
5630201020 3/2-WEGEVENTIL NW4, G1/8, TASTROLLE
5630201030 3/2-WEGEVENTIL NW4, G1/8, TASTROLLE
5630201050 ZZ99-3/2NC-PUS-ND4-POPPET
5630201060 3/2-WEGEVENTIL NW4, G1/8, KIPPHEBEL
5630201070 ZZ99-3/2NC-LEV-ND4-POPPET
5630201120 3/2-WEGEVENTIL NW4, G1/8, TASTROLLE
5630201800 3/2-WEGEVENTIL NW4, G1/8, FUSSBETAETIG.
5630201810 3/2-WEGEVENTIL NW4, G1/8, FUSSBET??TIG.
5630201840 5/2-WEGEVENTIL NW4, G1/8, FUSSBETAETIG.
5630201850 5/2-WEGEVENTIL NW4, G1/8, FUSSBET??TIG.
5630202040 ZZ99-3/2NC-ROL-ND4-POPPET
5630202080 ZZ99-3/2NC-ROL-ND4-POPPET
5630202090 ZZ99-3/2NO-ROL-ND4-POPPET
5630203010 ZZ99-3/2NC-ROL-ND4-POPPET
5630209070 ZZ99-3/2NC-PLU-ND4-POPPET
5630209090 ZZ99-3/2NO-PUS-ND4-POPPET
5630209120 ZZ99-3/2NC-PUS-ND4-POPPET
5630610002 SPARE PART KIT .
5630610012 SPARE PART KIT .
5630667902 BET??TIGUNG
5631002004 BUSHING .
5631005904 SPACER .
5631005914 DISTANZST??CK
5631010002 SPARE PART KIT PAQUET DE PIECES D
5631010012 SPARE PART KIT .
5631010022 SPARE PART KIT .
5631010032 SPARE PART KIT .
5631010042 SPARE PART KIT .
5631020002 SPARE PART KIT .
5631027902 OPERATION ROLLER
5631027912 OPERATION ROLLER-PLASTIC
5631027962 BET??TIGUNG
5631047912 OPERATION ROLLER
5631087902 OPERATION .
5631087912 BET??TIGUNG -HEBEL- (SENKRECHT)
5631147902 OPERATION LEVER
5631147912 OPERATION LEVER
5631171004 FASTENING PLATE .
5631174514 PROTECTIVE COVER .
5631210520 5/3 WEGEVENTIL NW7, -PEDAL-
5631210530 5/3 WEGEVENTIL NW7, -PEDAL-
5631230550 NW07-5/3-SPEZ-LEV
5631230560 NW07-5/3-SPEZ-LEV
5631235550 NW07-5/3-SPEZ-LEV
5631235560 NW07-5/3-SPEZ-LEV
5631239020 5/3 WEGEVENTIL NW7, -MIT SCHUTZHAUBE-
5631239040 5/3 WEGEVENTIL NW7, ENTL. MITTELSTELL.
5631310002 SPARE PART KIT 5PU
5631310100 VR07-5/2DM-LEV
5631311100 VR07-5/3EC-LEV
5631312100 VR07-5/3CC-LEV
5632010000 V563-3/2NC-SR
5632037942 OPERATION .
5632300000 NW02-3/2-M005-PLU
5632300010 NW02-3/2-M005-PLU
5632310000 V563-3/2NC-SR-30BAR
5632320000 NW02-3/2-M005-WHL
5632400000 NW02-3/2-M005-PLU
5632510000 V563-3/2NC-SR-HIGH_TEMPERATURE
5632605232 3/2 WEGEVENTIL NW2 -GRUNDVENTIL
5633010000 V563-3/2NC-SR-NO_COIL
5633011310 V563-3/2NC-SR-230AC
5633011320 V563-3/2NC-SR-110AC
5633011330 V563-3/2NC-SR-024AC
5633011340 V563-3/2NC-SR-024DC-5W
5633011350 SOLENOID-OPERATED 563/301 2 48V=
5633011360 VALVE 563/301 2 110V=
5633014310 SOLENOID-OPERATED 563/301 2 230V 50HZ
5633014350 VALVE 563/301 2 48V=
5633050000 VALVE 563 MOD2 BASIC EL 2W
5633050100 V563-3/2NC-SR-024DC-2W
5634000100 CD04-3/2NC-SR-P-G018-G018-S
5634010100 CD04-3/2NC-SR-R-G018-G018-S
5634030100 CD04-3/2NC-SR-HLX-G018-G018-S
5634040100 CD04-3/2NC-SR-HL-G018-G018-S
5634050100 CD04-3/2NC-SR-RLD-G018-G018-S
5634060100 CD04-3/2NC-SR-BU-G018-G018-S
5634200100 CD04-5/2XX-SR-P-G018-G018-S
5634210100 CD04-5/2XX-SR-R-G018-G018-S
5634230100 CD04-5/2XX-SR-HLX-G018-G018-S
5634240100 CD04-5/2XX-SR-HL-G018-G018-S
5634250100 CD04-5/2XX-SR-RLD-G018-G018-S
5634260100 CD04-5/2XX-SR-BU-G018-G018-S
5634400000 CD07-3/2NC-SR-P-M014-M014-S
5634400100 CD07-3/2NC-SR-P-G014-G014-S
5634409010 CD07-3/2NC-DO-P-G014-G014-S
5634410000 CD07-3/2NC-SR-R-M014-M014-S
5634410100 CD07-3/2NC-SR-R-G014-G014-S
5634411100 CD07-3/2NC-PN-R-G014-G014-S
5634420000 BASE PLATE 563/442
5634430100 CD07-3/2NC-SR-HLX-G014-G014-S
5634440100 CD07-3/2NC-SR-HL-G014-G014-S
5634450100 CD07-3/2NC-SR-RLD-G014-G014-S
5634460000 CD07-3/2NC-SR-BU-M014-M014-S
5634460100 CD07-3/2NC-SR-BU-G014-G014-S
5634461000 CD07-3/2NC-PN-BU-M014-M014-S
5634461100 CD07-3/2NC-PN-BU-G014-G014-S
5634469110 CD07-3/2NC-PN-BU-M014-M014-S
5634469310 CD07-3/2NC-PN-BU-M014-M014-S
5634510000 BASE PLATE COMPL. 563-451
5634530000 BLANKINGPLATE COMPL 563-453
5634600100 CD07-5/2XX-SR-P-G014-G014-S
5634610100 CD07-5/2XX-SR-R-G014-G014-S
5634610190 CD07-5/2XX-SR-R-G014-G014-S
5634617902 TASTROLLE
5634617912 OPERATION CD07
5634630100 CD07-5/2XX-SR-HLX-G014-G014-S
5634630190 CD07-5/2XX-SR-HLX-G014-G014-S
5634637102 LEVER .
5634637902 HEBEL SENKR.
5634637912 HAND-OPERATED DEVI PA M6
5634640100 CD07-5/2XX-SR-HLD-G014-G014-S
5634647902 LEVER .
5634647912 LEVER CD07
5634650100 CD07-5/2XX-SR-RLD-G014-G014-S
5634657102 LEVER .
5634657902 HAND-OPERATED DEVI WAAGERECHT
5634660100 CD07-5/2XX-SR-BU-G014-G014-S
5634669200 CD07-5/2XX-PN-BU-G014-G014-S
5634670100 CD07-5/2XX-SR-PE-G014-G014-S
5634695100 CD07-5/2XX-ME-PED-G014-G014-S
5634800000 ASSEMBLY KIT 563
5634810000 CUT OFF SET FOR 563
5644410000 BASE PLATE COMPL. 564-441
5644420000 BASE PLATE COMPL. 564-442
5644510000 BASE PLATE COMPL. 564-451
5652010000 V565-3/2NC-SR
5652310000 V565-3/2NC-SR-30BAR
5652510000 V565-3/2NC-SR-HIGH_TEMPERATURE
5653010000 V565-3/2NC-SR-NO_COIL
5653011310 V565-3/2NC-SR-230AC
5653011320 V565-3/2NC-SR-110AC
5653011330 V565-3/2NC-SR-024AC
5653011340 V565-3/2NC-SR-024DC
5654410000 BASE PLATE COMPL. 565-441
5654420000 BASE PLATE COMPL. 565-442-G1/2
5654510000 BASE PLATE COMPL. 565-451-G1/2
5654530000 BLANKINGPLATE COMPL.565-453
5654800000 VALVE 564-565
5654810000 CUT OFF SET FOR 565
5664420000 BASE PLATE COMPL. 566-442
5672010000 V567-3/2NC-SR
5672310000 V567-3/2NC-SR-30BAR
5672510000 V567-3/2NC-SR-HIGH_TEMPERATURE
5673010000 V567-3/2NC-SR-NO_COIL
5673011310 V567-3/2NC-SR-230AC
5673011320 V567-3/2NC-SR-110AC
5673011330 V567-3/2NC-SR-024AC
5673011340 V567-3/2NC-SR-024DC
5674000000 BELUEFTUNGSMODUL
5674420000 BASE PLATE COMPL.567-442
5684420000 BASE PLATE COMPL. 568-442
5710040002 ERSATZTEILP??CKCHEN
5710040022 ERSATZTEILP??CKCHEN
5710050002 SPARE PART KIT .
5710050022 SPARE PART KIT .
5710050510 NW07-5/2SR-SPEZ-MODI
5710051510 NW07-5/2SR-SPEZ-MODI
5710070520 5/3 WEGEVENTIL NW7, F??R GRUNDPLATTE
5710070530 NW07-5/3-SPEZ
5710090210 NW02-5/2AS-M005
5710200100 CD04-3/2NC-SR-G018-G018-G018-S
5710300100 CD04-5/2XX-SR-G018-G018-G018-S
5710301100 CD04-5/2XX-DO-G018-G018-G018-S
5710400000 CD07-3/2NC-SR-M014-M014-M010-S
5710400002 SPARE PART KIT .
5710400090 CD07-3/2NC-SR-M014-M014-M010-S
5710400100 CD07-3/2NC-SR-G014-G014-G018-S
5710401000 CD07-3/2NC-SR-M014-M014-M010-S
5710401100 CD07-3/2NC-SR-G014-G014-G018-S
5710409000 CD07-2/2NO-AS-M014-M014-M010-S
5710500000 CD07-5/2XX-SR-M014-M014-M010-S
5710500100 CD07-5/2XX-SR-G014-G014-G018-S
5710500190 CD07-5/2XX-SR-G014-G014-G018-S
5710501000 CD07-5/2XX-DO-M014-M014-M010-S
5710501100 CD07-5/2XX-DO-G014-G014-G018-S
5710501190 CD07-5/2XX-DO-G014-G014-G018-S
5710502100 CD07-5/3PC-SR-G014-G014-G018-S
5710502110 CD07-5/3EC-SR-G014-G014-G018-S
5710502120 CD07-5/3CC-SR-G014-G014-G018-S
5710509300 CD07-5/2XX-SR-M014-M014-M010-S
5711000000 CD12-5/2XX-AR-M022-M022-G018-S
5711000002 SPARE PART KIT SER FOR VALVE CD12
5711000022 SPARE PART KIT FOR 572-547
5711000100 CD12-5/2XX-AR-G012-G012-G018-S
5711000300 CD12-5/2XX-SR-G012-G012-G018-S
5711001100 CD12-5/2XX-DO-G012-G012-G018-S
5711100002 SPARE PART KIT .
5711100200 CD12-3/2NC-SR-M022-M022-G018-S
5711100300 CD12-3/2NC-SR-G012-G012-G018-S
5711200002 SPARE PART KIT CD12
5711200012 ERSATZTEILP??CKCHEN
5711200050 CD12-5/3CC-SR-G012-G012-G018-S
5711200060 CD12-5/3EC-SR-G012-G012-G018-S
5714003500 CD01 - 5/2SR
5714003520 CD01 - 5/2DP
5714003530 CD01 - 5/2DP
5714003800 CD01 - 5/3PC
5714003810 CD01 - 5/3EC
5714003820 CD01 - 5/3CC
5714003990 CD01 - 3/2OC
5715010210 5/2 WEGEVENTIL (VERSTAERKERVENTIL)
5717400000 PNEUM-VALVE V740-5/2AR-07
5717400002 SPARE PART KIT V740
5717410000 V740-5/2DP-07
5717410002 SPARE PART KIT V740
5717450000 V740-5/2AS-07
5717451000 V740-5/2AS-07-CP
5717460000 V740-5/2DP-07
5717461000 V740-5/2DP-07-CP
5718400000 V840-4/2OC-DI04-03
5718410000 V840-4/2DP-DI04-03
5719000412 SEALING CAP KOMPLETT,FDA-AUSFG
5719007732 TAPPET KOMPLETT DICHTG.FEDER
5720110220 VALVE SYSTEM ND01-4STATION
5720110221 SOLENOID-OPERATED .
5724500920 CD12-3/2NC-SR-024DC-I-M022-M022-EN175301
5724505970 CD12-3/2NC-SR-110AC-I-M022-M022-EN175301
5724505980 CD12-3/2NC-SR-230AC-I-M022-M022-EN175301
5724550220 CD12-3/2NC-SR-024DC-I-G012-G012-EN175301
5724555202 CD12-3/2NC-SR-NONE-I-G012-G012
5724555270 CD12-3/2NC-SR-110AC-I-G012-G012-EN175301
5724555280 CD12-3/2NC-SR-230AC-I-G012-G012-EN175301
5724560220 CD12-3/2NC-SR-024DC-E-G012-G012-EN175301
5724565202 CD12-3/2NC-SR-NONE-E-G012-G012
5724565270 CD12-3/2NC-SR-110AC-E-G012-G012-EN175301
5724565280 CD12-3/2NC-SR-230AC-E-G012-G012-EN175301
5724600002 ERSATZTEILPAECKCHEN
5724607022 COIL 24VDC
5724607582 SPULE 220V-50/60HZ
5724700104 HOUSING 572-470
5724700220 NW2-3/2-M010X1,5-024DC
5724707904 OPERATION .
5724750220 3/2 MAGNETVENTIL NW2,5 24V=, G1/8
5724755220 3/2-WEGEVENTIL
5724755280 3/2 MAGNETVENTIL NW2,5 220/230V-AC
5724790220 SOLENOID-OPERATED 3/2NO-NW2,5-24VDC
5724795220 3/2 MAGNETVENTIL 24V50/60HZ
5724795280 3/2 MAGNETVENTIL NW 2,5 220/230V-AC
5724970220 V490-3/2NC-024DC-ND0,8
5724971220 V490-3/2NC-024DC 150-FACH 5724970220
5724980220 V490-3/2NC-024DC-ND1,2
5724990220 V490-3/2NC-024DC-ND1,2
5724991220 V490-3/2NC-024DC 150-FACH 5724990220
5725400220 CD12-5/2XX-AR-024DC-I-M022-M022-EN175301
5725405202 CD12-5/2XX-AR-NONE-I-M022-M022
5725405270 CD12-5/2XX-AR-110AC-I-M022-M022-EN175301
5725405280 CD12-5/2XX-AR-230AC-I-M022-M022-EN175301
5725406502 COVER .
5725450220 CD12-5/2XX-AR-024DC-I-G012-G012-EN175301
5725455202 CD12-5/2XX-AR-NONE-I-G012-G012
5725455270 CD12-5/2XX-AR-110AC-I-G012-G012-EN175301
5725455280 CD12-5/2XX-AR-230AC-I-G012-G012-EN175301
5725455302 CD12-5/2XX-AR-NONE-I-G012-G012
5725470002 SPARE PART KIT CD12
5725470220 CD12-5/2XX-SR-024DC-I-G012-G012-EN175301
5725470920 CD12-5/2SR-G012-024DC-MODI
5725475202 CD12-5/2XX-SR-NONE-I-G012-G012
5725475270 CD12-5/2XX-SR-110AC-I-G012-G012-EN175301
5725475280 CD12-5/2XX-SR-230AC-I-G012-G012-EN175301
5725480220 CD12-5/2XX-SR-024DC-E-G012-G012-EN175301
5725485202 CD12-5/2XX-SR-NONE-E-G012-G012
5725485270 CD12-5/2XX-SR-110AC-E-G012-G012-EN175301
5725485280 CD12-5/2XX-SR-230AC-E-G012-G012-EN175301
5725500220 CD12-5/2XX-DO-024DC-I-M022-M022-EN175301
5725505202 CD12-5/2XX-DO-NONE-I-M022-M022
5725505270 CD12-5/2XX-DO-110AC-I-M022-M022-EN175301
5725505280 CD12-5/2XX-DO-230AC-I-M022-M022-EN175301
5725550220 CD12-5/2XX-DO-024DC-I-G012-G012-EN175301
5725555202 CD12-5/2XX-DO-NONE-I-G012-G012
5725555270 CD12-5/2XX-DO-110AC-I-G012-G012-EN175301
5725555280 CD12-5/2XX-DO-230AC-I-G012-G012-EN175301
5725560220 CD12-5/2XX-DO-024DC-E-G012-G012-EN175301
5725565202 CD12-5/2XX-DO-NONE-E-G012-G012
5725565270 CD12-5/2XX-DO-110AC-E-G012-G012-EN175301
5725565280 CD12-5/2XX-DO-230AC-E-G012-G012-EN175301
5725650220 CD12-5/3CC-SR-024DC-I-G012-G012-EN175301
5725650920 CD12-5/3CC-SR-024DC-I-G012-G012-EN175301
5725655202 CD12-5/3CC-SR-NONE-I-G012-G012
5725655270 CD12-5/3CC-SR-110AC-I-G012-G012-EN175301
5725655280 CD12-5/3CC-SR-230AC-I-G012-G012-EN175301
5725655980 CD12-5/3CC-SR-230AC-I-G012-G012-EN175301
5725680220 CD12-5/3EC-DO-024DC-E-G012-G012-EN175301
5725685202 CD12-5/3EC-DO-NONE-E-G012-G012
5725685270 CD12-5/3EC-DO-110AC-E-G012-G012-EN175301
5725685280 CD12-5/3EC-DO-230AC-E-G012-G012-EN175301
5726111034 BASE PLATE PA M6
5726111042 BASE PLATE NW7, M14X1,5
5726111044 BASE PLATE NW7, M14X1,5
5726160020 NW07-5/2SR-SPEZ-024DC
5726160920 5/2 MAGNETVENTIL NW7, 24V=,ZWEIDRUCKVTL.
5726165020 5/2 MAGNETVENTIL NW7, 24V50/60HZ
5726165070 NW07-5/2SR-SPEZ-110AC
5726165080 5/2 MAGNETVENTIL NW7, 220V50/60HZ
5726165202 SOLENOID-OPERATED .
5726320920 NW07-5/2DS-SPEZ-024DC
5726325970 NW07-5/2DS-SPEZ-115AC
5726325980 NW07-5/2DS-SPEZ-220AC
5726330920 5/2-WEGEVENTIL
5726480020 NW07-5/3DS-SPEZ-024DC
5726485070 SOLENOID-OPERATED .
5726485080 NW07-5/3DS-SPEZ-220AC
5726490020 NW07-5/3CC-SPEZ-024DC
5726495070 NW07-5/3CC-SPEZ-110AC
5726495080 NW07-5/3CC-SPEZ-220AC
5727400002 SPARE PART KIT V740
5727400082 KIT EMBASE SERIE 740 POUR ALIM 2 COTES
5727400092 SEAL KIT R, P, S
5727400210 V740-5/2AR-D8X1-MO-12VCC
5727400220 V740-5/2AR-024DC-07
5727400420 V740-5/2AR-024DC-07
5727400990 V740-5/2AS-DI04-024DC-04-MODI
5727401304 RING .
5727405202 ARMATURE SYSTEM 1,3/1,5-10BAR-NC-FL
5727405220 V740-5/2AR 24V50/60HZ
5727405270 V740-5/2AR-110AC-07
5727405280 V740-5/2AR-230AC-07
5727405302 V740-5/2AS-00000-07
5727405420 V740-5/2AR 24V-AC
5727405470 V740-5/2AR-110AC-07
5727405480 V740-5/2AR-230AC-07
5727406012 BLANK FLANGE V740
5727406014 BLANK FLANGE .
5727406404 LOCK BOLT SEG 740
5727407022 SPULE
5727407714 TAPPET .
5727407904 OPERATION V740-PLUG-MAN-O-RIDE
5727410002 SPARE PART KIT V740
5727410220 V740-5/2DS-024DC-07
5727410420 V740-5/2DS-024DC-07
5727415220 5/2 MAGNETVENTIL NW7, 24V50/60HZ
5727415270 V740-5/2DS-110AC-07
5727415280 V740-5/2DS-230AC-07
5727415302 V740-5/2DS-00000-07
5727415470 5/2 MAGNETVENTIL NW7, 110V-AC
5727415480 V740-5/2DS-230AC-07
5727420220 V740-5/2AR-024DC-07
5727440220 V740-5/2DS-024DC-07
5727445280 5/2-WEGE-MAGNETVENTIL 220/230V AC
5727450220 V740-5/2AR-024DC-07
5727450420 V740-5/2AR-024DC-07
5727455220 V740-5/2AR 24V50/60HZ
5727455270 V740-5/2AR-110AC-07
5727455280 V740-5/2AR-230AC-07
5727455302 V740-5/2AS-00000-07
5727455420 V740-5/2AR 24V-AC-07
5727455470 V740-5/2AR 110V-AC-07
5727455480 V740-5/2AR-230AC-07
5727460220 V740-5/2DS-024DC-07
5727460420 V740-5/2DS-024DC-07
5727465270 V740-5/2DS-110AC-07
5727465280 V740-5/2DS-230AC-07
5727465302 V740-5/2DS-00000-07
5727465480 V740-5/2DS-230AC-07
5727470220 V740-5/2AR-024DC-07
5727475280 V740-5/2AR-230AC-07
5727475302 V740-5/2AS-00000-07
5727480220 V740-5/2DS-024DC-07
5727485280 V740-5/2DS-230DC-07
5727485302 V740-5/2DS-00000-07
5727490220 V740-5/2AR-024DC-07-MODI
5727495270 V740-5/2AR-110AC-07-MODI
5727500220 V740-5/4CC-DI06-024DC-07
5727500420 V740-5/4CC-DI06-024DC-07
5727505280 V740-5/4CC-DI06-230AC-07
5727505302 V740-5/4CC-DI06-NONE-07-BASIC
5727510220 V740-5/4CC-DI06-024DC-07
5727515270 V740-5/4CC-DI06-110AC-07
5727515280 V740-5/4CC-DI06-230AC-07
5727515302 V740-5/4CC-DI06-NONE-07-BASIC
5727520220 V740-5/4EC-DI06-024DC-07
5727525270 V740-5/4EC-DI06-110AC-07
5727525280 V740-5/4EC-DI06-230AC-07
5727525302 V740-5/4EC-DI06-NONE-07-BASIC
5727550220 V740-5/4CC-DI08-024DC-07
5727555280 V740-5/4CC-DI08-230AC-07
5727555302 V740-5/4CC-DI08-NONE-07-BASIC
5727560220 V740-5/4CC-DI08-024DC-07
5727560920 V740-5/4CC-DA10-024DC-07-MODI
5727565280 V740-5/4CC-DI08-230AC-07
5727565302 V740-5/4CC-DI08-NONE-07-BASIC
5727650220 V740-5/4CC-DI08-024DC-07-MODI-CP
5727790220 V740-5/2AR-024DC-07-MODI
5727800920 V740-5/2-024DC-07-MODI-CP
5727820920 V740-5/4CC-DI08-024DC-07-MODI
5727830220 V740-5/4CC-DI06-024DC-07
5727835302 V740-5/4CC-DI06-NONE-07-BASIC
5727840220 V740-5/4CC-DI08-024DC-07
5727850220 V740-5/4CC-DI06-024DC-07
5727850420 V740-5/4CC-DI06-024DC-07
5727855302 V740-5/4CC-DI06-NONE-07-BASIC
5727920220 V740-5/2DS-024DC-07-CP
5727925280 V740-5/2DS-230AC-07-CP
5727925302 V740-5/2DS-00000-07
5727940220 V740-5/2AS-024DC-07-CP
5727940920 V740-5/2AS-DA10-024DC-07-MODI
5727945280 V740-5/2AS-230AC-07-CP
5727945302 V740-5/2AS-00000-07
5727945312 V740-5/2AS-DA10-NONE-07-MODI
5727970220 V740-5/2AS-DI06-024DC-07-MODI-CP
5727975280 V740-5/2AS-DI06-230AC-07-MODI-CP
5727975302 V740-5/2AS-00000-07-MODI-CP
5727980220 V740-5/2AS-DI08-024DC-07-MODI
5727980920 V740-5/2AS-DI08-024DC-07-MODI
5727985302 V740-5/2AS-DI08-NONE-07-BASIC-MODI
5728400092 ASSEMBLY KIT .
5728400220 V840-4/2OC-DI04-024DC-03-MODI
5728400410 V840-4/2OC-DI04-012DC-03
5728400414 CAP COVER .
5728400420 V840-4/2OC-DI04-024DC-03
5728400424 CAP COVER .
5728400570 V840-4/2OC-DI04-120DC-03
5728400620 V840-4/2OC-DI04-024DC-03-LED
5728405292 ARMATURE .
5728405420 V840-4/2OC-DI04-024AC-03
5728405440 V840-4/2OC-DI04-048AC-03
5728405470 V840-4/2OC-DI04-110AC-03
5728405480 V840-4/2OC-DI04-230AC-03
5728405680 V840-4/2OC-DI04-230AC-03-LED
5728406004 BLANK FLANGE .
5728406414 RIEGEL
5728407152 COIL 024DC
5728407182 COIL 017DC MIT KABEL
5728409980 V840-4/2OC-D014-024DC-03-MODI-USA
5728409990 V840-4/2OC-D014-110AC-03-MODI-USA
5728410410 V840-4/2DS-DI04-012DC-03
5728410420 V840-4/2DS-DI04-024DC-03
5728410620 V840-4/2DS-DI04-024DC-03-LED
5728415420 V840-4/2DS-DI04-024AC-03
5728415470 V840-4/2DS-DA06-110AC-03
5728415480 V840-4/2DS-DI04-230AC-03
5728415670 V840-4/2DS-DI04-110AC-03-LED
5728415680 V840-4/2DS-DI04-230AC-03-LED
5728417904 OPERATION V840-ELECTRO MODULE
5728450220 V840-4/2OC-DA06-024DC-03-MODI
5728450410 V840-4/2OC-DA06-012DC-03
5728450420 V840-4/2OC-DA06-024DC-03
5728450620 V840-4/2OC-DA06-024DC-03-LED
5728455420 V840-4/2OC-DA06-024AC-03
5728455470 V840-4/2OC-DA06-110AC-03
5728455480 V840-4/2OC-DA06-230AC-03
5728455670 V840-4/2OC-DA06-110AC-03-LED
5728455680 V840-4/2OC-DA06-230AC-03-LED
5728459990 V840-4/2OC-D014-012DC-03-MODI
5728460220 V840-4/2DS-DA06-024DC-03-MODI
5728460410 V840-4/2DS-DA06-012DC-03
5728460420 V840-4/2DS-DA06-024DC-03
5728460620 V840-4/2DS-DA06-024DC-03-LED
5728465420 V840-4/2DS-DA06-024AC-03
5728465470 V840-4/2DS-DA06-110AC-03
5728465480 V840-4/2DS-DA06-230AC-03
5728465680 V840-4/2DS-DA06-230AC-03-LED
5735010002 SPARE PART KIT .
5735032502 DIAPHRAGM F.VENTIL NW25
5735040000 RAPID-EXHAUST VALV ZZ99-G018-G018
5735040100 RAPID-EXHAUST VALV ZZ99-G014-G014
5735040300 RAPID-EXHAUST VALV ZZ99-G012-G012
5735040900 FLOW-CONTROL VALVE ZZ99-M005-M005
5746000012 SEAL KIT CERAM-ISO1-PISTON
5746011000 PRESSURE REG.ISO 1 PORT 1
5746021012 PRESSURE REGULATOR SZ1,P4,ADJ 14 END
5746021020 DRUCKREGELZWISCHENPLATTE ISO1; ANSCHL.2
5746500012 SPARE PART CERAM
5746521012 SOLENOID-OPERATED ISO2 A
5747011012 DROSSELZWISCHENPL
5750020000 PRESSURE REGULATOR CD01
5750020002 SPARE PART KIT F/V15
5750020500 PRESSURE REGULATOR CD01-NW4-PORT1
5750020510 PRESSURE REGULATOR CD01-NW4-PORT3
5750020520 PRESSURE REGULATOR CD01, NW4
5750020530 PRESSURE REGULATOR CD01, NW4
5761810220 VP15-5/3EC-024DC
5762100220 VS15-5/2SR-024DC
5763500404 CONNECTION PLUG 8POL-YAM
5763500414 BLINDSTOPFEN 14,5X35,2 POM
5763503103 BRIDGING CONTACT M VDS-C-CBSO
5763503112 BRIDGING CONTACT M 24V-DC 0,2M KABEL
5763503113 BRIDGING CONTACT M VDS-C-CBSI
5763503122 BRIDGING CONTACT M 24V-DC 0,2M KABEL
5763503123 BRIDGING CONTACT M CD01
5763503133 BRIDGING CONTACT M .
5763503142 BRIDGING CONTACT M 2OUT
5763503143 BRIDGING CONTACT M 2OUT-0,2M CBL
5763503173 BRIDGING CONTACT M .
5763503183 BRIDGING CONTACT M CD01-1BOBINE-FORME C
5763503193 BRIDGING CONTACT M CD01-2BOBINE-FORME C
5763504704 KABELSEGMENT
5763510120 CD01-PL-5/2AS-024DC
5763510210 CD01 - 5/2DS - 012DC
5763510220 CD01 - 5/2AS - 024DC
5763510520 CD01-5/2AS-VD01-024DC
5763510620 CD01 - 5/2AS - 024DC
5763510720 CD01-5/2AS-024DC
5763510820 CD01-PL-5/2AS-024DC
5763510920 CD01 - 5/2AS - 024DC
5763513102 BRIDGING CONTACT M (2ZUS. EINGAENGE)
5763513113 BRIDGING CONTACT M VDS-C-CBSI
5763513123 BRIDGING CONTACT M VDS-C-CBSI
5763513133 BRIDGING CONTACT M VDS-C-CBSO
5763513152 BRIDGING CONTACT M (20'ER PACKUNG)
5763513173 BRIDGING CONTACT M .
5763513183 BRIDGING CONTACT M .
5763513193 BRIDGING CONTACT M .
5763515220 CD01 - 5/2AS - 024AC
5763515270 CD01 - 5/2AS - 110AC
5763515280 CD01 - 5/2AS - 230AC
5763515670 CD01 - 5/2AS - 110AC
5763520002 SER CD01
5763520120 CD01-PL-5/2DS-024DC
5763520220 CD01 - 5/2DS - 024DC
5763520520 CD01-5/2DS-VD01-024DC
5763520620 CD01 - 5/2DS - 024DC
5763520720 CD01-5/2DS-024DC
5763520820 CD01-PL-5/2DS-024DC
5763523113 BRIDGING CONTACT M VDS-C-CBSI
5763523123 BRIDGING CONTACT M VDS-C-CBSI
5763523133 BRIDGING CONTACT M VDS-F-CBSI
5763523143 BRIDGING CONTACT M VDS-F-CBSO
5763523153 BRIDGING CONTACT M M12-SHORT-500MM-2OUT
5763525220 CD01 - 5/2DS - 024AC
5763525270 CD01 - 5/2DS - 110AC
5763525280 CD01 - 5/2DS - 230AC
5763525670 CD01 - 5/2DS - 110AC
5763530220 CD01 - 5/2DS - 24DC
5763530620 CD01 - 5/2DS - 24DC
5763530920 CD01 - 5/2DS - 024DC
5763533103 BRIDGING CONTACT M SHORT-200MM-PARALLEL
5763533113 BRIDGING CONTACT M SHORT-5000MM-PARALLEL
5763535270 CD01 - 5/2DS - 110AC
5763535670 CD01 - 5/2DS - 110AC
5763573103 BRIDGING CONTACT M M12-24VDC-W/LED
5763573113 BRIDGING CONTACT M M12-24VDC
5763600120 CD01-PL-5/2SR-024DC
5763600220 CD01 - 5/2SR - 024DC
5763600520 CD01-5/2SR-VD01-024DC
5763600620 CD01 - 5/2SR - 024DC
5763600720 CD01-5/2SR-024DC
5763600820 CD01-PL-5/2SR-024DC
5763605220 CD01 - 5/2SR - 024AC
5763605270 CD01 - 5/2SR - 110AC
5763605280 CD01 - 5/2SR - 230AC
5763605670 CD01 - 5/2SR - 110AC
5763650120 CD01-PL-5/2DS-024DC
5763650220 CD01 - 5/2DS - 024DC
5763650520 CD01-5/2DS-VD01-024DC
5763650620 CD01 - 5/2DS - 024DC
5763650720 CD01-5/2DS-024DC
5763650820 CD01-PL-5/2DS-024DC
5763655270 CD01 - 5/2DS - 110AC
5763655280 CD01 - 5/2DS - 230AC
5763655670 CD01 - 5/2DS - 110AC
5763800220 CD01 - 5/3PC - 024DC
5763800520 CD01-5/3PC-VD01-024DC
5763800620 CD01 - 5/3PC - 024DC
5763800720 CD01-5/3PC-024DC
5763800920 CD01 - 5/3PC - 024DC
5763805270 CD01 - 5/3PC - 110AC
5763805670 CD01 - 5/3PC - 110AC
5763810220 CD01 - 5/3EC - 024DC
5763810520 CD01-5/3EC-VD01-024DC
5763810620 CD01 - 5/3EC - 024DC
5763810720 CD01-5/3EC-024DC
5763810920 CD01 - 5/3EC - 024DC
5763815220 CD01 - 5/3EC - 024AC
5763815270 CD01 - 5/3EC - 110AC
5763815280 CD01 - 5/3EC - 230AC
5763815670 CD01 - 5/3EC - 110AC
5763820210 CD01-5/3CC-VD01-012DC
5763820220 CD01 - 5/3CC - 024DC
5763820520 CD01-5/3CC-VD01-024DC
5763820620 CD01 - 5/3CC - 024DC
5763820720 CD01-5/3CC-024DC
5763820820 CD01-PL-5/3CC-024DC
5763825270 CD01 - 5/3CC - 110AC
5763825280 CD01 - 5/3CC - 230AC
5763825670 CD01 - 5/3CC - 110AC
5763850120 CD01-PL-5/3PC-024DC
5763850220 CD01 - 5/3PC - 024DC
5763850520 CD01-5/3PC-VD01-024DC
5763850620 CD01 - 5/3PC - 024DC
5763850720 CD01-5/3PC-024DC
5763850820 CD01-PL-5/3PC-024DC
5763855270 CD01 - 5/3PC - 110AC
5763855670 CD01 - 5/3PC - 110AC
5763860120 CD01-PL-5/3EC-024DC
5763860220 CD01 - 5/3EC - 024DC
5763860520 CD01-5/3EC-VD01-024DC
5763860620 CD01 - 5/3EC - 024DC
5763860720 CD01-5/3EC-024DC
5763860820 CD01-PL-5/3EC-024DC
5763865270 CD01 - 5/3EC - 110AC
5763865670 CD01 - 5/3EC - 110AC
5763870120 CD01-PL-5/3CC-024DC
5763870220 CD01 - 5/3CC - 024DC
5763870520 CD01-5/3CC-VD01-024DC
5763870620 CD01 - 5/3CC - 024DC
5763870720 CD01-5/3CC-024DC
5763870820 CD01-PL-5/3CC-024DC
5763875270 CD01 - 5/3CC - 110AC
5763875670 CD01 - 5/3CC - 110AC
5763950120 CD01-PL-3/2OC-024DC
5763950220 CD01 - 3/2OC - 024DC
5763950520 CD01-3/2OC-VD01-024DC
5763950620 CD01 - 3/2OC - 024DC
5763950720 CD01-3/2 OC-024DC
5763950820 CD01-PL-3/2OC-024DC
5763955270 CD01 - 3/2OC - 110AC
5763955670 CD01 - 3/2OC - 110AC
5763960120 CD01-PL-3/2OC-024DC
5763960220 CD01 - 3/2OC - 024DC
5763960520 CD01-3/2OC-VD01-024DC
5763960620 CD01 - 3/2OC - 024DC
5763960720 CD01-3/2 OC-024DC
5763960820 CD01-PL-3/2OC-024DC
5763965270 CD01 - 3/2OC - 110AC
5763965670 CD01 - 3/2OC - 110AC
5763970220 CD01 - 3/2OO - 024DC
5763970520 CD01-3/2OO-VD01-024DC
5763970620 CD01 - 3/2OO - 024DC
5763970720 CD01-3/2 OO-024DC
5763975220 CD01 - 3/2OO - 024AC
5763975270 CD01 - 3/2OO - 110AC
5763975670 CD01 - 3/2OO - 110AC
5763990120 CD01-PL-3/2CC-024DC
5763990220 CD01 - 3/2CC - 024DC
5763990520 CD01-3/2CC-VD01-024DC
5763990620 CD01 - 3/2CC - 024DC
5763990720 CD01-3/2CC-024DC
5763990820 CD01-PL-3/2CC-024DC
5763995220 CD01 - 3/2CC - 024AC
5763995270 CD01 - 3/2CC - 110AC
5763995280 CD01 - 3/2CC - 230AC
5763995670 CD01 - 3/2CC - 110AC
5764007704 TAPPET CD07-PLASTIC
5764300002 SPARE PART KIT ISO1
5764500002 SPARE PART KIT ISO2
5765000002 SPARE PART KIT ISO3
5765310002 SPARE PART KIT ISO3
5772020002 SPARE PART KIT CD07-3/2-SR--25?°C
5772020220 CD07-3/2NC-SR-024DC-I-M014
5772020770 CD07-3/2NC-SR-110DC-I-M014
5772021412 CARTRIDGE KURZ-PU
5772022220 CD07-3/2NC-SR-024DC-I-M014
5772025270 CD07-3/2NC-SR-110AC-I-M014
5772025280 CD07-3/2NC-SR-230AC-I-M014
5772025302 CD07-3/2NC-SR-NONE-I-M014
5772030220 CD07-3/2NC-SR-024DC-E-M014
5772035280 CD07-3/2NC-SR-230AC-E-M014
5772035302 CD07-3/2NC-SR-NONE-E-M014
5772070220 CD07-3/2NC-SR-024DC-I-G014
5772070970 CD07-3/2NC-G014-110DC-MODI
5772072220 CD07-3/2NC-SR-024DC-I-G014
5772075220 CD07-3/2NC-SR-024AC-I-G014
5772075270 CD07-3/2NC-SR-110AC-I-G014
5772075280 CD07-3/2NC-SR-230AC-I-G014
5772075302 CD07-3/2NC-SR-NONE-I-G014
5772079970 CD07-3/2NC-G014-110DC-MODI
5772079990 CD07-3/2NX-G014-024DC-MODI
5772080220 CD07-3/2NC-SR-024DC-E-G014
5772082220 CD07-3/2NC-SR-024DC-E-G014
5772085220 CD07-3/2NC-SR-024AC-E-G014
5772085270 CD07-3/2NC-SR-110AC-E-G014
5772085280 CD07-3/2NC-SR-230AC-E-G014
5772085302 CD07-3/2NC-SR-NONE-E-G014
5772500002 SPARE PART KIT .
5772500220 CD04-3/2NC-SR-024DC-I-M018-M018-EN175301
5772505302 CD04-3/2NC-SR-NONE-I-M010-M010
5772550220 CD04-3/2NC-SR-024DC-I-G018-G018-EN175301
5772555220 CD04-3/2NC-SR-024AC-I-G018-G018-EN175301
5772555270 CD04-3/2NC-SR-110AC-I-G018-G018-EN175301
5772555280 CD04-3/2NC-SR-230AC-I-G018-G018-EN175301
5772555302 CD04-3/2NC-SR-NONE-I-G018-G018
5772560220 CD04-3/2NC-SR-024DC-E-G018-G018-EN175301
5772565270 CD04-3/2NC-SR-110AC-E-G018-G018-EN175301
5772565280 CD04-3/2NC-SR-220AC-E-G018-G018-EN175301
5772565302 CD04-3/2NC-SR-NONE-E-G018-G018
5772590220 CD04-3/2NC-SR-024DC-I-G018-EN175301
5772960220 CD07-3/2NC-SR-024DC-I-G014
5772965302 CD07-3/2NC-SR-NONE-I-G014
5774600210 NW2-3/2-M010X1-012DC
5774600220 NW2-3/2-M010X1-024DC
5774600402 PLUG .
5774600920 3/2 MAGNETVENTIL NW2, 24V-DC, M10X1
5774650210 3/2 MAGNETVENTIL NW2, 12V =
5774650220 3/2 MAGNETVENTIL 24V DC, 2-10BAR
5774650920 3/2 MAGNETVENTIL 24V=, G1/8, NW2,5
5774655220 3/2 MAGNETVENTIL NW2, 24V-50/60HZ
5774655270 3/2 MAGNETVENTIL NW2,5 110/115V-50/60HZ
5774655280 3/2 MAGNETVENTIL NW2, 220V-50/60HZ
5776000002 DICHTUNG MIT LED ANZEIGE
5776001402 CARTRIDGE LONG-NBR
5776020002 SPARE PART KIT CD07-5/2-SR--25?°C
5776020012 SPARE PART KIT CD07-5/2-DO--40?°C
5776020220 CD07-5/2XX-SR-024DC-I-M014
5776025270 CD07-5/2XX-SR-110AC-I-M014
5776025280 CD07-5/2XX-SR-230AC-I-M014
5776025302 CD07-5/2XX-SR-NONE-I-M014
5776030220 CD07-5/2XX-SR-024DC-E-M014
5776035280 CD07-5/2XX-SR-230AC-E-M014
5776035302 CD07-5/2XX-SR-NONE-E-M014
5776070220 CD07-5/2XX-SR-024DC-I-G014
5776070360 CD07-5/2XX-SR-096DC-I-G014
5776070720 CD07-5/2SR-G014-024DC-MODI
5776072220 CD07-5/2XX-SR-024DC-I-G014
5776075220 CD07-5/2XX-SR-024AC-I-G014
5776075270 CD07-5/2XX-SR-110AC-I-G014
5776075280 CD07-5/2XX-SR-230AC-I-G014
5776075302 CD07-5/2XX-SR-NONE-I-G014
5776080220 CD07-5/2XX-SR-024DC-E-G014
5776085220 CD07-5/2XX-SR-024AC-E-G014
5776085270 CD07-5/2XX-SR-110AC-E-G014
5776085280 CD07-5/2XX-SR-230AC-E-G014
5776085302 CD07-5/2XX-SR-NONE-E-G014
5776220002 SPARE PART KIT CD07-5/2-DO--25?°C
5776220220 CD07-5/2XX-DO-024DC-I-M014
5776225280 CD07-5/2XX-DO-230DC-I-M014
5776225302 CD07-5/2XX-DO-NONE-I-M014
5776230220 CD07-5/2XX-DO-024DC-E-M014
5776235280 CD07-5/2XX-DO-230AC-E-M014
5776235302 CD07-5/2XX-DO-NONE-E-M014
5776270220 CD07-5/2XX-DO-024DC-I-G014
5776270720 CD07-5/2DS-G014-024DC-MODI
5776270770 CD07-5/2DS-G014-110DC-MODI
5776270870 CD07-5/2DS-G014-110DC-MODI
5776272220 CD07-5/2XX-DO-024DC-I-G014
5776275220 CD07-5/2XX-DO-024AC-I-G014
5776275270 CD07-5/2XX-DO-110AC-I-G014
5776275280 CD07-5/2XX-DO-230AC-I-G014
5776275302 CD07-5/2XX-DO-NONE-I-G014
5776280220 CD07-5/2XX-DO-024DC-E-G014
5776285270 CD07-5/2XX-DO-110AC-E-G014
5776285280 CD07-5/2XX-DO-230AC-E-G014
5776285302 CD07-5/2XX-DO-NONE-E-G014
5776600220 CD07-5/2XX-SR-024DC-I-NAMU
5776605280 CD07-5/2XX-SR-230AC-I-NAMU
5776605302 CD07-5/2XX-SR-NONE-I-NAMU
5776620220 CD07-5/2XX-DO-024DC-I-NAMU
5776625280 CD07-5/2XX-DO-230AC-I-NAMU
5776625302 CD07-5/2XX-DO-NONE-I-NAMU
5776840220 CD07-5/2XX-DO-024DC-I-G014
5776845280 CD07-5/2XX-DO-230AC-I-G014
5776845302 CD07-5/2XX-DO-NONE-I-G014
5776870990 CD07-5/2SR-G014-036DC
5776880220 CD07-3/2SR-M014-024DC-MODI
5776880270 CD07-3/2SR-M014-110DC-MODI
5776920002 SPARE PART KIT CD07-5/3CC--30°C
5776920220 CD07-3/3CC-M014-024DC-MODI
5776920270 CD07-3/3CC-M014-110DC-MODI
5776930002 ERSATZTEILP??CKCHEN (F??R 57769302.0) -ET-
5776930220 CD07-2/2SR-M014-024DC-MODI
5776930270 CD07-2/2SR-M014-110DC-MODI
5776930360 CD07-2/2SR-M014-096DC-MODI
5776940220 CD07-3/2SR-M014-024DC-MODI
5776940270 CD07-3/2SR-M014-110DC-MODI
5776940920 CD07-3/2SR-M014-024DC-MODI
5776960220 CD07-5/2XX-SR-024DC-I-G014
5776960970 CD07-5/2SR-G014-110DC-MODI
5776965280 CD07-5/2XX-SR-230AC-I-G014
5776965302 CD07-5/2XX-SR-NONE-I-G014
5776970220 CD07-5/2XX-SR-024DC-I-G014
5776980220 CD07-5/2XX-SR-024DC-I-G014
5776995302 CD07-5/2XX-SR-NONE-I-G014
5777000002 SPARE PART KIT CD04
5777000220 CD04-5/2XX-AR-024DC-I-M010-M010-EN175301
5777003422 COIL 24VDC FORM B -CSA-UL
5777005280 CD04-5/2XX-AR-230AC-I-M010-M010-EN175301
5777005302 CD04-5/2XX-AR-NONE-I-M010-M010
5777007012 SOLENOID COIL 12VDC
5777007022 CO1-FORM_B-024DC-4,8W-22MM
5777007032 SPULE 48V DC
5777007072 SPULE 110V DC
5777007082 SPULE 220V DC
5777007522 SOLENOID COIL 24VAC-(50-60)HZ
5777007542 SPULE 48V-AC
5777007572 SOLENOID COIL 110/115V-(50-60)HZ
5777007582 COIL 220V-50/60HZ
5777050210 CD04-5/2XX-AR-012DC-I-G018-G018-EN175301
5777050220 CD04-5/2XX-AR-024DC-I-G018-G018-EN175301
5777050720 CD04-5/2XX-AR-024DC-I-G018-G018-EN175301
5777055220 CD04-5/2XX-AR-024AC-I-G018-G018-EN175301
5777055270 CD04-5/2XX-AR-110AC-I-G018-G018-EN175301
5777055280 CD04-5/2XX-AR-230AC-I-G018-G018-EN175301
5777055302 CD04-5/2XX-AR-NONE-I-G018-G018
5777055312 CD04-5/2XX-AR-NONE-I-G018-G018
5777060220 CD04-5/2XX-SR-024DC-E-G018-G018-EN175301
5777065220 CD04-5/2XX-SR-024AC-E-G018-G018-EN175301
5777065270 CD04-5/2XX-SR-110AC-E-G018-G018-EN175301
5777065280 CD04-5/2XX-SR-230AC-E-G018-G018-EN175301
5777065302 CD04-5/2XX-SR-NONE-I-G018-G018
5777090220 CD04-5/2XX-AR-024DC-I-D8X1-EN175301-803
5777095280 CD04-5/2XX-AR-220AC-I-D8X1-EN175301-803
5777150220 CD04-5/2XX-SR-024DC-I-G018-G018-EN175301
5777155270 CD04-5/2XX-SR-110AC-I-G018-G018-EN175301
5777155280 CD04-5/2XX-SR-230AC-I-G018-G018-EN175301
5777200220 CD04-5/2XX-DO-024DC-I-M010-M010-EN175301
5777205280 CD04-5/2XX-DO-230AC-I-M010-M010-EN175301
5777205302 CD04-5/2XX-DO-NONE-I-M010-M010
5777250220 CD04-5/2XX-DO-024DC-I-G018-G018-EN175301
5777255220 CD04-5/2XX-DO-024AC-I-G018-G018-EN175301
5777255270 CD04-5/2XX-DO-110AC-I-G018-G018-EN175301
5777255280 CD04-5/2XX-DO-230AC-I-G018-G018-EN175301
5777255302 CD04-5/2XX-DO-NONE-I-G018-G018
5777260220 CD04-5/2XX-DO-024DC-E-G018-G018-EN175301
5777265280 CD04-5/2XX-DO-220AC-E-G018-G018-EN175301
5777265302 CD04-5/2XX-DO-NONE-E-G018-G018
5777400220 CD04-5/3PC-DO-024DC-I-G018-G018-EN175301
5777405280 CD04-5/3PC-DO-230AC-I-G018-G018-EN175301
5777405302 CD04-5/3PC-DO-NONE-I-G018-G018
5777410220 CD04-5/3EC-DO-024DC-I-G018-G018-EN175301
5777415280 CD04-5/3EC-DO-230AC-I-G018-G018-EN175301
5777415302 CD04-5/3EC-DO-NONE-I-G018-G018
5777420220 CD04-5/3CC-DO-024DC-I-G018-G018-EN175301
5777425280 CD04-5/3CC-DO-230AC-I-G018-G018-EN175301
5777425302 CD04-5/3CC-DO-NONE-I-G018-G018
5777700220 CD07-5/3PC-DO-024DC-I-G014
5777705302 CD07-5/3PC-DO-NONE-I-G014
5777710220 CD07-5/3EC-DO-024DC-I-G014
5777715280 CD07-5/3EC-DO-230AC-I-G014
5777715302 CD07-5/3EC-DO-NONE-I-G014
5777720220 CD07-5/3CC-DO-024DC-I-G014
5777725280 CD07-5/3CC-DO-230AC-I-G014
5777725302 CD07-5/3CC-DO-NONE-I-G014
5777750002 SPARE PART KIT CD07-5/3--25?°C
5777750220 CD07-5/3PC-DO-024DC-I-G014
5777755280 CD07-5/3PC-DO-230AC-I-G014
5777755302 CD07-5/3PC-DO-NONE-I-G014
5777760220 CD07-5/3EC-DO-024DC-I-G014
5777765270 CD07-5/3EC-DO-110AC-I-G014
5777765280 CD07-5/3EC-DO-230AC-I-G014
5777765302 CD07-5/3EC-DO-NONE-I-G014
5777770220 CD07-5/3CC-DO-024DC-I-G014
5777775220 CD07-5/3CC-DO-024AC-I-G014
5777775270 CD07-5/3CC-DO-110AC-I-G014
5777775280 CD07-5/3CC-DO-230AC-I-G014
5777775302 CD07-5/3CC-DO-NONE-I-G014
5777945302 CD07-5/3EC-DO-NONE-E-G014
5777955280 CD07-5/3CC-DO-230AC-E-G014
5777955302 CD07-5/3CC-DO-NONE-E-G014
5790000092 AIR CONNECTION MODUL
5790002202 VENTILATON LINKS, G3/8"
5790002212 VENTILATON VERKETTUNG
5790002222 VENTILATON RECHTS, VERSCHLOSSEN
5790002232 VENTILATON LINKS, 10X1
5790002242 VENTILATON RECHTS, G3/8
5790005302 SILENCER TYP579, NW4 (LANG)
5790005312 SILENCER TYP579, KPL.(KURZ)
5790005332 SILENCER TYP579(BT=10STCK)KURZ
5790005352 SILENCER TYP579,(100-FACH)KURZ
5790050060 V579-5/2OC-DA08-024DC-04-EV1
5790050070 V579-5/2OC-DA08-024DC-04-RV7-MODI
5790050080 V579-5/2OC-DA08-024DC-04-RV1-MODI
5790050090 V579-5/2OC-DA06-024DC-04-RV2-MODI
5790060000 V579-3/2NC-DA04-024DC-1,2-RV2-MODI
5790060010 V579-3/2NC-DA04-024DC-1,2-RV5-MODI
5790060020 V579-3/2NC-DA04-024DC-1,2-RV9-MODI
5790060030 V579-3/2NC-DA04-024DC-1,2-RV4-MODI
5790060050 V579-3/2NC-DA04-024DC-1,2-RV10-MODI
5790060080 V579-3/2NC-DA04-024DC-1,2-RV1-MODI
5790060090 V579-3/2NC-DA06-024DC-1,2-RV1-MODI
5790060110 V579-3/2NC-DA06-024DC-1,2-RV4-MODI
5790060130 V579-3/2NC-DA06-024DC-1,2-EV4-MODI
5790067704 TAPPET POM
5790068400 V579-3/2NC-DA08-024DC-04-EV4-MODI-LED
5790068410 V579-3/2NC-DA06-024DC-04-RV4-MODI-LED
5790068420 V579-3/2NC-DA06-024DC-04-RV2-MODI-LED
5790068430 V579-3/2NC-DA06-024DC-04-RV1-MODI-LED
5790068440 V579-3/2NC-DA08-024DC-04-EV4-MODI
5790068450 V579-3/2NC-DA08-024DC-04-RV4-MODI-LED
5790068460 V579-3/2NC-DA08-024DC-04-RV2-MODI-LED
5790068470 V579-3/2NC-DA08-024DC-04-RV1-MODI-LED
5790069200 V579-3/2NC-DA06-024DC-04-EV4-MODI
5790069270 V579-3/2NC-DA08-024DC-04-EV4-MODI
5790069280 V579-3/2NC-DA06-024DC-04-EV4-MODI
5790069310 V579-3/2NC-D014-024DC-04-RV4-USA
5790069330 V579-3/2NC-D014-024DC-04-RV1-MODI-USA
5790069360 V579-3/2CC-DA08-024DC-04-EV4-LED-MODI
5790069380 V579-3/2NC-DA04-024DC-02-RV4-MODI
5790069390 V579-3/2NC-DA04-024DC-02-RV2-MODI
5790069400 V579-3/2NO-DA04-024DC-02-RV2-MODI
5790069410 V579-3/2NO-DA04-024DC-02-RV1-MODI
5790069510 V579-3/2NO-DA08-024DC-04-EV1-MODI
5790069520 V579-3/2NC-DA08-230AC-04-EV4-MODI
5790069680 V579-3/2NO-DA08-024DC-04-RV2-MODI
5790069690 V579-3/2NC-DA08-024DC-04-RV10-MODI
5790069730 V579-3/2NC-DA06-024DC-04-RV4-MODI
5790069740 V579-3/2NC-DA06-024DC-04-RV2-MODI
5790069750 V579-3/2NC-DA06-024DC-04-RV1-MODI
5790069790 V579-3/2NO-DA08-024DC-04-EV1-MODI
5790069810 V579-3/2NC-DA08-024DC-04-EV1
5790069850 V579-3/2NC-DA08-024DC-04-RV4-MODI
5790069860 V579-3/2NC-DA08-024DC-04-RV2-MODI
5790069910 V579-3/2NC-DA08-024DC-04-EV4-MODI
5790069920 V579-3/2NC-DA06-024DC-04-RV1-MODI
5790180220 V579-3/2NC-DA04-024DC-1,2-RV1-MODI
5790200210 V579-3/2NC-DA06-012DC-1,2-RV1
5790200220 V579-3/2NC-DA06-024DC-1,2-RV1
5790200620 V579-3/2NC-DA06-024DC-1,2-RV1-LED
5790205220 V579-3/2NC-DA06-024AC-1,2-RV1
5790205270 V579-3/2NC-DA06-110AC-1,2-RV1
5790205280 V579-3/2NC-DA06-230AC-1,2-RV1
5790205680 V579-3/2NC-DA06-230AC-1,2-RV1-LED
5790280220 V579-3/2NC-DA06-024DC-1,2-RV1-MODI
5790400210 V579-3/2NC-DA06-012DC-04-RV1
5790400220 V579-3/2NC-DA06-024DC-04-RV1
5790400310 V579-3/2NC-D014-012DC-04-RV1-USA
5790400320 V579-3/2NC-D014-024DC-04-RV1-USA
5790400720 V579-3/2NC-D014-024DC-04-RV1-USA-LED
5790405370 V579-3/2NC-D014-110AC-04-RV1-USA
5790410310 V579-3/2NO-D014-012DC-04-RV1-USA
5790410320 V579-3/2NO-D014-024DC-04-RV1-USA
5790500210 V579-3/2NC-DA06-012DC-04-RV1
5790500220 V579-3/2NC-DA06-024DC-04-RV1
5790500310 V579-3/2NC-D014-012DC-04-RV1-USA
5790500620 V579-3/2NC-DA06-024DC-04-RV1-LED
5790505220 V579-3/2NC-DA06-024AC-04-RV1
5790505270 V579-3/2NC-DA06-110AC-04-RV1
5790505280 V579-3/2NC-DA06-230AC-04-RV1
5790505680 V579-3/2NC-DA06-230AC-04-RV1-LED
5790510210 V579-3/2NO-DA06-012DC-04-RV1
5790510220 V579-3/2NO-DA06-024DC-04-RV1
5790510620 V579-3/2NO-DA06-024DC-04-RV1-LED
5790515220 V579-3/2NO-DA06-024AC-04-RV1
5790515270 V579-3/2NO-DA06-110AC-04-RV1
5790515280 V579-3/2NO-DA06-230AC-04-RV1
5790515680 V579-3/2NO-DA06-230AC-04-RV1-LED
5790520210 V579-3/2NO-DA06-012DC-04-RV1-EXT
5790520220 V579-3/2NO-DA06-024DC-04-RV1-EXT
5790520620 V579-3/2NO-DA06-024DC-04-RV1-EXT-LED
5790525220 V579-3/2NO-DA06-024AC-04-RV1-EXT
5790525270 V579-3/2NO-DA06-110AC-04-RV1-EXT
5790525280 V579-3/2NO-DA06-230AC-04-RV1-EXT
5790525680 V579-3/2NO-DA06-230AC-04-RV1-EXT-LED
5790570210 V579-3/2NC-DA06-012DC-04-RV1-EXT
5790570220 V579-3/2NC-DA06-024DC-04-RV1-EXT
5790570620 V579-3/2NC-DA06-024DC-04-RV1-EXT-LED
5790575220 V579-3/2NC-DA06-024AC-04-RV1-EXT
5790575270 V579-3/2NC-DA06-110AC-04-RV1-EXT
5790575280 V579-3/2NC-DA06-230AC-04-RV1-EXT
5790575680 V579-3/2NC-DA06-230AC-04-RV1-EXT-LED
5790600000 V579-3/2NC-DA08-04-RV1
5790600010 V579-3/2NO-DA08-04-RV1
5790600210 V579-3/2NC-DA08-012DC-04-RV1
5790600220 V579-3/2NC-DA08-024DC-04-RV1
5790600620 V579-3/2NC-DA08-024DC-04-RV1-LED
5790605220 V579-3/2NC-DA08-024AC-04-RV1
5790605270 V579-3/2NC-DA08-110AC-04-RV1
5790605280 V579-3/2NC-DA08-230AC-04-RV1
5790605680 V579-3/2NC-DA08-230AC-04-RV1-LED
5790610210 V579-3/2NO-DA08-012DC-04-RV1
5790610220 V579-3/2NO-DA08-024DC-04-RV1
5790610620 V579-3/2NO-DA08-024DC-04-RV1-LED
5790615220 V579-3/2NO-DA08-024AC-04-RV1
5790615270 V579-3/2NO-DA08-110AC-04-RV1
5790615280 V579-3/2NO-DA08-230AC-04-RV1
5790615680 V579-3/2NO-DA08-230AC-04-RV1-LED
5790620210 V579-3/2NO-DA08-012DC-04-RV1-EXT
5790620220 V579-3/2NO-DA08-024DC-04-RV1-EXT
5790620620 V579-3/2NO-DA08-024DC-04-RV1-EXT-LED
5790625220 V579-3/2NO-DA08-024AC-04-RV1-EXT
5790625270 V579-3/2NO-DA08-110AC-04-RV1-EXT
5790625280 V579-3/2NO-DA08-230AC-04-RV1-EXT
5790625680 V579-3/2NO-DA08-230AC-04-RV1-EXT-LED
5790670210 V579-3/2NC-DA08-012DC-04-RV1-EXT
5790670220 V579-3/2NC-DA08-024DC-04-RV1-EXT
5790670620 V579-3/2NC-DA08-024DC-04-RV1-EXT-LED
5790675220 V579-3/2NC-DA08-024AC-04-RV1-EXT
5790675270 V579-3/2NC-DA08-110AC-04-RV1-EXT
5790675280 V579-3/2NC-DA08-230AC-04-RV1-EXT
5790675680 V579-3/2NC-DA08-230AC-04-RV1-EXT-LED
5790700320 V579-5/2OC-D014-024DC-04-RV1-USA
5790800210 V579-5/2OC-DA06-012DC-04-RV1
5790800220 V579-5/2OC-DA06-024DC-04-RV1
5790800620 V579-5/2OC-DA06-024DC-04-RV1-LED
5790805220 V579-5/2OC-DA06-024AC-04-RV1
5790805270 V579-5/2OC-DA06-110AC-04-RV1
5790805280 V579-5/2OC-DA06-230AC-04-RV1
5790805680 V579-5/2OC-DA06-230AC-04-RV1-LED
5790870620 V579-5/2OC-DA06-024DC-04-RV1-EXT-LED
气动控制元件
气动基本回路是组成气动控制系统的基本单元，也是设计气动控制回路的基础。气动基本回路分为压力控制、速度控制和方向控制基本回路。
压力控制回路
压力控制回路的作用是调压和稳压。一次压力控制回路指用安全阀将空气压缩机的输出压力控制在 0.8MPa 左右。二次压力控制回路指把经一次调压后的压力 p1 再经减压阀减压稳压后所得到的输出压力p2（称为二次压力），作为气动控制 系统的工作气压使用。
高低压选择回路由多个减压阀控制，实现多个压力同时输出。用于系统同时需要高低压力的场合。
高低压选择回路
利用换向阀和减压阀实现高低压切换输出，用于系统分别需要高低压力的场合。
方向控制回路
单作用气缸换向回路利用电磁换向阀通断电，将压缩空气间歇送人气缸的无杆腔，与弹簧一起推动活塞往复运动。双作用气缸换向回路分别将控制信号到气控换向阀的 K1、K2 的控制腔，使换向阀的换向，从而控制压缩空气实现使气 缸的活塞往复运动。
1、差动控制回路是用二位三通手拉阀控制差动联接气缸，实现气缸的差动控制。
2、多位运动控制回路给各三位换向阀分别加入开关量信号时，各气缸可分别完成向左、 向右、停止三种运动状态。当信号解除后，缸可以停止在原位；若更换不同中为机能的三位换向阀，缸可以得到不同的停留状态。
速度控制回路
1、单作用气缸速度控制回路
双向调速回路：采用二只单向节流阀串联分别实现进气节流和排气节流，控制气缸活塞的运动速度。
慢进快退调速回路：在图示回路中当有控制信号K时，换向阀换向，其输出经 节流阀、快排阀入单作用缸的无杆 腔，使活塞杆慢速伸出，伸出速度的大小取 决于节流阀的开口量；当无控制信号K时，换向阀复位，缸无杆腔余气经快排阀排入大气，活塞在弹 簧作用下缩回。
2、双作用气缸速度控制回路
双向调速回路：在换向阀的排气口上安装排气节流阀，两种调速回路的调速效果基本相同。
慢进快退回路：控制活塞杆伸出时采用排气节流控制，活塞杆慢速伸出；活塞杆缩回时，无杆腔余气经快排阀排空，活塞杆快速退回。
3、缓冲回路是对于气缸行程较长速度较快的应用场合，可以通过回路来实现缓冲；
气—液联动速度控制回路
在气—液联动速度控制回路中，采用气—液联动目的，使气缸得到平稳的运动速度。常用两种方式：气—液阻尼缸的回路；用气—液转换器的回路。 慢进快退回路：在气—液阻尼缸中，气缸是动力缸，油缸是阻尼缸，气缸与阻尼缸串联联接。
变速回路
气液缸串联调速回路：通过单向节流阀，利用液压油不可压缩的特点，实现气缸单方向的无级调速，油杯用于补充油缸漏油。 气液缸串联变速回路：当活塞杆右行到撞块碰到机动换向阀后开始作慢速运动。改变撞块的安装位置，即可改变开始变速的位置。
气-液转换器的调速回路
气-液转换器是一种气液共存又可以相互转换的气~液转换元件。其作用是在一段输入压缩空气时，另一端输出液体。
安全保护回路
往复运动回路
气动执行元件
气动执行器是将压缩空气的压力能转变成机械能，实现往复直线运动或旋转、摆动运动的装置。它包括气缸、气马达和摆动式气马达。
气缸
气缸是将气体压力能转变为机械能，实现直线运动的执行器，广泛应用于气动机械中的夹紧、送料等场合。气缸具有结构简单、维修方便、运动速度快等特点， 与其他能源的执行器柑比，更多地被用在自动化机械中。通常气缸采用压力为 0.4MPa 至0.6MPa 的气源，因而其输出力不可能很大，同时又由于空气介质有压 缩性，受外界负载变化的影响较大，所以在需要精确的速度控制、减少负载变化 对运动的影响时，常与液压缸配合组成气-液阻尼缸使用。
气缸的种类很多，根据使用的要求不同，可制成内径3-400mm 的各种结构气 缸。其中常用的是双作用单活塞杆气缸，它利用空气压力轮流作用在活塞两侧 面上，产生伸出和缩回力。由于活塞杆的影响，两侧面的有效面积不等，所以内 缩行程的拉力比外伸出程的推力小，这在以相同气压推、拉相同负载时才要考虑。 气缸缸筒通常山金属无缝管制成。缸筒内表面加工成很高光洁度或镀有硬铬，使 摩擦和磨损减至小一般端盖由铝合金压铸而成并借助拉杆螺栓夹紧缸筒，小型 气缸用螺纹或碾边固定缸筒气缸密封件的好坏直接影响气缸的性能和使用寿命， 因此，正确地选择和使用各种用途的密封件，对保证气缸的可靠工作是十分重要的。
缓冲机构
当活塞运动接近行程末端时，由于具有较高的速度，如不采取措施，活塞就会以很大的力量撞击端盖，引起振动或损坏机件，为此，在气缸内常加入缓冲装置。 对小气缸常用橡胶减震垫来吸收冲击，对于大气缸可用气垫缓冲来减振，即在活 塞端部增加缓冲柱塞，端盖上开有柱塞孔并加装节流阀和单向阀。 当活塞运动到接近行程末端，缓冲柱塞1进入端盖上的柱塞孔3 时，在排气腔 内的剩余气体只能从节流阀 排出衫成背压.成为气垫.使活塞的运动速度减慢、因此.它实际[是利用腔内空气被压缩以吸收运句部件的动能来达到缓冲的。调整 节流阀的开度可控制活塞的缓冲程度。当活塞反向运动时，气流经过单向阀
气缸的安装方式 根据工作要求，气缸的安装分固定和轴销两种方式。固定式气缸指气缸本体固定，活塞杆只在本体的轴心上移动，有底座式和法兰式;轴销式气缸指气缸本体 以轴销为支持点，随负载的动作要求而摆动。表1 表示了气缸的安装方式。
常用气缸的计算 这里以常用的双作用单活塞杆气缸为例，介绍一些常用的计算公式。气缸理论输出力的计算公式为 式中F1—活塞杆伸出时的理论推力，N;F2—活塞杆缩回时的理论拉力，N;D—活塞直径(气缸 式中Q—自由空气消耗量，m3/min;D—气缸内径，m;d—活塞杆直径，m L—行程，m;P—气缸工作压力(表压)，MPa;pa—标准大气压，pa=0.1013MPan 气缸每分钟动作次数根据气缸自由空气消耗量即可选用压缩机容量。
气动技术，全称气压传动与控制技术，是以空气压缩机为动力源，以压缩空气为工作介质，进行能量传递和信息传递的工程技术。气动技术是生产过程自动化和机械化的有效手段之一，具有高速高效、清洁安全、低成本、易维护等优点，被广泛应用于轻工机械领域中，在食品包装及生产过程中也正在发挥越来越重要的作用。
气动技术应用的典型的代表是工业机器人。代替人类的手腕、手以及手指能正确并迅速的做抓取或放开等细微的动作。除了工业生产上的应用之外，在游乐场的过山车上的刹车装置，机械制作的动物表演以及人形报时钟的内部，均采用了气动技术，实现细小的动作。
液压可以得到巨大的输出力但灵敏度不够；另一方面要用电能来驱动物体，总需要用一些齿轮，同时不能忽视漏电所带来的危险。而与此相比，使用气动技术即安全又对周围环境无污染，即使在很小的空间里，也可以实现细小的动作。如果尺寸相同，其功率能超过电气。与此特性所带来的需求完全相一致的就是半导体产业。在生产线上，实现前进、停止、转动等细小简单的动作，在自动化设备中不可或缺。在其它方面，如制造硅晶片生产线上不可缺少的电阻液涂抹工序中使用的定量输出泵以及与此相配合的周边机器。
另外，虽然气动技术在各工业部门已经获得了应用，但是，在许多应用之间还是存在着相当大差异的。就应用气动技术来说，基本条件就是要有一台空气压缩机，对已有用于其它用途的空气压缩机的地方，应用气动技术就更方便些。特别是在--些非生产部门，如畜牧业、种植业或服装业，情况更是如此。在机器设备制造领域中，大多数场合都有空气压缩机，且气动技术已有应用，每个应用项目在本质上也有许多相似之处，因此，我们可以对机器设备制造中的气动技术应用情况进行归纳终结，并列成表格形式。
气动技术适用、气垫床、省力产业、机器人、真空搬运、空气门、气控喷涂、空气幕帘、空调计量设备、气动量仪、液面检测装置纺织、气动精纺化学工业、过程控制、液化气体控制、可动元件、纯流体元件海洋开发、水中空气呼吸器、海底送气系统、潜水车辆、气动门、气动离合器、气动刹车 空气轮胎矿山业、风镐(凿岩机)造船、气垫船气动工具、气动研磨机、空气锤、空气传送带工业机械、机床的自动控制、食品机械自控制、包装机械的自动控制、冲压机械的自动控制。
首页
飞语
我的
反馈
拨号
