贝加莱模拟量输入模块X67AI2744，奥地利贝加莱B&R全新原厂原装，质量保证，特价优势供应，货期短，发货快；上海韦米机电设备有限公司主营产品：液压配件、柱塞泵、齿轮泵、叶片泵、电磁阀、节流阀、比例阀、溢流阀、换向阀、流量阀；伺服驱动器、伺服模块、伺服电机、探头、传感器、电缆、电源模块、编码器、接近开关等。欢迎来电咨询。

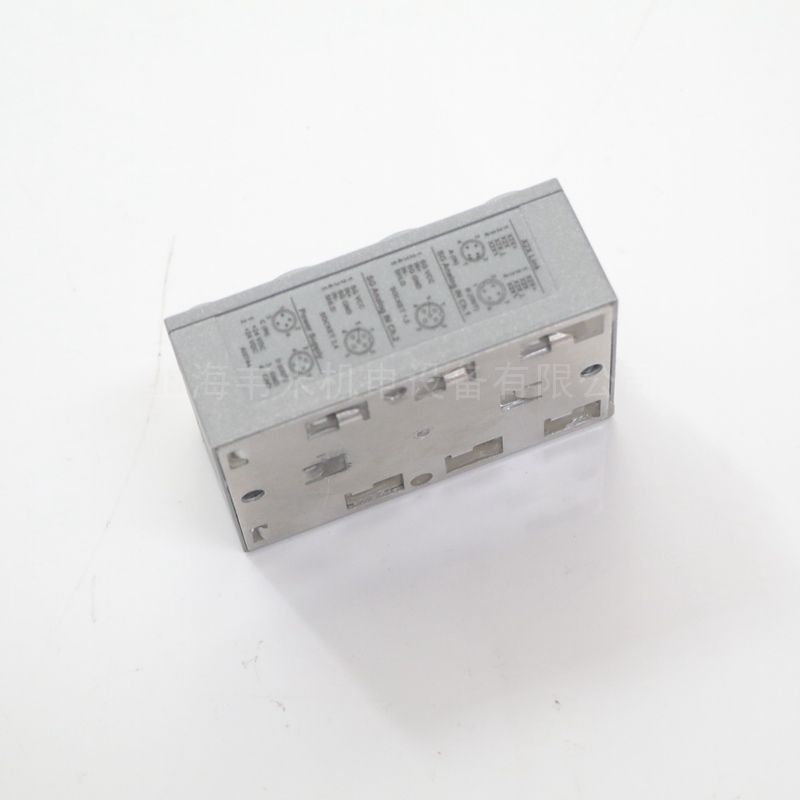

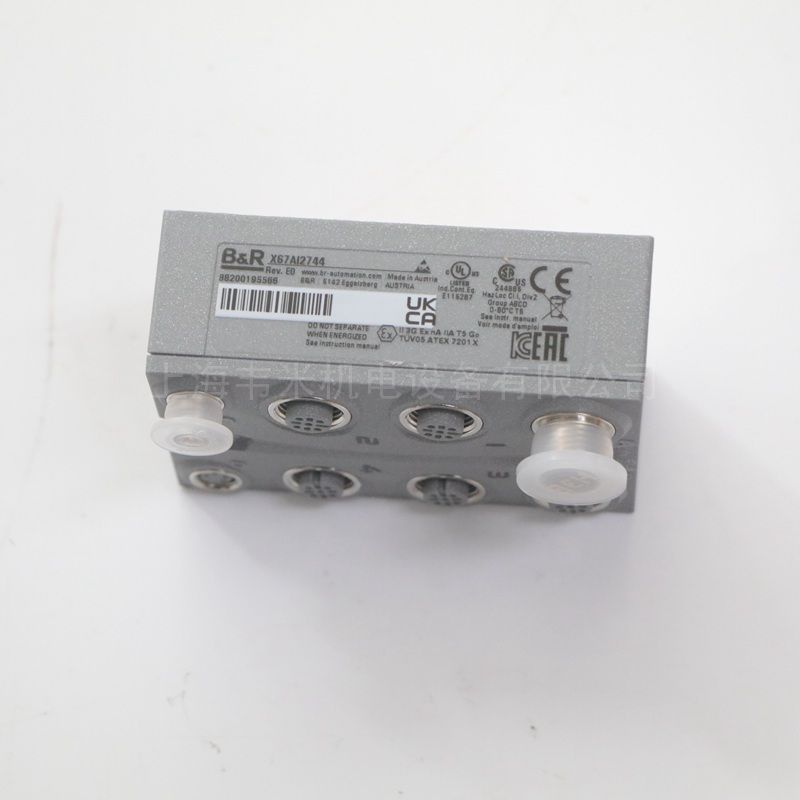

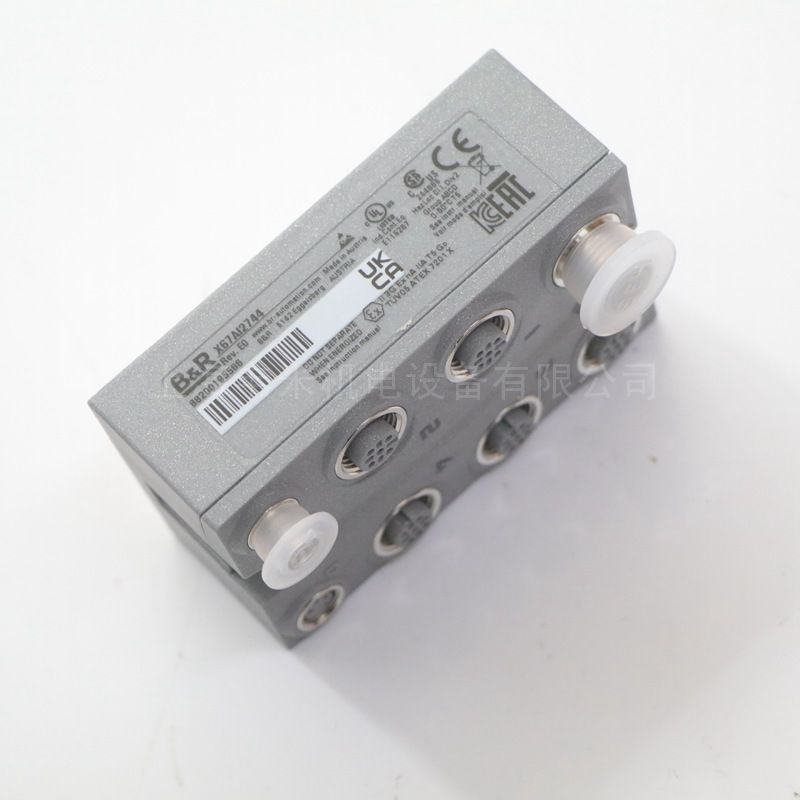

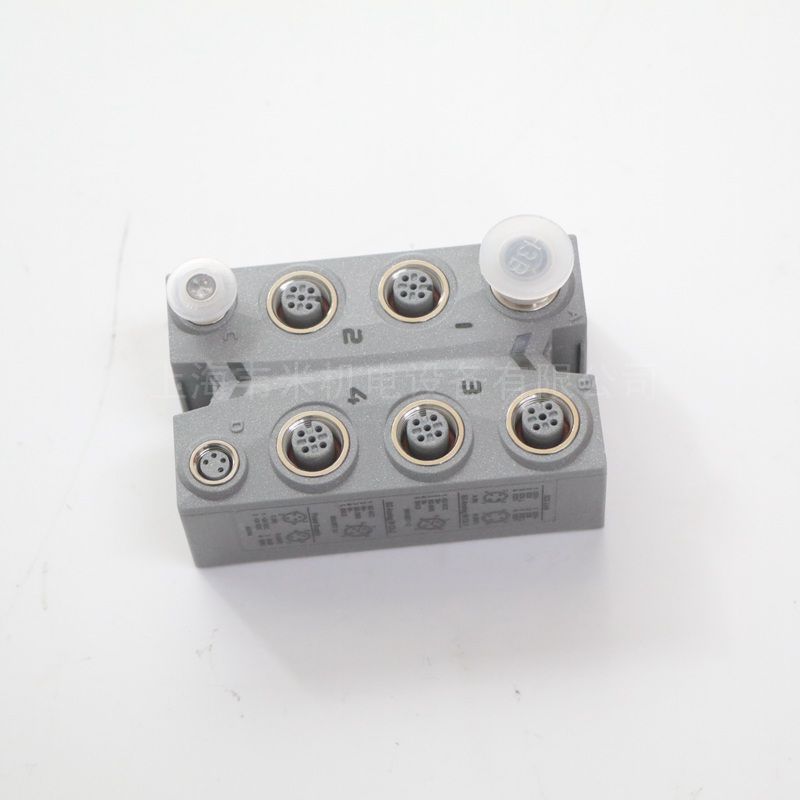

贝加莱B&R模拟量输入模块X67AI2744
物料号:
X67AI2744
描述:
2个全桥应变计输入
数据输出速率可配置为2.5 Hz至7.5 kHz
该模块配备了2个输入端，用于评估全桥应变计，可与4线和6线应变计称重传感器配合使用。该模块应用的概念需要在测量系统中进行校准。这种校准补偿或消除了测量电路中的绝对不准确（例如组件公差、有效桥电压或零偏移）。与绝对（校准）值相关的测量精度仅因工作温度变化的负面影响而变化。
简短说明
I/O模块2全桥应变计输入
一般信息
B&R ID代码0x8820
状态指示器通道状态、操作状态、模块状态
诊断
模块运行/错误是，使用LED状态指示灯和软件
断路是，使用LED状态指示灯和软件
使用LED状态指示灯和软件输入Yes
连接类型
X2X链路M12，B编码
输入4x M12，A编码
输入/输出电源M8，4针
电力消耗
巴士0.75 W
内部I/O 2.4 W
认证证书
CE是
UKCA是
ATEX 2区，II 3G Ex nA IIA T5 Gc
IP67，Ta=0-高60°C
TÜV 05 ATEX 7201X
UL认证E115267
工业控制设备
HazLoc cCSAus 244665
过程控制设备
用于危险场所
I类，2区，ABCD组，T5
KC是
I/O电源
标称电压24 VDC
电压范围18至30 VDC
集成保护反极性保护
全桥应变计
应变计系数2至256 mV/V，可使用软件配置
连接4线或6线连接
输入类型差分，用于评估全桥应变计
数字转换器分辨率24位
转换时间取决于配置的数据输出速率
数据输出速率为每秒2.5至7500个样本，可使用软件（fDATA）进行配置
输入过滤器
截止频率5 kHz
订单3
斜率60 dB
ADC滤波器特性Sigma-delta，请参阅“Sigma-denta A/D转换器的滤波器特性”一节
工作范围/测量传感器85至5000Ω
电缆长度的影响见“计算示例”一节，传感器电缆长度：大30m
输入保护RC保护
共模范围0至3 VDC
输入“输入+”和“输入-”的允许输入电压范围（相对于电位应变计GND）
输入和总线之间的绝缘电压500Veff
Sigma-delta转换程序
数字值输出
断桥供电线路值接近0
传感器断线值接近±结束值（状态位“线路监测”设置在寄存器“模块状态”中）
值0xFF800001到0x007FFFFF的有效范围（-8388607到8388607）
应变计供应
电压5.5 VDC/大65 mA
防短路和过载是
短路保护大电压降。65 mA和25°C时为0.2 VDC
量化
LSB值（16位）
2 mV/V 336 nV
4 mV/V 671 nV
8 mV/V 1.343µV
16 mV/V 2.686µV
32 mV/V 5.371µV
64毫伏/伏10.74µV
128毫伏/伏21.48µV
256 mV/V 42.97µV
LSB值（24位）
2 mV/V 1.31 nV
4 mV/V 2.62 nV
8 mV/V 5.25 nV
16毫伏/伏10.49毫伏
32毫伏/伏20.98毫伏
64毫伏/伏41.96毫伏
128毫伏/伏83.92毫伏
256毫伏/伏167.85毫伏
温度系数30 ppm/°C
大增益漂移12 ppm/°C
大偏移漂移2ppm/°C
非线性<10ppm
电气性能
电气隔离
总线与模拟输入和应变计电源电压隔离
通道未与I/O电源隔离
操作条件
安装方向
水平是
垂直是
安装海拔高度
0至2000米无限制
>2000米每100米环境温度降低0.5°C
防护等级符合EN 60529 IP67
环境条件
温度
操作-25至60°C
降级-
储存-40至85°C
运输-40至85°C
机械性能
尺寸
宽度53毫米
高度85毫米
深度42毫米
重量190克
连接扭矩
大M8。0.4牛米
M12大值。0.6牛米
贝加莱模拟量输入模块
X67AI1223
X67AI1233
X67AI1323
X67AI1333
X67AI2744
X67AI4850
X67AM1223
X67AM1323
X67UM1352
贝加莱模拟量输出模块
X67AM1223
X67AM1323
X67AO1223
X67AO1323
贝加莱模拟量混合模块
X67AM1223
X67AM1323
贝加莱温度模块
X67AT1311
X67AT1322
X67AT1402
贝加莱电机模块
X67MM2436
X67SM2436
X67SM4320
贝加莱其它功能
X67DS438A
X67UM1352
贝加莱计数模块
X67DC1198
X67DC2322
X67DM1321
X67DM1321.L08
X67DM1321.L12
X67DM9321
X67DM9321.L12
贝加莱多功能
X67DC1198
X67DC2322

贝加莱B&R总线接收器
物料号:
X20BT9100
描述:
X2X链路总线变送器
用于系统的无缝扩展
长达100米的管片长度
内部I/O电源的电源
仅在侧插槽上操作
总线变送器用于X20系统的无缝扩展。车站之间的距离可达100米。
总线变送器模块仅允许与内部I/O电源连接的总线模块一起操作（例如X20BM11）。
如果电源用于内部I/O电源，则任何其他模块都不允许为该电位组供电。必须使用带有总线模块X20BM01的I/O模块来隔离电位组。
简短描述
总线变送器X2X带I/O电源的链路总线变送器
一般信息
B&R ID代码0x1BC2
状态指示灯X2X总线功能、操作状态、模块状态
Diagnostics
模块运行/错误是，使用LED状态指示灯和软件
X2X总线功能是，使用LED状态指示灯
功耗
总线0.5 W
内部I/O
作为总线变送器0.1 W
另外作为电源模块0.6 W
致动器（电阻式）引起的额外功耗[W]-
认证
CE是
UKCA是
ATEX 2区，II 3G Ex nA nC IIA T5 Gc
IP20，Ta（参见X20用户手册）
FTZÚ09 ATEX 0083X
UL cULus E115267
工业控制设备
HazLoc cCSA us 244665
过程控制设备
用于危险场所
I级，2区，ABCD组，T5
EAC是
KC是
输入I/O电源
输入电压24 VDC-15%/+20%
保险丝所需线路保险丝：10 A，慢速熔断
反极性保护无
输出I/O电源
标称输出电压24 VDC
短路行为所需线路保险丝
允许接触负载10 A
操作条件
安装方向
水平是
垂直是
海平面以上安装高程
0至2000米无限制
>2000 m环境温度每100 m降低0.5°C
防护等级符合EN 60529 IP20
环境条件
温度
活动
水平安装方向-25至60°C
垂直安装方向-25至50°C
减额-
储存-40至85°C
运输-40至85°C
相对湿度
运行5%至95%，无冷凝
储存5%至95%，非冷凝
输送5%至95%，无冷凝
机械性能
注意：单独订购1x接线板X20TB06或X20TB12。
单独订购1x总线模块X20BM11或X20BM15。
间距12.5+0.2mm

贝加莱B&R CPU模块
物料号:
X20CP1301
描述:
与集成I/O处理器兼容的Intel x86 200 MHz
板载以太网和USB
1个插槽用于模块化接口扩展
30个数字输入/输出和2个模拟输入集成在设备中
1 GB板载闪存驱动器
128 MB DDR3 SDRAM
无风扇设计
没有电池
备份实时时钟
X20 Compact控制器系列具有3个集成I/O模块的特点。该设备配备了30个不同的数字输入/输出和2个模拟输入。1个模拟输入可用于Pt1000电阻温度测量。
X20CP1301配备了Intel x86 200 MHz兼容处理器、128 MB RAM和1 GB内置闪存驱动器。用于存储剩余变量的FRAM具有16kB的可用容量。无风扇和无电池的设计确保了免维护操作。
控制器配有一个以太网、一个USB和一个RS232接口。通过可自由使用的X20通信模块插槽，可以将各种总线和网络系统灵活集成到X20系统中。
简短描述
接口1x RS232、1x以太网、1x USB、1x X2X链路
系统模块控制器
一般信息
B&R ID代码0xE35B
冷却无风扇
状态指示灯CPU功能、以太网、RS232、PLC电源、I/O电源、每个通道的I/O功能
Diagnostics
输出数字输出：是，使用LED状态指示器和软件（输出错误状态）
CPU功能是，使用LED状态指示灯
RS232数据传输是，使用LED状态指示灯
输入模拟输入：是，使用LED状态指示器和软件
以太网是，使用LED状态指示灯
I/O电源是，使用LED状态指示灯
电源电压监测是，使用LED状态指示灯
温度是，使用软件寄存器
支持
控制器冗余否
ACOPOS支持是
可重新操作的I/O通道否
Visual Components支持是
不带接口模块和USB的功耗4.3 W
X2X链路电源的功耗0.8 W
功耗
内部I/O 2.3 W
致动器（电阻式）引起的额外功耗[W]-
信号线类型所有高速数字输入/输出必须使用屏蔽线，线路长度：20米
认证
CE是
UKCA是
ATEX 2区，II 3G Ex nA nC IIA T5 Gc
IP20，Ta（参见X20用户手册）
FTZÚ09 ATEX 0083X
UL cULus E115267
工业控制设备
HazLoc cCSA us 244665
过程控制设备
用于危险场所
I级，2区，ABCD组，T5
DNV温度：B（0至55°C）
湿度：B（高达100）
振动：B（4 g）
EMC:B（桥梁和露天甲板）
LR-ENV1
KR是
ABS是
BV EC33B
温度：5-55°C
振动：4 g
EMC：桥梁和露天甲板
EAC是
CPU和X2X链路电源
输入电压24 VDC-15%/+20%
输入电流值。1个
保险丝集成，无法更换
反极性保护是
X2X链路电源输出
标称输出功率2 W
并联是
冗余操作是
输入I/O电源
输入电压24 VDC-15%/+20%
保险丝所需线路保险丝：10 A，慢速熔断
输出I/O电源
标称输出电压24 VDC
允许接触负载10 A
控制器
实时时钟保持时间至少为300小时（典型值）。25°C下1000小时，1秒分辨率，25°C时-18至28 ppm精度
FPU是
加工机
Vx86EX型
时钟频率200 MHz
一级缓存
数据代码16 kB
程序代码16 kB
二级缓存128 kB
集成I/O处理器在后台处理I/O数据点
模块化接口插槽1
残余变量16 kB FRAM，保留期>10年
任务类周期时间2毫秒
典型指令周期时间0.0419µs
标准存储器
RAM 128 MB DDR3 SDRAM
应用程序内存
类型1 GB eMMC闪存
数据保留期10年
可写入数据量
保证40 TB
5年的结果21.9 GB/天
保证擦除/写入周期20000
纠错码（ECC）是
接口
接口IF1
信号RS232
通过16针接线板X20TB1F的变体连接大距离900米
传输速率。115.2 kbit/s
接口IF2
信号以太网
变体1x RJ45屏蔽
线路长度。2个车站之间100米（路段长度）
传输速率10/100 Mbit/s
转移
物理层10BASE-T/100BASE-TX
半双工是
全双工是
自动协商是
自动MDI/MDIX是
接口IF4
USB 1.1/2.0型
变体类型A
输出电流0.5 A
接口IF6
现场总线X2X链路主机
数字输入
数量14个标准输入，4个高速输入和4个混合通道，使用软件配置为输入或输出
标称电压24 VDC
输入电压24 VDC-15%/+20%
24 VDC下的输入电流X1-标准输入：典型。3.5毫安
X2-标准输入：类型。2.68毫安
X2-高速输入：典型。3.5毫安
X3-混合通道：典型。2.68毫安
输入电路接收器
输入滤波器
硬件标准输入和混合通道：≤200μs
高速输入：≤2μs，用作标准输入时：≤200μs
软件默认值为1毫秒，可在0到25毫秒之间配置，增量为0.1毫秒
连接类型1线连接
输入电阻X1-标准输入：6.8 kΩ
X2-标准输入：8.9 kΩ
X2-高速输入：6.8 kΩ
X3-混合通道：8.9kΩ
附加功能X2-高速数字输入：
2x 250 kHz事件计数，2x AB计数器，ABR增量编码器，方向/频率，周期测量，门测量，差分时间测量，边缘计数器，边缘时间
切换阈值
低<5 VDC
高>15 VDC
AB增量编码器
数量2
编码器输入24 V，不对称
计数器大小32位
输入频率值。100千赫
评估4x
编码器电源模块内部，300mA
编码器电源过载特性防短路、防过载
ABR增量编码器
数量1
编码器输入24 V，不对称
计数器大小32位
输入频率值。100千赫
评估4x
编码器电源模块内部，300mA
编码器电源过载特性防短路、防过载
事件计数器
数量2
方波脉冲信号形式
评估1x
输入频率值。250千赫
计数器频率250 kHz
计数器大小32位
边缘检测/时间测量
可能的测量周期测量、门测量、差分时间测量、边缘计数器、边缘时间
每个模块的测量每个功能2倍
计数器大小32位
输入频率值。10千赫
时间戳1µs分辨率
方波脉冲信号形式
模拟输入
通过不同的端子连接输入±10 V或0至20 mA/4至20 mA
输入类型差分输入
数字转换器分辨率
电压±12位
当前12位
启用1通道的转换时间：100µs
启用2个通道：200µs
输出格式
数据类型INT
电压INT 0x8001-0x7FFF/1 LSB=0x0008=2.441 mV
电流INT 0x0000-0x7FFF/1 LSB=0x0008=4.883μA
信号范围内的输入阻抗
电压20 MΩ
现在的
负载
电压
电流<300Ω
输入保护电源电压接线保护
允许的输入信号
电压。±30伏
电流。±50毫安
过载时数字值的输出可配置
转换程序SAR
输入滤波器三阶低通滤波器/截止频率1 kHz
误差
电压
增益0.18%（Rev.<C0:0.37%）
偏移0.04%（Rev.<C0:0.25%）
现在的
增益0至20 mA=0.15%（Rev.<C0:0.52%）/4至20 mA=0.25%
偏移0至20 mA=0.1%（Rev.<C0:0.4%）/4至20 mA=0.15%
增益漂移
电压0.017%/°C
电流0至20mA=0.015%/°C/4至20mA=0.023%/°C
偏移漂移
电压0.008%/°C
电流0至20mA=0.008%/°C/4至20mA=0.012%/°C
共模抑制
直流70 dB
50赫兹70分贝
共模范围±12 V
信道间串扰<-70dB
非线性
电压<0.025%
电流<0.05%
电阻测量温度输入
数量1
2线连接的恒流电源输入电阻测量
数字转换器分辨率13位
转换时间仅启用温度输入：200µs
启用温度和模拟输入：400µs
转换程序SAR
用于电阻测量的输出格式INT或UINT
传感器
Pt1000-200至850°C
电阻测量范围0.1至4000Ω
温度传感器分辨率1 LSB=0x0005=0.16°C
电阻测量分辨率1 LSB=0x0005=0.49Ω
输入滤波器一阶低通滤波器/截止频率7 Hz
传感器标准EN 60751
共模范围1 V
线性化方法内部
测量电流1 mA
允许的输入信号短期值±30 V
25°C时的误差
增益0.3%（Rev.<C0:1.93%）
偏移0.15%（Rev.<C0:0.32%）
增益漂移0.023%/°C
偏移漂移0.012%/°C
非线性<0.05%
电阻测量值的标准化范围0.1至4000.0Ω
信道间串扰<-70dB
共模抑制
50赫兹>60分贝
温度传感器标准化
Pt1000-200至850°C
数字输出
数量4个标准输出、4个高速输出和4个混合通道，使用软件配置为输入或输出
变体标准输出和混合通道：电流源FET
高速输出：推拉
标称电压24 VDC
开关电压24 VDC-15%/+20%
标称输出电流标准输出和混合通道：0.5 A
高速输出：0.2 A
总标称电流标准输出和混合通道：4 A
高速输出：0.8 A
连接类型1线连接
输出电路标准输出和混合通道：来源
高速输出：接收器或源
输出保护过电流或短路时的热关闭（见“短路峰值电流”值）
用于切换电感负载的内部续流二极管（见“切换电感负载”一节）
脉冲宽度调制
周期持续时间5到65535µs对应于200 kHz到15 Hz
脉冲持续时间0至100，2.5µs
脉冲持续时间的分辨率为配置频率的0.1%
诊断状态标准输出和混合通道：10毫秒延迟的输出监测
高速输出：具有10µs延迟的输出监测
输出关闭时的泄漏电流标准输出和混合通道：5µA
高速输出：25µA
RDS（开）140 mΩ
残余电压标准输出和混合通道：标称电流0.5 A时<0.1 V
高速输出：标称电流0.1 A时<0.9 V
峰值短路电流标准输出和混合通道：<3 A
高速输出：＜20 A
在过载停机或短路停机的情况下打开标准输出和混合通道：约10ms（取决于模块温度）
高速输出：无开关打开
切换延迟
0→ 1标准输出和混合通道：<300µs
高速输出：＜3µs
1.→ 0标准输出和混合通道：<300µs
高速输出：＜3µs
开关频率
电阻负载标准输出和混合通道：500 Hz
高速输出：50 kHz，200 kHz（见“高速数字输出的开关频率降额”一节）
感应负载请参阅“切换感应负载”一节。
关闭感应负载时的制动电压标准输出和混合通道：典型。45伏直流电
电气特性
电气隔离以太网（IF2）和X2X（IF6）相互隔离，与其他接口和PLC隔离
通道与总线隔离
通道未与通道或PLC隔离
操作条件
安装方向
水平是
垂直是
海平面以上安装高程
0至2000米无限制
>2000 m环境温度每100 m降低0.5°C
防护等级符合EN 60529 IP20
环境条件
温度
活动
水平安装方向-25至60°C
垂直安装方向-25至50°C
降额请参阅“高速数字输出的开关频率降额”一节。
储存-40至85°C
运输-40至85°C
相对湿度
运行5%至95%，无冷凝
储存5%至95%，非冷凝
输送5%至95%，无冷凝
机械性能
注X20端盖板（右）包含在交付中
交付时包括3个X20接线板（16针）
交付时包括接口模块槽盖
尺寸
宽度164 mm
高度99 mm
深度75 mm
重量300克


贝加莱B&R CPU模块
物料号:
X20CP1583
描述:
Intel ATOM 333 MHz兼容CPU，带额外的I/O处理器
板载以太网、带轮询响应链和USB的POWERLINK
1个插槽用于模块化接口扩展
CompactFlash作为可移动应用程序存储器
128 MB DDR2 SDRAM
无风扇设计
X20CP1583是入门级的基于Atom的X20控制器。即使是小的控制器也配备了128 MB DDR2 SDRAM。凭借佳的性价比，它具有与所有大型控制器相同的功能。
USB、以太网、POWERLINK和可移动CompactFlash都是标准功能。标准以太网接口能够处理千兆范围内的通信。为了获得更实时的网络性能，板载POWERLINK接口支持轮询响应链接模式（PRC）。
控制器配备了一个可用于X20通信模块的插槽。通过使用通信模块，各种总线和网络系统可以很容易地集成到X20系统中。
简短描述
接口1x RS232、1x以太网、1x POWERLINK（V1/V2）、2x USB、1x X2X链路
系统模块控制器
一般信息
B&R ID代码0xD45B
冷却无风扇
状态指示灯CPU功能、以太网、POWERLINK、CompactFlash、电池
Diagnostics
电池是，使用LED状态指示灯和软件
CPU功能是，使用LED状态指示灯
CompactFlash是，使用LED状态指示灯
以太网是，使用LED状态指示灯
POWERLINK是，使用LED状态指示灯
温度是，使用软件寄存器
支持
控制器冗余否
存储运行状况数据支持是
ACOPOS支持是
Visual Components支持是
不带接口模块和USB的功耗8.2 W
X2X链路电源的功耗1.42 W
功耗
内部I/O 0.6 W
致动器（电阻式）引起的额外功耗[W]-
认证
CE是
UKCA是
ATEX 2区，II 3G Ex nA nC IIA T5 Gc
IP20，Ta（参见X20用户手册）
FTZÚ09 ATEX 0083X
UL cULus E115267
工业控制设备
HazLoc cCSA us 244665
过程控制设备
用于危险场所
I级，2区，ABCD组，T5
DNV温度：B（0至55°C）
湿度：B（高达100）
振动：B（4 g）
EMC:B（桥梁和露天甲板）
LR-ENV1
KR是
ABS是
BV EC33B
温度：5-55°C
振动：4 g
EMC：桥梁和露天甲板
EAC是
CPU和X2X链路电源
输入电压24 VDC-15%/+20%
输入电流大值。一点五一
保险丝集成，无法更换
反极性保护是
X2X链路电源输出
标称输出功率7 W
并联是
冗余操作是
输入I/O电源
输入电压24 VDC-15%/+20%
保险丝所需线路保险丝：大10 A，慢速熔断
输出I/O电源
标称输出电压24 VDC
允许接触负载10 A
电源-一般信息
状态指示灯过载、运行状态、模块状态、RS232数据传输
Diagnostics
RS232数据传输是，使用LED状态指示灯
模块运行/错误是，使用LED状态指示灯和软件
过载是，使用LED状态指示灯和软件
电气隔离
I/O电源-I/O电源否
CPU/X2X链路电源-CPU/X2X链路电源是
控制器
CompactFlash插槽1
实时时钟非易失性，分辨率1秒，在25°C时精度为-10至10 ppm
FPU是
加工机
Atom E620T型
时钟频率333 MHz
一级缓存
数据代码24 kB
程序代码32 kB
二级缓存-
集成I/O处理器在后台处理I/O数据点
模块化接口插槽1
剩余变量大值。64千字节
短任务类周期时间800µs
典型指令周期时间0.01µs
数据缓冲
电池监测是
锂电池小值。23°C环境温度下2年
标准存储器
RAM 128 MB DDR2 SDRAM
用户RAM 1 MB SRAM
接口
接口IF1
信号RS232
通过12针接线板X20TB12的变体连接
大距离900米
大传输速率。115.2 kbit/s
接口IF2
信号以太网
变体1x RJ45屏蔽
大线路长度。2个车站之间100米（路段长度）
传输速率10/100/1000 Mbit/s
转移
物理层10BASE-T/1000BASE-TX/1000BASE-T
半双工是
全双工是
自动协商是
自动MDI/MDIX是
接口IF3
现场总线POWERLINK（V1/V2）管理或控制节点
类型4
变体1x RJ45屏蔽
大线路长度。2个车站之间100米（路段长度）
传输速率100 Mbit/s
转移
物理层100BASE-TX
半双工是
全双工POWERLINK模式：否/以太网模式：是
自动协商是
自动MDI/MDIX是
接口IF4
USB 1.1/2.0型
变体类型A
大输出电流0.5 A
接口IF5
USB 1.1/2.0型
变体类型A
大输出电流0.5 A
接口IF6
现场总线X2X链路主机
电气特性
电气隔离以太网（IF2）、POWERLINK（IF3）和X2X（IF6）相互隔离，与其他接口和PLC隔离
操作条件
安装方向
水平是
垂直是
海平面以上安装高程
0至2000米无限制
>2000 m环境温度每100 m降低0.5°C
防护等级符合EN 60529 IP20
环境条件
温度
活动
水平安装方向-25至60°C
垂直安装方向-25至50°C
减额—参见“减额”一节。
储存-40至85°C
运输-40至85°C
相对湿度
运行5%至95%，无冷凝
储存5%至95%，非冷凝
输送5%至95%，无冷凝
机械性能
注意：单独订购应用程序存储器（CompactFlash）
交付时包含备用电池
交货时包括X20端盖板（右）
交付时包括12针X20接线板
交付时包括接口模块插槽盖
尺寸
宽度150 mm
高度99 mm
深度85 mm
重量400克

贝加莱模拟量输入模块X67AI2744
X67AI2744 X67模拟量输入模块，2路输入测量全桥张力，24-bit转换分辨率

贝加莱模拟量输入模块X67AI2744
CPU是Central Processing Unit(中央处理器)的缩写，CPU的详细参数包括内核结构， 主频，外频，倍频，接口，缓存，多媒体指令集，制造工艺，电压，封装形式，整数单元和浮点单元等。
CPU一般由逻辑运算单元、控制单元和存储单元组成。在逻辑运算和控制单元中包括一些寄存器，这些寄存器用于CPU在处理数据过程中数据的暂时保存。一般在市面上购买CPU时所看到的参数一般是以（主频\前端总线\二级缓存）为格式的。例如Intel P6670的就是（2.16GHz\800MHz\2MB）。
贝加莱模拟量输入模块X67AI2744
ACOPOS伺服驱动器-伺服驱动
8V1010.50-2 伺服驱动 3x110-230V / 1x110-230V 2.0A 0.45kW,进线滤波，集成制动电阻和电气安全重启抑制
8V1016.50-2 伺服驱动 3x110-230V / 1x110-230V 3.2A 0.7kW, 进线滤波，集成制动电阻和电气安全重启抑制
8V1010.00-2 伺服驱动 3x400-480V 1.0A 0.45kW, 进线滤波，集成制动电阻和电气安全重启抑制
8V1016.00-2 伺服驱动 3x400-480V 1.6A 0.7kW, 进线滤波，集成制动电阻和电气安全重启抑制
8V1022.00-2 伺服驱动 3 x 400-480V 2.2A 1kW,进线滤波，集成制动电阻和电气安全重启抑制
8V1045.00-2 伺服驱动 3 x 400-480V 4.4A 2kW,进线滤波，集成制动电阻和电气安全重启抑制
8V1090.00-2 伺服驱动 3 x 400-480V 8.8A 4kW,进线滤波，集成制动电阻和电气安全重启抑制
8V1180.00-2 伺服驱动 3 x 400-480V 19A 9kW，集成进线滤波器，制动电阻，DC 总线电源和电气安全重启抑制
8V1320.00-2 伺服驱动 3 x 400-480V 34A 16kW，集成进线滤波器，制动电阻，DC 总线电源和电气安全重启抑制
8V1640.00-2 伺服驱动 3 x 400-480V 64A 32kW，集成进线滤波器，制动电阻，DC 总线电源和电气安全重启抑制
8V128M.00-2 伺服驱动 3 x 400-480V 128A 64kW，集成进线滤波器，制动电阻，DC 总线电源和电气安全重启抑制
ACOPOS伺服驱动器-插入式模块
8AC110.60-2 ACOPOS 插入式模块，CAN接口
8AC112.60-1 ACOPOS 插入式模块，Ethernet POWLINK接口
8AC120.60-1 ACOPOS 插入式模块，EnDat编码器和正弦增量式编码器接口
8AC122.60-2 ACOPOS 插入式模块，旋变接口
8AC123.60-1 ACOPOS 插入式模块，增量式编码器和SSI绝对式编码器接口
8AC130.60-1 ACOPOS 插入式模块，8路数字量I/O可成对配置成24V输入或输出400/100mA,2路数字量输出2A，另购TB712 端子排
8AC131.60-1 ACOPOS 插入式模块，2路模拟量输入 ±10V，2路数字量I/O可作为24V输入或45mA输出， 另购TB712 端子排
8AC140.60-2 ACOPOS 插入式模块，CPU，兼容x86 100 MHz Intel，16 MB DRAM, 32 kB SRAM，应用软件内存可更换： CompactFlash, 1个CAN接口，1个Profibus DP从站接口，1个RS232接口，3路数字量I/O可配置成24 VDC输入或500 mA输出，1路模拟量输入±10V,另购应用软件内存和0TB708端子排
8AC140.61-3 8AC141.60-2
ACOPOS 插入式模块，CPU，兼容x86 100 MHz Intel，16 MB DRAM, 32 kB SRAM，应用软件内存可更换,CompactFlash，2个CAN接口，1个Ethernet（100 Base-T）接口，1个RS232接口，1个X2X Link主站接口，3路数字量I/O可配置成24 VDC输入或500 mA输出，1路模拟量输入±10V,另购应用软件内存和0TB704  0TB708端子排 8AC141.61-3
ACOPOS伺服驱动器-电缆
8CM005.12-1 电机电缆，长度5 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM007.12-1 电机电缆，长度7 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM010.12-1 电机电缆，长度10 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM015.12-1 电机电缆，长度15 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM020.12-1 电机电缆，长度20 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM025.12-1 电机电缆，长度25 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM005.12-3 电机电缆，长度5 m，4 x 4 mm² + 2 x 2 x 1 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM007.12-3 电机电缆，长度7 m，4 x 4 mm² + 2 x 2 x 1 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM010.12-3 电机电缆，长度10 m，4 x 4 mm² + 2 x 2 x 1 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM015.12-3 电机电缆，长度15 m，4 x 4 mm² + 2 x 2 x 1 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM020.12-3 电机电缆，长度20 m，4 x 4 mm² + 2 x 2 x 1 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM025.12-3 电机电缆，长度25 m，4 x 4 mm² + 2 x 2 x 1 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM005.12-5 电机电缆，长度5 m，4 x 10 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM007.12-5 电机电缆，长度7 m，4 x 10 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM010.12-5 电机电缆，长度10 m，4 x 10 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM015.12-5 电机电缆，长度15 m，4 x 10 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM020.12-5 电机电缆，长度20 m，4 x 10 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM025.12-5 电机电缆，长度25 m，4 x 10 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM005.12-8 电机电缆，长度5 m，4 x 35 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM007.12-8 电机电缆，长度7 m，4 x 35 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM010.12-8 电机电缆，长度10 m，4 x 35 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM015.12-8 电机电缆，长度15 m，4 x 35 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM020.12-8 电机电缆，长度20 m，4 x 35 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CM025.12-8 电机电缆，长度25 m，4 x 35 mm² + 2 x 2 x 1.5 mm²，电机端8-芯连接插座，可用于电缆拖链，符合UL/CSA标准
8CE005.12-1 EnDat 电缆，长度 5 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE007.12-1 EnDat 电缆，长度 7 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE010.12-1 EnDat 电缆，长度 10 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE015.12-1 EnDat 电缆，长度 15 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE020.12-1 EnDat 电缆，长度 20 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE025.12-1 EnDat 电缆，长度 25 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CR005.12-1 旋变电缆，长度5 m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
8CR007.12-1 旋变电缆，长度7 m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
8CR010.12-1 旋变电缆，长度10 m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
8CR015.12-1 旋变电缆，长度15 m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
8CR020.12-1 旋变电缆，长度20 m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
8CR025.12-1 旋变电缆，长度25 m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
ACOPOSmulti伺服驱动器-再生线圈
8BVR0110H100.100-1 ACOPOSmulti 再生线圈 15A, 480V, 端子
8BVR0440H100.101-2 ACOPOSmulti 再生线圈 44A, 480V, 端子
8BVR0880H100.100-1 ACOPOSmulti 再生线圈 89A, 480V, 端子
ACOPOSmulti伺服驱动器-逆变模块
8BVI0014HWS0.000-1 ACOPOSmulti 逆变模块 1.4A,HV,柜内安装
8BVI0028HWS0.000-1 ACOPOSmulti 逆变模块 2.8A,HV,柜内安装
8BVI0055HWS0.000-1 ACOPOSmulti 逆变模块 5.5A,HV,柜内安装
8BVI0110HWS0.000-1 ACOPOSmulti 逆变模块 11A,HV,柜内安装
8BVI0014HCS0.000-1 ACOPOSmulti 逆变模块 1.4A, HV, 冷却板或穿墙式安装
8BVI0028HCS0.000-1 ACOPOSmulti 逆变模块 2.8A, HV, 冷却板或穿墙式安装
8BVI0055HCS0.000-1 ACOPOSmulti 逆变模块 5.5A, HV, 冷却板或穿墙式安装
8BVI0110HCS0.000-1 ACOPOSmulti 逆变模块 11A, HV, 冷却板或穿墙式安装
8BVI0014HWD0.000-1 ACOPOSmulti 逆变模块 1.4A,HV,柜内安装,2个轴
8BVI0028HWD0.000-1 ACOPOSmulti 逆变模块 2.8A,HV,柜内安装,2个轴
8BVI0055HWD0.000-1 ACOPOSmulti 逆变模块 5.5A,HV,柜内安装,2个轴
8BVI0014HCD0.000-1 ACOPOSmulti 逆变模块 1.4A, HV, 冷却板或穿墙式安装,2个轴
8BVI0028HCD0.000-1 ACOPOSmulti 逆变模块 2.8A, HV, 冷却板或穿墙式安装,2个轴
8BVI0055HCD0.000-1 ACOPOSmulti 逆变模块 5.5A, HV, 冷却板或穿墙式安装,2个轴
8BVI0440HWS0.000-1 ACOPOSmulti 逆变模块 44A,HV,柜内安装
8BVI0220HCS0.000-1 ACOPOSmulti 逆变模块 22A, HV, 冷却板或穿墙式安装
8BVI0440HCS0.000-1 ACOPOSmulti 逆变模块 44A, HV,  冷却板或穿墙式安装
8BVI0880HWS0.000-1 ACOPOSmulti 逆变模块 88A, HV, 柜内安装
8BVI0880HCS0.000-1 ACOPOSmulti 逆变模块 88A, HV, 冷却板或穿墙式安装
ACOPOSmulti伺服驱动器-扩展模块
8BVE0500HW00.000-1 ACOPOSmulti扩展模块 50A, HV, 柜内安装
8BVE0500HC00.000-1 ACOPOSmulti扩展模块 50A, HV, 冷却板或穿墙式安装
ACOPOSmulti伺服驱动器-进线滤波器
8BVF0110H000.000-1 ACOPOSmulti 进线滤波器 15A, 480V
8BVF0440H000.001-2 ACOPOSmulti 进线滤波器 44A, 480V, 增强的电流峰值负载能力
8BVF0880H000.000-1 ACOPOSmulti 进线滤波器 89A, 480V
ACOPOSmulti伺服驱动器-附件（电缆、端子排、屏蔽套件）
8BCM0005.1111A-0 电机电缆，长度5 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0007.1111A-0 电机电缆，长度7 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0010.1111A-0 电机电缆，长度10 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0015.1111A-0 电机电缆，长度15 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0020.1111A-0 电机电缆，长度20 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0025.1111A-0 电机电缆，长度25 m，4 x 1.5 mm² + 2 x 2 x 0.75 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0005.1311A-0 电机电缆,长度 5 m,4 x 4 mm² + 2 x 2 x 1 mm²,speedTEC® 接头8-芯插座(size 1), 构造类型 1, 线头套管,屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0007.1311A-0 电机电缆,长度 7 m,4 x 4 mm² + 2 x 2 x 1 mm²,speedTEC® 接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0010.1311A-0 电机电缆，长度10 m，4 x 4 mm² + 2 x 2 x 1 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0015.1311A-0 电机电缆，长度15 m，4 x 4 mm² + 2 x 2 x 1 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8BCM0020.1311A-0 电机电缆，长度20 m，4 x 4 mm² + 2 x 2 x 1 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合cURus标准
8BCM0025.1311A-0 电机电缆，长度25 m，4 x 4 mm² + 2 x 2 x 1 mm²，speedTEC®接头8-芯插座(size 1), 构造类型 1, 线头套管, 屏蔽夹, 可用于电缆拖链，符合UL/CSA标准
8CE005.12-1 EnDat 电缆，长度 5 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE007.12-1 EnDat 电缆，长度 7 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE010.12-1 EnDat 电缆，长度 10 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE015.12-1 EnDat 电缆，长度 15 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE020.12-1 EnDat 电缆，长度 20 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CE025.12-1 EnDat 电缆，长度 25 m，10 x 0.14 mm² + 2 x 0.5 mm²，EnDat 插头 17-芯连接插座，伺服连接15-芯DSUB插头，可用于电缆拖链，符合UL/CSA标准
8CR005.12-1 旋变电缆，长度5m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头，可用于电缆拖链，符合UL/CSA标准
8CR007.12-1 旋变电缆，长度7m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头， 可用于电缆拖链，符合UL/CSA标准
8CR010.12-1 旋变电缆，长度10m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头， 可用于电缆拖链，符合UL/CSA标准
8CR015.12-1 旋变电缆，长度15m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头， 可用于电缆拖链，符合UL/CSA标准
8CR020.12-1 旋变电缆，长度20m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头， 可用于电缆拖链，符合UL/CSA标准
8CR025.12-1 旋变电缆，长度25m，3 x 2 x 24 AWG/19，旋变插头 12-芯连接插座，伺服插头9-芯插头， 可用于电缆拖链，符合UL/CSA标准
8TB2104.2010-00 旋入式端子4芯,1行RM5.08 标签 1: 连续编号
8TB2104.203F-00 旋入式端子4芯,3行RM5.08 标签 1: T- T+ B- B+, 代码 F: 0101
8TB2104.203L-00 旋入式端子4芯,3行RM5.08 标签 3: T- T+ B- B+, 代码 L: 1010
8TB2104.204A-00 旋入式端子4芯,1行RM5.08 标签 4: T- T+ F- F+, 代码 A: 0000
8TB3102.201C-10 旋入式端子2芯,1行RM7.62 标签 1: 连续编号，代码C：10
8TB3104.201H-10 旋入式端子4芯,1行RM7.62 标签 1: 连续编号,代码 H: 0111
8TB3104.201M-10 旋入式端子4芯,1行RM7.62 标签 1: 连续编号,代码 M: 1011
8TB3104.204G-00 旋入式端子4芯,4行RM7.62 标签 1: PE W V U,代码 G: 0110
8TB3104.204K-00 旋入式端子4芯,4行RM7.62 标签 1: PE W V U,代码 K: 1001
8TB4104.202N-10 旋入式端子4芯,1行RM10.16 标签 2: L1 L2 L3 PE, 代码 N: 1100
8TB4104.206D-10 旋入式端子4芯,1行RM10.16 标签 2: L1´ L2´ L3´ PE, 代码 D: 0011
8TB2106.2010-00 旋入式端子6芯,1行RM5.08 标签 1: 连续编号
8TB4103.203C-10 旋入式端子3芯,1行RM10.16 标签 3：+DC -DC PE，代码 C：010
8TB2108.2010-00 旋入式端子8芯,1行RM5.08 标签 1: 连续编号
8TB4104.202L-10 旋入式端子4芯,1行RM10.16 标签 2：L1 L2 L3 PE，代码 L：1010
8TB2112.2010-00 旋入式端子12芯,1行RM5.08 标签 1: 连续编号
8TB4104.204G-00 旋入式端子4芯,1行RM10.16 标签4：PE W V U，代码 G：0110
8TB4104.204G-10 旋入式端子4芯,1行RM10.16 标签4：PE W V U，代码 G：0110
8SCS000.0000-00 屏蔽部件包括:  1个屏蔽板1x type 0,2个弹簧垫片,W 9 mm, D 12-22 mm
8SCS001.0000-00 屏蔽部件包括:  1个屏蔽板4x type 1,1个弹簧垫片,W 9mm, D 12-22mm
8SCS002.0000-00 屏蔽部件包括:  1个弹簧板,2个弹簧D 4-13.5 mm,2个螺丝钉
8SCS003.0000-00 屏蔽部件包括:  1个屏蔽安装板,4x, 45°, 8个螺丝钉
8SCS004.0000-00 屏蔽部件包括:  1个屏蔽板4x type 0,2个弹簧垫片,W 9 mm, D 32-50 mm
8SCS005.0000-00 屏蔽部件包括:  1个带屏蔽层的槽盖
8SCS007.0000-00 8SCS008.0000-00
ACOPOSmulti伺服驱动器-辅助电源模块
8B0C0160HW00.000-1 ACOPOSmulti 辅助电源模块 16A,HV,柜内安装
8B0C0160HW00.001-1 ACOPOSmulti 辅助电源模块 16A,HV,柜内安装,24VOut 1x16A, 1x5A
8B0C0160HC00.000-1 ACOPOSmulti 辅助电源模块 16A,HV, 冷却板或穿墙式安装
8B0C0160HC00.001-1 ACOPOSmulti 辅助电源模块 16A,HV, 冷却板或穿墙式安装,24VOut 1x16A, 1x5A
8B0C0320HW00.000-1 ACOPOSmulti 辅助电源模块 32A,HV,柜内安装
8B0C0320HW00.002-1 ACOPOSmulti 辅助电源模块 32A,HV,柜内安装,24V 1x32A, 1x5A
8B0C0320HC00.000-1 ACOPOSmulti 辅助电源模块 32A, HV, 冷却板或穿墙式安装
8B0C0320HC00.002-1 ACOPOSmulti 辅助电源模块 32A, HV, 冷却板或穿墙式安装,24VOut 1x32A, 1x5A
8B0C0160HC00.A01-1 ACOPOSmulti 辅助电源模块 16A, HV, 冷却板或穿墙式安装,42VOut 1x16A, 1x3A
ACOPOSmulti伺服驱动器-电源模块
8BVP0110HW00.000-1 ACOPOSmulti 电源模块 11A, 800V,柜内安装
8BVP0440HW00.000-1 ACOPOSmulti 电源模块 44A, 800V,柜内安装
8BVP0880HW00.000-1 ACOPOSmulti 电源模块 88A,800V,柜内安装
8BVP0110HC00.000-1 ACOPOSmulti 电源模块 11A, 800V, 冷却板或穿墙式安装
8BVP0440HC00.000-1 ACOPOSmulti 电源模块 44A, 800V, 冷却板或穿墙式安装
8BVP0880HC00.000-1 ACOPOSmulti 电源模块 88A, 800V, 冷却板或穿墙式安装
ACOPOSmulti伺服驱动器-电容器
8B0K1650HW00.000-1 ACOPOSmulti电容器, 1650uF, HV, 柜内安装
8BVE0500HC00.000-1 ACOPOSmulti电容器, 1650uF, HV, 冷却板或穿墙式安装
ACOPOSmulti伺服驱动器-ACOPOSmulti插入式模块
8BAC0120.000-1 ACOPOSmulti 插入式模块，EnDat2.1接口
8BAC0120.001-1 ACOPOSmulti 插入式模块，EnDat2.2接口
8BAC0121.000-1 ACOPOSmulti插入式模块, HIPERFACE接口
8BAC0122.000-1 ACOPOSmulti插入式模块，旋变接口
8BAC0124.000-1 ACOPOSmulti插入式模块，SinCos 接口
ACOPOSmulti伺服驱动器-安装底板
ACOPOSmulti 安装底板带nnnn个槽，HV，柜内安装，75mm² 和 22mm²
贝加莱模拟量输入模块X67AI2744


贝加莱8LSN同步电机特点：
8LSN三相同步电机
8LSN系列三相同步电机是专为需要高转动惯量和定位精度以及紧凑型结构应用而开发的的永磁电子换向同步电机。

NdFeB永磁体
正弦EnDat编码器或旋变器作为反馈单元
三相星型连接
尺寸紧凑，重量轻巧
高转动惯量，保证了优异的闭环控制
高负载能力/峰值扭矩
扭矩脉动低
高速时的高动态扭矩
寿命长，除轴承外所有电机部件免磨损
定子产生的功耗通过外壳直接转移到法兰上
预紧的深沟球轴承两端密封并油脂润滑
采用两个SpeedTEC圆形插头进行电气连接
由ACOPOS伺服驱动器或ACOPOSmulti驱动系统控制

8LSN三相同步电机不能直接与电源连接，它们只能与ACOPOS伺服驱动器或ACOPOSmulti驱动系统组合起来进行工作！
贝加莱模拟量输入模块X67AI2744


贝加莱8LVB减速电机尺寸3：
8LVB33.ee003LjCn00
Motor & gearbox configuration 1187138 configuration 1187138
8LVB33.ee003LjDn00
Motor & gearbox configuration 1187142 configuration 1187142
8LVB33.ee003SjCn00
Motor & gearbox configuration 1187302 configuration 1187302
8LVB33.ee003SjDn00
B1 2.2 Bat ind. 16-line multi-turn without oil seal; DC bus voltage = 80 VDC; brake holding torque: 0.00 Nm angled (swivel); B (self-cooling, construction type B); IP54 protection...
8LVB33.ee004LjCn00
Motor & gearbox configuration 1187146 configuration 1187146
8LVB33.ee004LjDn00
Motor & gearbox configuration 1187147 configuration 1187147
8LVB33.ee004SjCn00
Motor & gearbox configuration 1187304 configuration 1187304
8LVB33.ee004SjDn00
B1 2.2 Bat ind. 16-line multi-turn without oil seal; DC bus voltage = 80 VDC; brake holding torque: 0.00 Nm angled (swivel); B (self-cooling, construction type B); IP54 protection...
8LVB33.ee005LjCn00
Motor & gearbox configuration 1187154 configuration 1187154
8LVB33.ee005LjDn00
Motor & gearbox configuration 1187155 configuration 1187155
8LVB33.ee005SjCn00
Motor & gearbox configuration 1187310 configuration 1187310
8LVB33.ee008LjCn00
Motor & gearbox configuration 1187160 configuration 1187160
8LVB33.ee008LjDn00
Motor & gearbox configuration 1187163 configuration 1187163
8LVB33.ee008SjCn00
Motor & gearbox configuration 1187318 configuration 1187318
8LVB33.ee008SjDn00
Motor & gearbox configuration 1187321 configuration 1187321
8LVB33.ee009LjCn00
Motor & gearbox configuration 1187174 configuration 1187174
8LVB33.ee009LjDn00
Motor & gearbox configuration 1187177 configuration 1187177
8LVB33.ee009SjCn00
Motor & gearbox configuration 1187086 configuration 1187086
8LVB33.ee009SjDn00
Motor & gearbox configuration 1187089 configuration 1187089
8LVB33.ee010LjDn00
Motor & gearbox configuration 1187170 configuration 1187170
8LVB33.ee010SjDn00
Motor & gearbox configuration 1187081 configuration 1187081
8LVB33.ee012LjCn00
Motor & gearbox configuration 1187182 configuration 1187182
8LVB33.ee012LjDn00
Motor & gearbox configuration 1187185 configuration 1187185
8LVB33.ee012SjCn00
Motor & gearbox configuration 1187093 configuration 1187093
8LVB33.ee012SjDn00
Motor & gearbox configuration 1187096 configuration 1187096
8LVB33.ee015LjCn00
Motor & gearbox configuration 1187188 configuration 1187188
8LVB33.ee015LjDn00
Motor & gearbox configuration 1187191 configuration 1187191
8LVB33.ee015SjCn00
Motor & gearbox configuration 1187098 configuration 1187098
8LVB33.ee015SjDn00
Motor & gearbox configuration 1187101 configuration 1187101
8LVB33.ee016LjCn00
Motor & gearbox configuration 1187195 configuration 1187195
8LVB33.ee016LjDn00
Motor & gearbox configuration 1187322 configuration 1187322
8LVB33.ee016SjDn00
Motor & gearbox configuration 1187106 configuration 1187106
8LVB33.ee020LjCn00
Motor & gearbox configuration 1187326 configuration 1187326
8LVB33.ee020LjDn00
Motor & gearbox configuration 1187327 configuration 1187327
8LVB33.ee020SjCn00
Motor & gearbox configuration 1187110 configuration 1187110
8LVB33.ee020SjDn00
Motor & gearbox configuration 1187111 configuration 1187111
8LVB33.ee025LjCn00
Motor & gearbox configuration 1187329 configuration 1187329
8LVB33.ee025LjDn00
B1 2.2 Bat ind. 16-line multi-turn without oil seal; DC bus voltage = 80 VDC; brake holding torque: 0.00 Nm angled (swivel); B (self-cooling, construction type B); IP54 protection...
8LVB33.ee025SjDn00
Motor & gearbox configuration 1187116 configuration 1187116
8LVB33.ee032LjCn00
Motor & gearbox configuration 1187333 configuration 1187333
8LVB33.ee032LjDn00
Motor & gearbox configuration 1187335 configuration 1187335
8LVB33.ee032SjCn00
Motor & gearbox configuration 1187120 configuration 1187120
8LVB33.ee032SjDn00
Motor & gearbox configuration 1187123 configuration 1187123
8LVB33.ee040SjDn00
Motor & gearbox configuration 1187126 configuration 1187126
8LVB33.ee064LjCn00
Motor & gearbox configuration 1187342 configuration 1187342
8LVB33.ee064LjDn00
Motor & gearbox configuration 1187346 configuration 1187346
8LVB33.ee064SjCn00
Motor & gearbox configuration 1187129 configuration 1187129
8LVB33.ee064SjDn00
Motor & gearbox configuration 1187133 configuration 1187133
8LVB33.ee100LjCn00
Motor & gearbox configuration 1187349 configuration 1187349
8LVB33.ee100LjDn00
Motor & gearbox configuration 1187352 configuration 1187352
8LVB33.ee100SjDn00
Motor & gearbox configuration 1187136 configuration 1187136


贝加莱模拟量输入模块X67AI2744

贝加莱8LS同步电机特点：
8LS三相同步电机
8LS系列三相同步电机是专为需要高动态特性和定位精度以及紧凑型结构应用而开发的的永磁电子换向同步电机。

NdFeB永磁体
正弦EnDat编码器或旋变器作为反馈单元
现在可用功能安全编码器
三相星型连接
尺寸紧凑，重量轻巧
良好的转子构造，使转动惯量***小化，保证了优异的动态特性
高负载能力/峰值扭矩
扭矩脉动低
高速时的高动态扭矩
寿命长，除轴承外所有电机部件免磨损
定子产生的功耗通过外壳直接转移到法兰上
预紧的深沟球轴承两端密封并油脂润滑
完整的电机产品线，堵转扭矩范围从0.2 Nm至115 Nm
采用两个SpeedTEC圆形插头进行电气连接
由ACOPOS伺服驱动器或ACOPOSmulti驱动系统控制

8LS三相同步电机不能直接与电源连接，它们只能与ACOPOS伺服驱动器或ACOPOSmulti驱动系统组合起来进行工作！

贝加莱8LS同步电机首选伺服电机类型：
8LSA25.D8060S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 0.600 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 40 mm; j6 A fit...
8LSA25.D8060S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 0.800 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 40 mm; j6 A fit...
8LSA25.D9060S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 0.600 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 40 mm; j6 A fit...
8LSA25.D9060S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 0.600 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 40 mm; j6 fit...
8LSA25.R0060D000-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 6000 rpm stall torque: 0.600 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 40 mm; j6 A fit...
8LSA25.R0060D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 0.600 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 40 mm; j6 A fit...
8LSA25.R0060D200-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 6000 rpm stall torque: 0.600 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 40 mm; j6 A fit...
8LSA25.R0060D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 0.800 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 40 mm; j6 A fit...
8LSA35.DA030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm;...
8LSA35.DA030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.DA060S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.DA060S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.DB030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.DB030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.DB060S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.DB060S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA35.EA030D000-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA030D200-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA060D000-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA060D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA060D200-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EA060D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB030D000-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
贝加莱模拟量输入模块X67AI2744
8LSA35.EB030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB030D200-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB060D000-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB060D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB060D200-0
Synchronous motor; number of pole pairs: 2 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.EB060D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.R2030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; without holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.R2030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.R2060D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA35.R2060D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 2.300 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA37.DA030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 3.600 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DA030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 3.600 Nm; with brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DA060S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 3.600 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DA060S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 3.600 Nm; with brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DB030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 3.600 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DB030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 3.600 Nm; with brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DB060S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 3.600 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.DB060S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 3.600 Nm; with brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 80 mm; j6 A fit...
8LSA37.R2030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 3.600 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA37.R2030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 3.600 Nm; with brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA37.R2060D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 3.600 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA37.R2060D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 6000 rpm stall torque: 3.600 Nm; with brake; smooth shaft; angled connector (swivel); centering diameter 80 mm; j6 A fit...
8LSA44.DA030S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA44.DA060S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA44.DA060S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA44.DB030S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
贝加莱模拟量输入模块X67AI2744
8LSA44.DB030S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA44.DB060S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA44.DB060S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA44.EA030D000-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA030D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA030D200-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA030D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA060D000-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA060D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA060D200-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EA060D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB030D000-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB030D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB030D200-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB030D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB060D000-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB060D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB060D200-0
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.EB060D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.R2030D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.R2030D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.R2060D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA44.R2060D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 6.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA46.DA030S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 10.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.DA030S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 10.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.DA060S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 10.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.DA060S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 10.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.DB030S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 10.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.DB030S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 10.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
贝加莱模拟量输入模块X67AI2744
8LSA46.DB060S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 10.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.DB060S200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 10.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 95 mm; j6 A fit...
8LSA46.R2030D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 10.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA46.R2030D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 10.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA46.R2060D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 10.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA46.R2060D200-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 6000 rpm stall torque: 10.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 95 mm; j6 A fit...
8LSA55.DA030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA55.DA030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA55.DB030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA55.DB030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA55.EA030D000-1
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EA030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EA030D200-1
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EA030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EB030D000-1
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EB030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EB030D200-1
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.EB030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.R2030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA55.R2030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 12.500 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA57.DA030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 20.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA57.DA030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 20.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA57.DB030S000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 20.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA57.DB030S200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 20.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 130 mm; j6 A fit...
8LSA57.R2030D000-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 20.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA57.R2030D200-3
Synchronous motor; number of pole pairs: 4 pairs; nominal speed: 3000 rpm stall torque: 20.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 130 mm; j6 A fit...
8LSA73.DA030S000-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 26.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA73.DA030S200-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 26.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA73.DB030S000-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 26.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA73.DB030S200-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 26.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA73.R2030D000-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 26.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 180 mm; j6 A fit...
8LSA73.R2030D200-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 26.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 180 mm; j6 A fit...
8LSA75.DA030S000-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 40.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA75.DA030S200-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 40.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA75.DB030S000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 40.000 Nm; no brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA75.DB030S200-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 40.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel) single-cable solution; centering diameter 180 mm; j6 A fit...
8LSA75.R2030D000-3
Synchronous motor; number of pole pairs: 5 pairs; nominal speed: 3000 rpm stall torque: 43.000 Nm; no brake; smooth shaft; angled connector (swivel); centering diameter 180 mm; j6 fit...
8LSA75.R2030D200-3
Synchronous motor; number of pole pairs: 3 pairs; nominal speed: 3000 rpm stall torque: 40.000 Nm; motor with holding brake; smooth shaft; angled connector (swivel); centering diameter 180 mm; j6 A fit...
贝加莱模拟量输入模块X67AI2744
