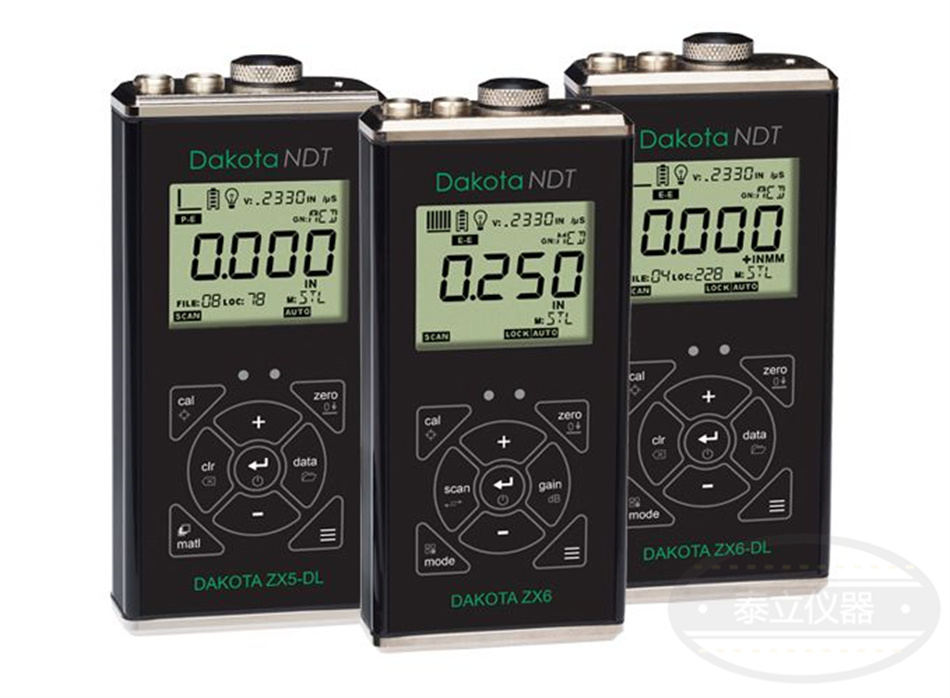

美国Dakota腐蚀测厚仪ZX系列

Dakota ZX 腐蚀测厚仪是基本的测厚仪，使其成为不需要特殊培训即可操作的经济实惠的工具。Dakota ZX系列可进行可重复和可再现的测量，并提供5年制造商保修，让您放心。

ZX腐蚀测厚仪有七种不同的型号。每个测厚仪都为检验员提供了越来越多的功能，从入门级的Dakota ZX1测厚仪到顶级的DakotaZX6-DL腐蚀测厚仪。

每个Dakota ZX测厚仪都是为承受*恶劣的环境而设计的，由挤压铝制成，并配备了液晶屏，以提高阳光下的可见度。

ZX1测厚仪经过预校准，可以测量钢材，使检查员只需将测厚仪从盒子里拿出来即可测量。ZX2为检查员提供了更多预设的校准选项，只需滚动到已知的材料速度，或从腐蚀测厚仪中存储的材料类型列表中选择一种常见材料。

ZX6和ZX6-DL腐蚀计位于ZX系列基本测厚仪的顶部。它们将标准脉冲回波探伤测量模式与多回波穿漆模式相结合，用于具有环氧基涂层的材料，无需去除涂层误差即可消除涂层误差。它们配备了可调增益，以及两种测量模式下的自动时间相关增益。

美国Dakota腐蚀测厚仪ZX系列

Model & Part Number	ZX1	ZX2	ZX3	ZX5	ZX5-DL	ZX6	ZX6-DL
Display Mode
Material thickness digits display
Measurement Range	PE: 0.63 - 914.4mm (0.025 - 36")	PE: 0.63 - 914.4mm (0.025 - 36")	PE: 0.63 - 914.4mm (0.025 - 36")	PE: 0.63 - 914.4mm (0.025 - 36")	PE: 0.63 - 914.4mm (0.025 - 36")	PE: 0.63 - 914.4mm (0.025 - 36") EE: 2.54 - 152.4mm (0.100 - 6.0“)	PE: 0.63 - 914.4mm (0.025 - 36") EE: 2.54 - 152.4mm (0.100 - 6.0“)
Measurement Resolution	0.01mm (0.001”)	0.01mm (0.001”)	0.01mm (0.001”)	0.01mm (0.001”)	0.01mm (0.001”)	0.01mm (0.001”)	0.01mm (0.001”)
Velocity Calibration Range	305 - 18,542m/s (0.0120 - 0.7300in/μs)	305 - 18,542m/s (0.0120 - 0.7300in/μs)	305 - 18,542m/s (0.0120 - 0.7300in/μs)	305 - 18,542m/s (0.0120 - 0.7300in/μs)	305 - 18,542m/s (0.0120 - 0.7300in/μs)	305 - 18,542m/s (0.0120 - 0.7300in/μs)	305 - 18,542m/s (0.0120 - 0.7300in/μs)
Additional Features
Velocity Settings	1 programmable velocity, pre-calibrated for steel	2 user programmable & 8 pre-calibrated velocities for: aluminium, cast iron, plexiglass, polystyrene, polyurethane, PVC, stainless steel & steel
High Speed Scan Mode
Differential Mode
Limit alarm mode
Memory and Data Logging					Sequential data storage, 40 files of 250 readings per file, for 10,000 readings		Sequential data storage, 40 files of 250 readings per file, for 10,000 readings
Transducer Probe Type	Dual element	Dual element	Dual element	Dual element	Dual element	Dual element	Dual element
Transducer Frequency Range	1 - 10MHz	1 - 10MHz	1 - 10MHz	1 - 10MHz	1 - 10MHz	1 - 10MHz	1 - 10MHz
V-path / dual path error correction	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
Probe Zero	Manual (via integrated probe disk)	Manual (via integrated probe disk)	Manual (via integrated probe disk)	Manual (via integrated probe disk)	Manual (via integrated probe disk)	Manual (via integrated probe disk)	Manual (via integrated probe disk)
Display	12.7mm (1/2") 4.5 digit LCD	12.7mm (1/2") 4.5 digit LCD	12.7mm (1/2") 4.5 digit LCD	12.7mm (1/2") 4.5 digit LCD	12.7mm (1/2") 4.5 digit LCD	12.7mm (1/2") 4.5 digit LCD	12.7mm (1/2") 4.5 digit LCD
Units (selectable)	mm or inches	mm or inches	mm or inches	mm or inches	mm or inches	mm or inches	mm or inches
LED Backlight	on/off/auto	on/off/auto	on/off/auto	on/off/auto	on/off/auto	on/off/auto	on/off/auto
Repeatability / Stability Indicator

技术规范

Part Number	Description	Certificate
Z-300-0003	Dakota ZX1 Thickness Gauge (ZX-1)
Z-301-0003	Dakota ZX2 Thickness Gauge (ZX-2)
Z-302-0003	Dakota ZX3 Thickness Gauge (ZX-3)
Z-303-0003	Dakota ZX5 Thickness Gauge (ZX-5)
Z-304-0003	Dakota ZX5-DL Thickness Gauge (ZX-5DL)
Z-305-0003	Dakota ZX6 Thickness Gauge (ZX-6)
Z-306-0003	Dakota ZX6-DL Thickness Gauge (ZX-6DL)
Operating Temperature	-30 to 75ºC (-22 to 167ºF)
Power Supply	2 x AA batteries
Battery Life	Alkaline – 45 hrs and Nicad – 23 hrs
Gauge Weight	312g (11oz) - including batteries
Gauge Dimensions	63.5 x 131 x 31.5mm (2.5 x 5.17 x 1.24”)
Packing List	Unit, Selectable Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges. PC software available for download from our website.

●校准证书作为标准提供

工厂校准可追溯到NIST和MIL-STD-45662A

品牌：	美国DAKOTA
型号：	1-6
加工定制：	否
测量范围：	0.63 - 914.4 mm
测量误差：	0.1mm+0.5%
测量分辨率：	0.01mm
数据存储：	1000000
工作频率：	1 - 10 MHz
