如下为我司爱泽工业IZE_Industries本月到货BAILEY BIRKETT相关产品，欢迎致电索取样本资料和产品信息。

BAILEY安全泄压阀70752EL


BAILEY安全泄压阀707-12VD

BAILEY减压阀1C/202422/C


BAILEY减压阀2044-80-0.7-7.0

BIRKETT安全泄压阀2J3H2111Z0/GP


BIRKETT安全泄压阀1D2H2311Z0/GP



BAILEY安全泄压阀707系列介绍及选型

Bailey 707安全泄压阀采用顶部导向设计，阀座孔径畅通，提升能力强。这款青铜阀体阀门可选配弹性或金属内件，并可选择螺纹或法兰连接。



Bailey 707已通过BS EN ISO 4126第1部分(BS6759 pt 1:2:3)认证，适用于空气/气体、蒸汽/热水（温度高于 100˚C）和工艺液体。



测试杆可用于在线安全检查，或者，对于需要在排放侧进行耐压密封的工况，例如封闭式排放的液体工况，也可提供密封圆顶。



注意：707取代了型号706、1640B、Pop系列（3373、3376、1643、3373A、3376A）和300系列。



The Bailey 707 Safety Relief Valve encompasses a top guided design, combining an unobstructed seat bore with high lift capability. This bronze bodied valve can be supplied with a resilient or metal trim with a choice of screwed and flanged connections.



The Bailey 707 is certified to BS EN ISO 4126 Part 1 (BS6759 pt 1:2:3) and is suitable for duty on air/gas, steam/hot water (above 100˚C) and process liquid.



Test levers are available for inline safety checking, alternatively a sealed dome can be supplied for service conditions requiring a pressure tight seal on the discharge side, e.g. liquid service with enclosed discharge.



Note: The 707 replaces figure numbers 706, 1640B, Pop ranges (3373, 3376, 1643, 3373A, 3376A), and the 300 series.

BAILEY减压阀G4系列介绍

Bailey G4系列先导式减压阀提供全面的产品组合，用于控制蒸汽、空气和精细工业气体等重要服务。G4系列先导式减压阀是一款自作用式、整体安装的先导式减压阀，设计极其紧凑，功能多样。



• 精确，能够在+/-1⁄2%的范围内调节出口压力。

• 集成先导式，设计极其紧凑。

• 自驱动，无需外部电源。

• 完全平衡，无论入口压力如何波动，都能保持控制稳定性。

• 全启式，*大容量/*小尺寸。

• 可靠关闭，确保无泄漏运行。

• 可调比，多种尺寸、材质和连接方式可供选择。

• 互换性，许多部件可在各种类型和尺寸之间互换，因此易于调整，适用于金属/软阀座、高压/低压应用。

• PED，所有阀门均完全符合PED标准。



The Bailey ‘G4’ Series of pilot operated pressure reducing valves offers a comprehensive range for control of vital services such as steam, air and fine industrial gases.The ‘G4’ is a self acting, integral mounted pilot operated pressure reducing valve, which is designed to be extremely compact and versatile.



 • Accuracy,capable of regulating outlet pressure within +/-1⁄2%.

 • Integral pilot, extremely compact design.

 • Self actuated, no external power source required.

 • Fully balanced, stability of control regardless of inlet pressure fluctuations.

 • Full lift capability, maximum capacity/minimum size.

 • Positive shut off, ensures leak free operation.

 • Rangeability, wide choice of sizes, materials and connections.

 • Interchangeability, many components are interchangeable between the various types and sizes, therefore easily adapted, metal/soft seats,  high/low pressure.

 • PED,all valves are in full compliance with the PED.

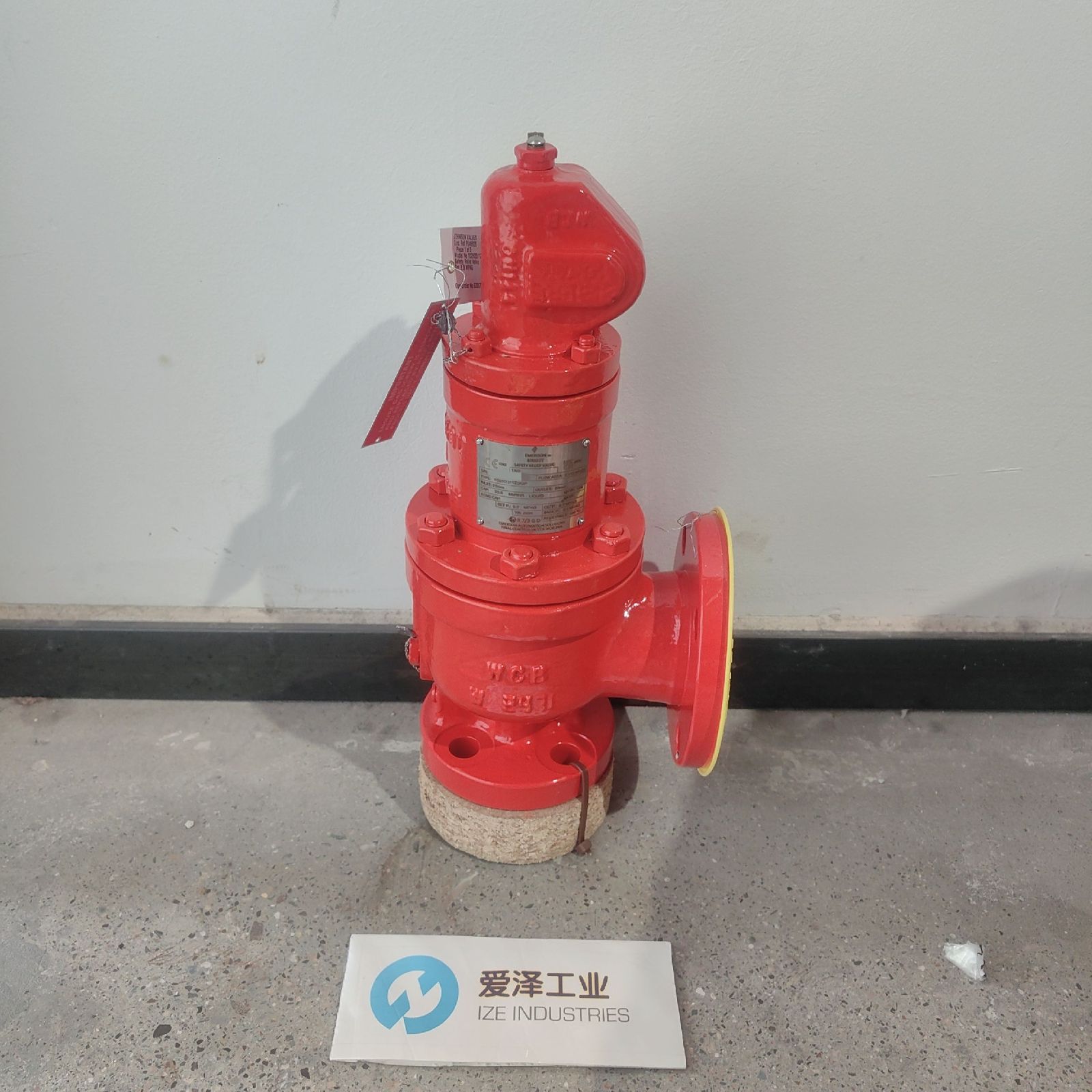

BIRKETT安全泄压阀WB系列

弹簧式安全泄压阀采用全行程和全喷嘴设计，可安全释放各种工艺容器中的过压。



• 全喷嘴、全行程设计，提供高流量系数和高容量。

• 多种材质可选，为各种应用提供解决方案。

• 轻量化结构降低搬运和运输成本，并有利于海上作业。

• 阀座泄漏完整性设计，*大限度地减少逸散性排放。

• 可互换零件，可轻松从气液转换，从传统阀体转换为波纹管。

• 现场测试能力，降低维护成本。

• 零件数量减少，*大程度减少库存，降低维护成本。

• 阀门符合 API 526 压力/温度范围、节流面积和尺寸标准。



Spring loaded safety relief valves with a full lift and full nozzle to relieve excess pressure safely in a variety of process vessels



• Full nozzle, full lift provides high discharge coefficients and high capacities.

• Wide range of materials provides solutions for any application.

• Lightweight construction reduces handling and shipping costs and benefits offshore service.

• Seat leakage integrity minimizes fugitive emissions.

• Interchangeable parts enable simple modification from gas to liquid and conventional to bellows.

• In-situ testing capability reduces maintenance costs.

• Reduced number of parts minimizes inventory and reduces maintenance costs.

• Valves conform to API 526 pressure/ temperature ranges, orifice areas and dimensions.





BAILEY BIRKETT泄压阀常用型号：

BAILEY 0337-H01ANM-50

BAILEY 0337-H60ANE-50

BAILEY 0337-J60ANE-65

BAILEY 0337-J60ANM-65

BAILEY 0337-K01ANE-80

BAILEY 0337-K01ANM-80

BAILEY 1C/202422/C

BAILEY 2044-100-0.7-7.0

BAILEY 2044-100-2.8-10.5

BAILEY 2044-65-0.7-7.0

BAILEY 2044-65-2.8-10.5

BAILEY 2044-80-0.7-7.0

BAILEY 2044-80-0.7-7.0

BAILEY 2044-80-2.8-10.5

BAILEY 2B/571422/P

BAILEY 2H3H4211A2/D

BAILEY 480-20

BAILEY 480-25

BAILEY 480-40

BAILEY 480-50

BAILEY 616D-DN40

BAILEY 616D-DN50

BAILEY 70752EL

BAILEY 716T-20

BAILEY 716T-50

BAILEY 726-50-S-6.7-10.0

BAILEY 746-100-OPEN

BAILEY 746-25-OPEN

BAILEY 746-40-OPEN

BAILEY 746-80-OPEN

BAILEY G4-2042OV

BAILRY 70711ED

BAILRY 70711EL

BAILRY 70711MD

BAILRY 70711ML

BAILRY 70711VD

BAILRY 70711VL

BAILRY 70712ED

BAILRY 70712EL

BAILRY 70712MD

BAILRY 70712ML

BAILRY 70712VD

BAILRY 70712VL

BAILRY 70766MD

BAILRY 70766ML

BAILRY 70766VD

BAILRY 70766VL

BAILRY 70767EL

BAILRY 70767MD

BAILRY 70767ML

BAILRY 70767VD

BAILRY 70767VL

BIRKETT 1D2H2111Z0/GP

BIRKETT 1D2H2311Z0/GP

BIRKETT 1D2H2311Z0/PG

BIRKETT 1D2H3311Z2/CG

BIRKETT 1D2H4111A2/DS

BIRKETT 1D2H431110/D

BIRKETT 1D2H4311A0D

BIRKETT 1D2P2310Z9/1D

BIRKETT 2J3H2111Z0/GP



如果您需要完整的BAILEY BIRKETT的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
