如下为我司爱泽工业IZE_Industries本月到货BWF相关产品，欢迎致电索取样本资料和产品信息。

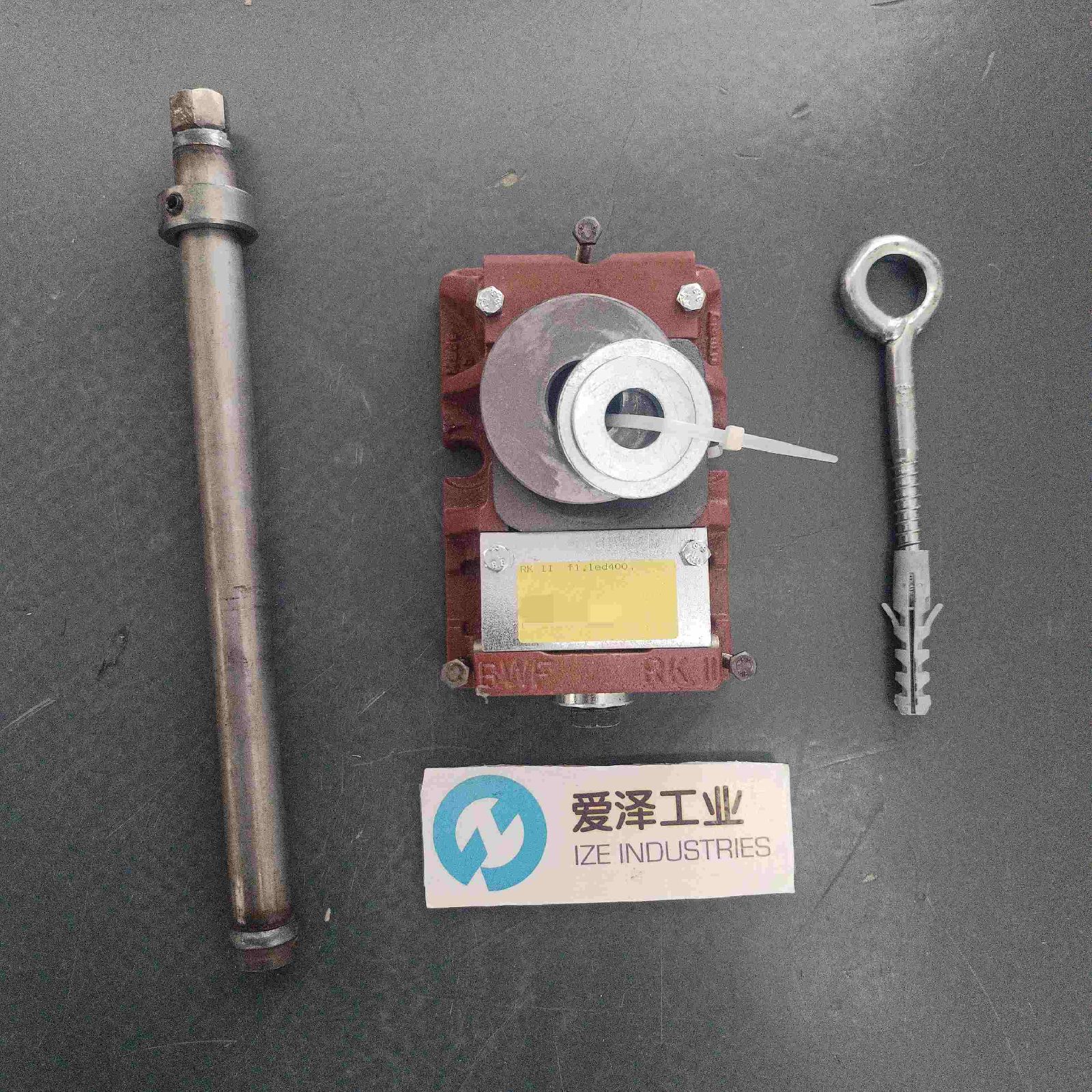

BWF固定器RK II

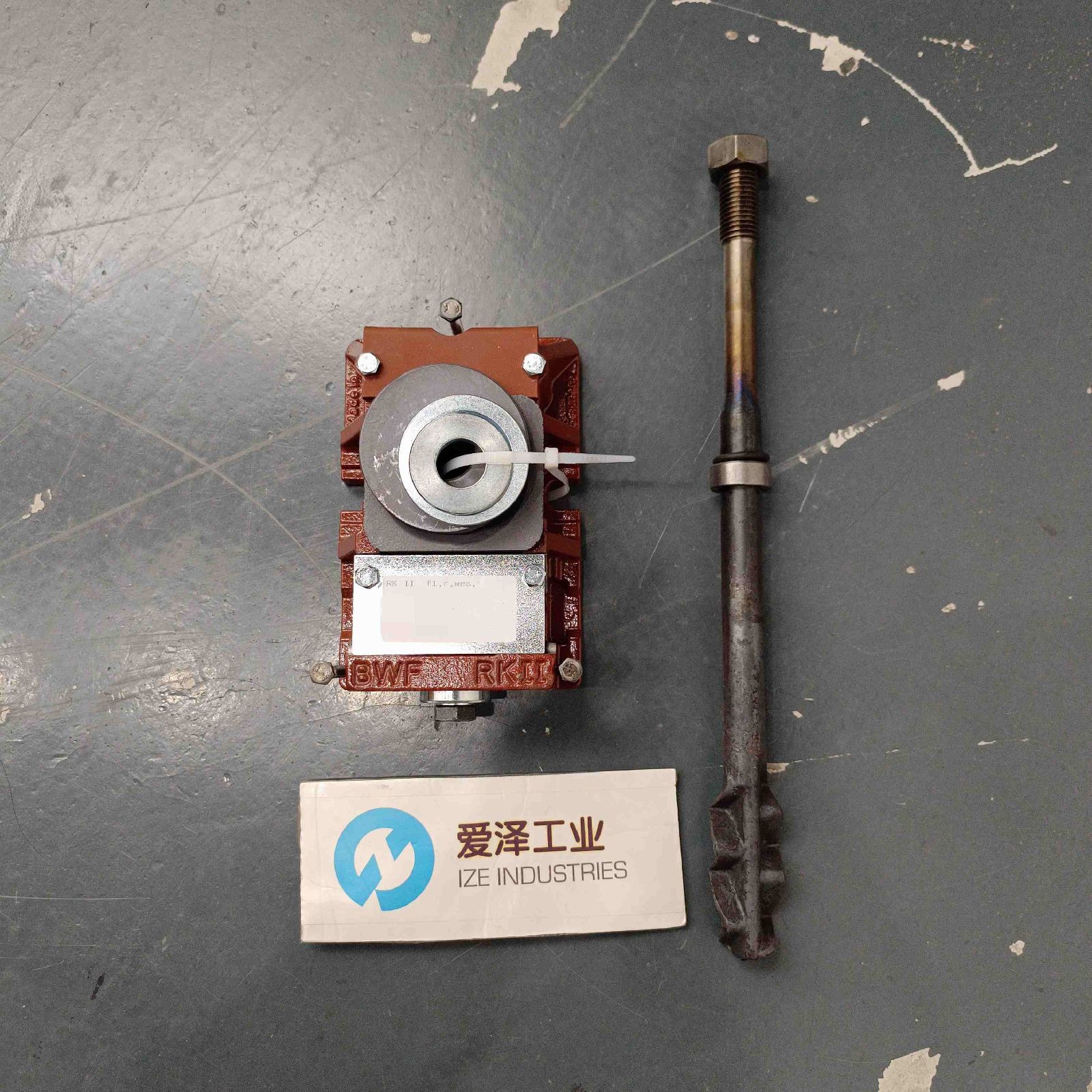

BWF固定器RK I

BWF固定器RK系列介绍

BW-Fixators® RK系列固定器操作简便，调节精准。例如，车床的对准时间将显著缩短。如果由于地基移动或收缩需要重新调整机器，操作简便快捷。RK系列固定器配备多种附件和锚固方式，可以满足大多应用需求。

BW-Fixators® RK系列固定器符合行业规定的所有要求、条件和性能。所有承重和活动部件，包括导向面，均采用优质灰铸铁片制成。为确保这些部件经久耐用，并经过二硫化钼处理。

BW-Fixators® of series RK are easy to operate and precise in adjustment. The time for the alignment of e.g. a lathe will be reduced significant. If the machines needs to be re-adjusted because of foundation shifting or shrinkage, it can be done simply and fast. With a wide range of accessory and anchoring methods the series RK covers nearly any application.

BW-Fixators® of series RK fulfil all requierments, conditions and properties appointed by the industry. All load-bearing and moveable parts including guiding surfaces are made from high-quality lamellar grey cast iron. To ensure the smooth handling of this parts over years, they are treated with molybdenum disulfide.

BWF固定器LK系列介绍

BW-Fixators® LK 系列产品专为机器的抗振动和松动对准而设计。其 10 毫米的超长调节范围可轻松补偿不平整的表面。

该系列产品提供两种尺寸，承载能力从 30,000 N 到 55,000 N 不等。

调节操作简便，且安全可靠，可防止意外调整（例如振动引起的调整）。BW-Fixators® 的应用可通过多种不同的变体进行定制。不同的隔振板，例如由多层黄麻织物与高压特殊沥青混合制成的隔振板或由聚氨酯制成的隔振板，均可实现抗振动对准。

机器对准时间将显著缩短。如果由于地基移动或收缩需要重新调整机器，则可轻松快速地完成。

对准可采用松动方式或使用不同的锚固件。

The BW-Fixators® of series LK have been invented especially for the anti-vibrant and loose alignment of machines. Due to a exceedingly long setting range of 10 mm uneven surface can be compensated easily.

With this series are two sizes availabe with load values from 30.000 N up to 55.000 N.

The adjustment is easy in opertation and safe from unintentional adjustment (e.g. vibration). The applications of these BW-Fixators® can be customized by a lot of diffrent variants. Diffrent isolation plates, made from multiple layers jute fabric combined with special bitumen under high pressure or isolation plates made of polyurethane allow the anti-vibrant alignment.

The time for the alignment of your machine will be reduced significant. If the machines needs to be re-adjusted because of foundation shifting or shrinkage, it can be done simply and fast.

The alignment can be done loose or with diffrent anchors.

BWF固定器LS系列介绍

BW-Fixators® LS系列固定件尤其适用于简易型机械和附加组件。由于其30毫米的超长调节范围，因此应用范围非常广泛。

LS系列固定件的常见应用包括托盘工作台、工具更换器或供料单元等附加组件。

除了坚固的结构和超长的调节范围外，LS系列固定件还提供多种安装方式。它们可以通过螺钉固定、穿透固定，甚至可以焊接。由于结构紧凑，这些BW-Fixators®固定件非常经济高效。

BW-Fixators® series LS work well especially with easy machines and additional aggregates. But because of the extra long setting range of 30 mm they are applicable wide-ranged.

Common applications of series LS are additional aggregates such as palett tables, tool changers or supply units.

Besides the solid construction and the extra long settng range the series LS feature a wide range of mounting options. They can be screwed on or through or they even can be welded. Because of the compact construction these BW-Fixators® are very cost-efficient.

BWF固定器常用型号：

BWF RK I f·p·due

BWF RK I f·p·wes

BWF RK I f·p·wes·les

BWF RK I g·c·d·ste

BWF RK I g·c·p·ste·le

BWF RK I g·d·m·p·ste

BWF RK I GA,f1,frot,le970

BWF RK II f·p·due

BWF RK II f·p·wes

BWF RK II f·p·wes·les

BWF RK II g·c·d·ste

BWF RK II g·c·p·ste·le

BWF RK II g·d·m·p·ste

BWF RK II GA,f1,led340

BWF RK II GA,f1,led400

BWF RK II GA,f1,r,wes

BWF RK II GA,f1,r,wes,led

BWF RK II GA,f1,r,wes,led1800

BWF RK III f·p·due

BWF RK III f·p·wes

BWF RK III f·p·wes·les

BWF RK III g·c·d·ste

BWF RK III g·c·p·ste·le

BWF RK III g·d·m·p·ste

BWF RK IV

BWF RK V

BWF RK VI

BWF EK II GA,f1

如果您需要完整的BWF的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
