现货美国Transcell FAK-3kg FAK-6kg FAK-10kg FAK-12kg单点传感器
产品品牌：美国传力/transcell称重传感器
产品型号：FAK-3kg, FAK-6kg, FAK-10kg, FAK-12kg, FAK-15kg, FAK-20kg, FAK-25kg, FAK-30kg, FAK-35kg,
FAK-40kg, FAK-45kg, FAK-60kg, FAK-120kg, FAK-150kg, FAK-200kg
产品类型：单点式传感器|单点式称重传感器|铝质单点式传感器

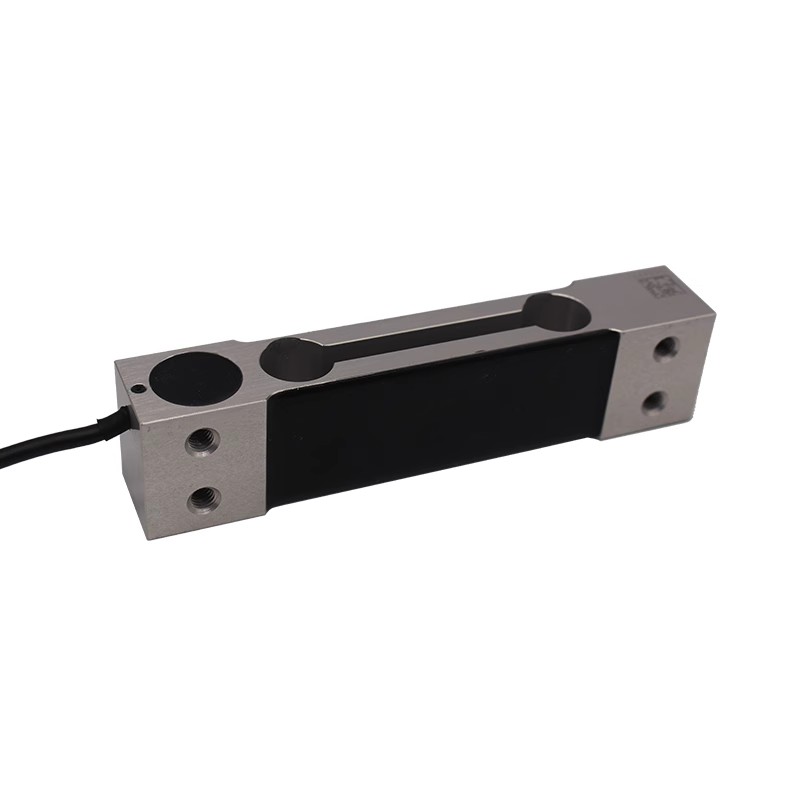

Transcell FAK 单点式称重传感器
Transcell FAK技术参数
●
| Rated Output |
额定输出 |
2.0mV/V ±10% |
| Zero Balance |
零点平衡 |
±3% of rated output |
| Creep after 30 minutes |
蠕变 |
±0.03% of rated output |
| Nonlinearity |
非线性 |
±0.03% of rated output |
| Hysteresis |
滞后 |
±0.03% of rated output |
| Repeatability |
重复性 |
±0.03% of rated output |
| Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/ºC |
| Temp. effect on zero |
零点温漂 |
≤0.002% of rated output/ºC |
| Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
| Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
| Safe Overload |
安全载荷 |
150% |
| Input Impedance |
输入阻抗 |
410 ohm ± 20 ohm |
| Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
| Insulation Resistance |
绝缘阻抗 |
≥5000 M ohm (50V DC) |
| Rated Excitation |
推荐激励电压 |
10V DC/AC |
| Maximum Excitation |
*大激励电压 |
15V DC/AC |
| Cable Length |
导线长度 |
13cm/35cm/275cm |
| Cable Color Code |
导线颜色 |
Red(+E) Black(-E) Green(+S) White(-S) |
