| - 因风机位于中央发挥在上下左右完全抑制噪音的效果，体现了低噪音。 |
| - 因采用门而不需工具可更换过滤器(容易管理) |
| - 因在中央有开关而可方便操作。 |
| - 一台除尘器只要更换过滤器就可同时进行多种工作。 |
| - 因除尘器下部配装滑动式集尘盒而简单回收灰尘。 |
| - 采用用于保护过滤器的金属滤芯。(选项) |

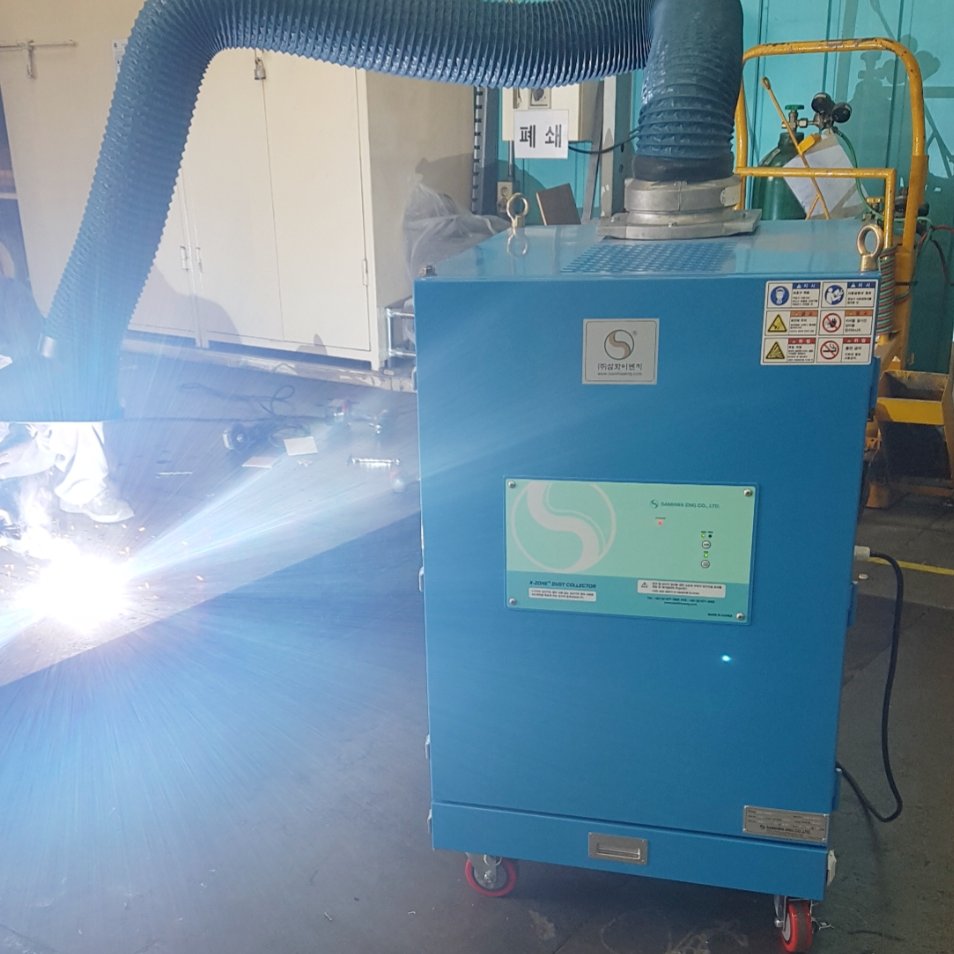

| Use | Welding Fume Dust Collector |
Dust Collector for a Construction Collector |
Oder Deletion Dust Collector |
Welding Fume Dust Collector |
Dust Collector for a Construction on Site |
Oder Deletion Dust Collector |
|
| Type | EFA-200 | EFB-200 | EFS-200 | EFA-300 | EFB-300 | EFS-300 | |
| POWER SOURCE | 220V / 380V 3P 60Hz, 440V(Option), 50Hz(Option) | ||||||
| BLOWER (60HZ) | Airflow(m³/min) | 0 | 25 | 35 | 0 | 40 | 68 |
| Constant Pressure(mmAq) | 280 | 230 | 125 | 260 | 230 | 200 | |
| BLOWER (50HZ) | Airflow(m³/min) | 0 | 20 | 30 | 0 | 35 | 65 |
| Constant Pressure(mmAq) | 190 | 200 | 50 | 180 | 200 | 120 | |
| MOTOR(kW) | 1.5 | 2.2 | |||||
| Dimension | Width(A) | 670mm | |||||
| Length(B) | 682mm | ||||||
| Height(C) | 1,170mm | ||||||
| Flexible Arm | Length/Quantity | 2m x 1SET | 3m x 1SET | ||||
| Diameter | Ø150mm | Ø150mm | |||||
| FILTER | 1st Filter | Demister | Prefilter | Prefilter | Demister | Prefilter | Prefilter |
| 2nd Filter | Rectangular cartridge filter |
Rectangular cartridge filter |
Rectangular cartridge filter |
Rectangular cartridge filter |
Rectangular cartridge filter |
Rectangular cartridge filter |
|
| 3rd Filter | Hepa filter | Hepa filter | ACF filter | Hepa filter | Hepa filter | ACF filter | |
| Bucket Capacity(ℓ) | 17 | ||||||
| Approximate Weight (㎏) | About 70kg | About 80kg | |||||
| 品牌： | SAMHWA |
| 型号： | EFAC-300 |
| 抽吸喉管长度： | 1 mm |
| 抽吸喉管直径： | 1 mm |
| 电压： | 1 v |
| 电源类型： | 1 |
| 容量： | 1 l |
| 额定输入功率： | 1 w |
