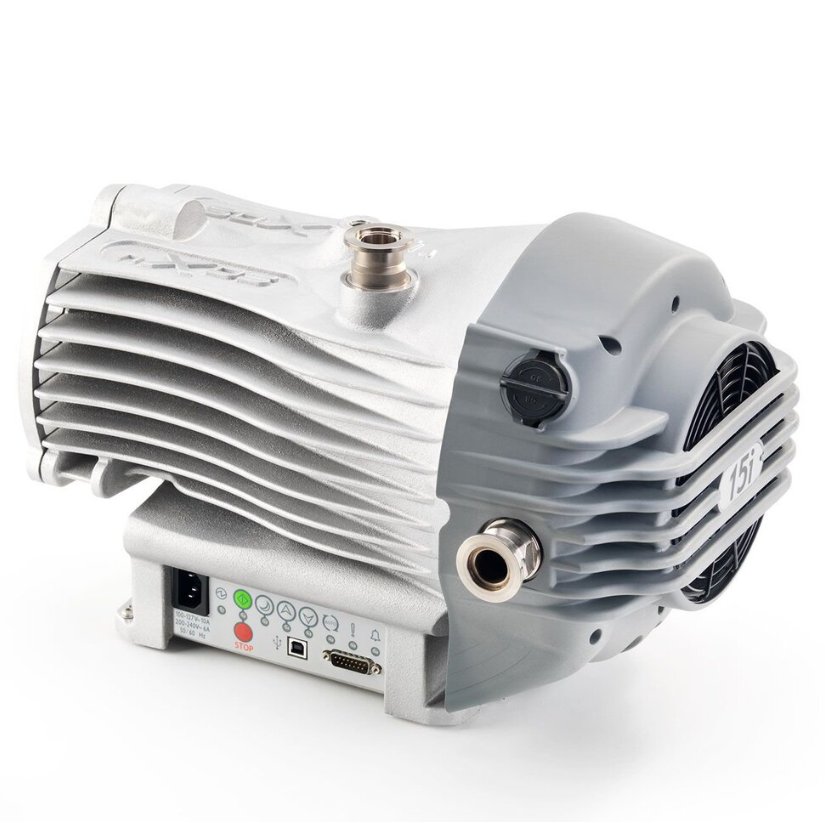

nXDS15i和nXDS10i是我们的主要产品，为大多数科学应用提供小型干泵解决方案。标准型适用于各种各样的应用；r型带空白气体镇流器，c型耐腐蚀。

General Product Information

Connection Vacuum Inlet Flange	DN 25 ISO-KF (NW25)
Weight	25.20
Connection vacuum outlet flange	DN 25 ISO-KF (NW25)
Leak Rate	1.000 × 10⁻⁷
Power Supply Phase	1-Ph
Supply Voltage	1Ph 100-127/200-240V 50/60Hz
Dimension Length	0.432
IP Rating	IP20
Supply Frequency	50 Hz 60 Hz
Dimension Height	0.302
Dimension Width	0.282
Connection Power	IEC EN60320 C14 - Male (for C13 plug on mains cable)
Noise Level	52.00 db(A)
Cooling Method	Air Cooling (forced - fan)
Vibration Level Velocity (rms)	4.500 × 10⁻³ m/s
connectionVacuumFlangeCombined	DN 25 ISO-KF (NW25) / DN 25 ISO-KF (NW25)
Accessories Scope Of Supply	This product does not include the reuqired mains power cable for each specific region. This cable has to be additionally selected from the list of suitable accessories. Check out the gas ballast and filter accessories to operate your poducts reliably under all application conditions.
dimensionComments	The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models.

Performance Data

Pressure Water Vapour Max.	26.25
Capacity Water Vapour	6.111 × 10⁻⁵
pressureUltimateWithGasBallast	0.030
Pressure Ultimate	5.250 × 10⁻³
Rotational Speed Nominal	1800.00
Power at Atmosphere	560.00
Power at Ultimate (Quiescent)	300.00
Pumping Speed Nominal	15.10
powerAtUltimateWithGb	390.00

Operation Conditions - Limitations

Pressure Inlet Continous Max.	150.01
Altitude Max.	2000.00
pressureOutletMaxContinous	750.06

品牌：	Edwards
材质：	不锈钢
驱动方式：	电动
流量：	15.1 m3/h
性能：	自动
叶轮数目：	多级
扬程：	2000 m
转速：	1800 rpm
